Home >> Nissan-Datsun >> 2006 >> Sentra SE-R Spec V >> Repair and Diagnosis >> Transmission >> Manual Transmission >> RS5F70A >> Transaxle Assembly >> Removal and Installation >> Notes

Removal and Installation: Notes

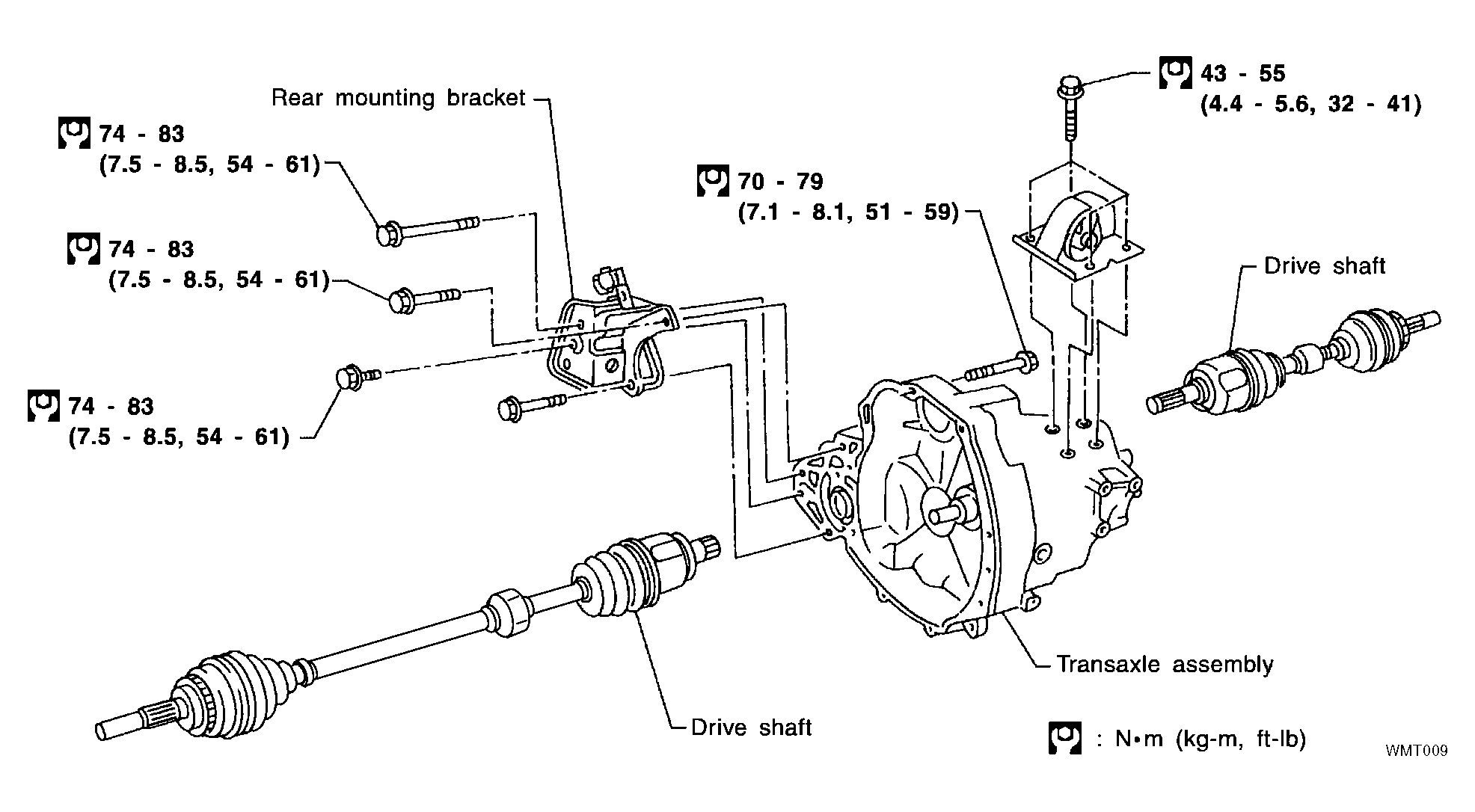

Fig 1: Transaxle Assembly With Torque Specifications

G04192440

Courtesy of NISSAN MOTOR CO., U.S.A.
