Removal and Installation: Installation
Installation is in the reverse order of removal.
- Tighten the starter motor bolts to specification.
Starter motor bolts: 31 - 42 N.m (3.2 - 4.3 kg-m, 23 - 31 ft-lb)
- Tighten the LH and rear mounts to specification. Refer to "REMOVAL AND INSTALLATION ".

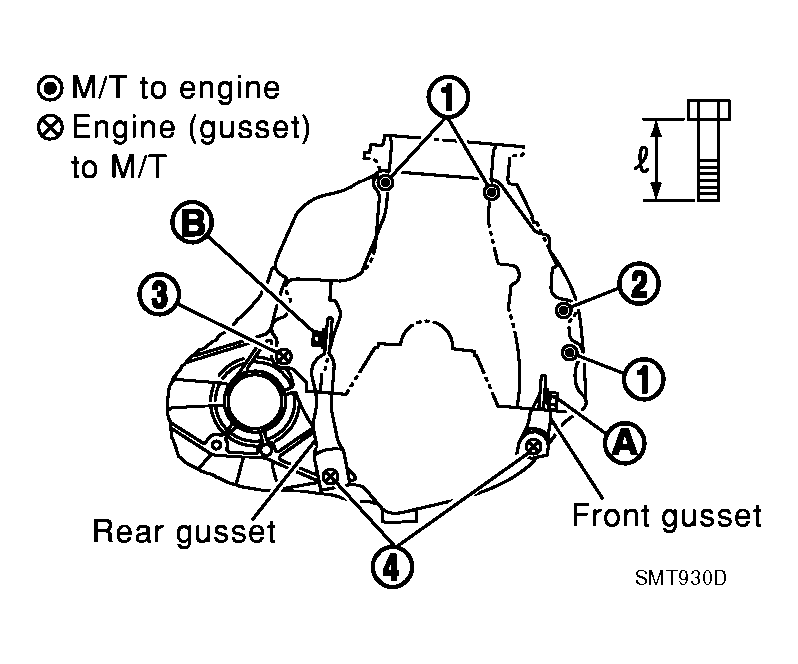

- Tighten the transaxle to engine bolts to specification.
TIGHTENING TORQUE SPECIFICATION
| Bolt No. | Tightening torque N.m (kg-m, ft-lb) |
"l" mm (in) | ||
|---|---|---|---|---|
| 1 | 30 - 40 (3.1 - 4.1, 22 - 30) | 70 (2.76) | ||
| 2 | 30 - 40 (3.1 - 4.1, 22 - 30) | 80(3.15) | ||
| 3 | 30 - 40 (3.1 - 4.1, 22 - 30) | 30(1.18) | ||
| 4(1) | 16 - 21 (1.6 - 2.1, 12 - 15) | 25 (0.98) | ||
| Front gusset A to engine | 30 - 40 (3.1 - 4.1, 22 - 30) | 20 (0.79) | ||
| Rear gusset B to engine | 16 - 21 (1.6 - 2.1, 12 - 15) | 16 (0.63) | ||
|
||||
