Transaxle Case

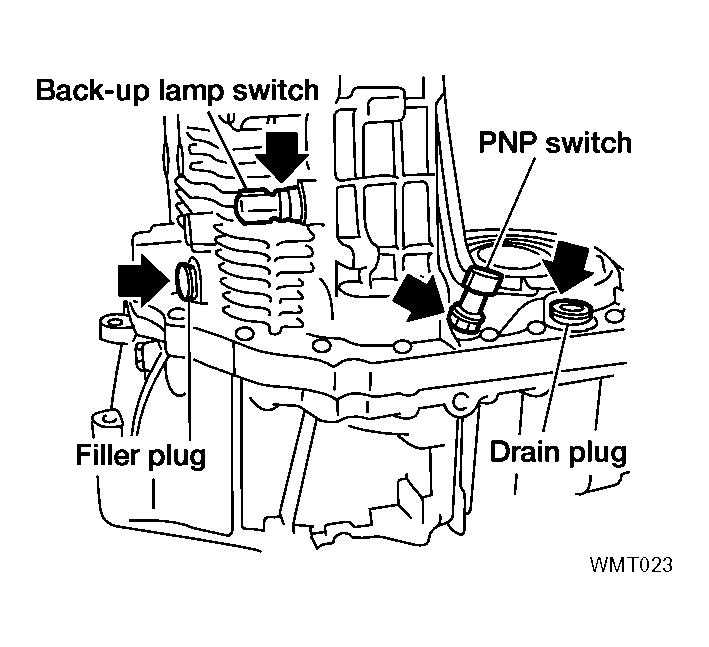

Remove the back-up lamp switch, PNP switch, drain plug, and filler plug from the transaxle case.

Fig 1: Removing Back-Up Lamp Switch, PNP Switch, Drain Plug And Filler Plug From Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

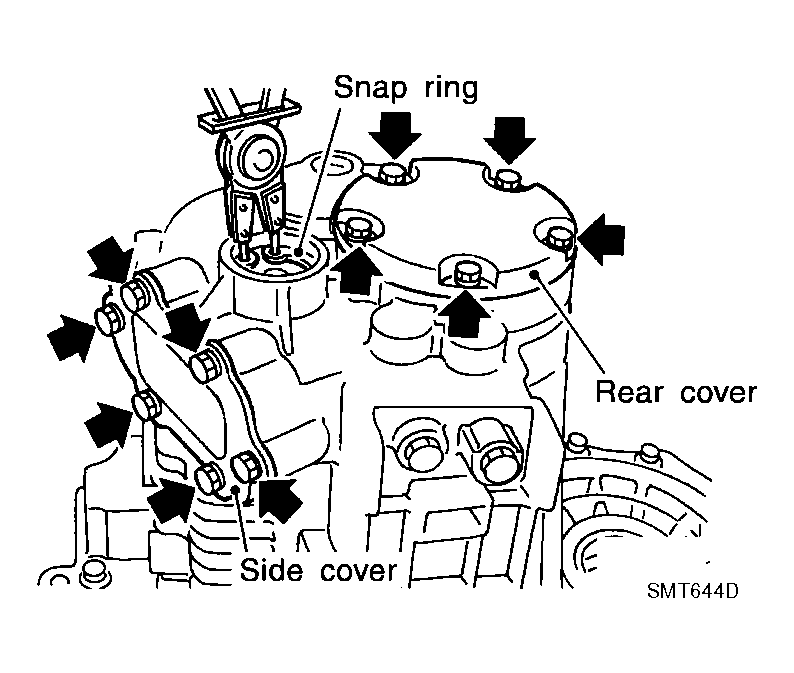

Remove snap ring from reverse idler shaft as shown.
Remove side cover and rear cover from case.

Fig 2: Removing Side Cover, Rear Cover & Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove O-ring and mainshaft bearing adjusting shim.
Remove reverse idler gear shaft.

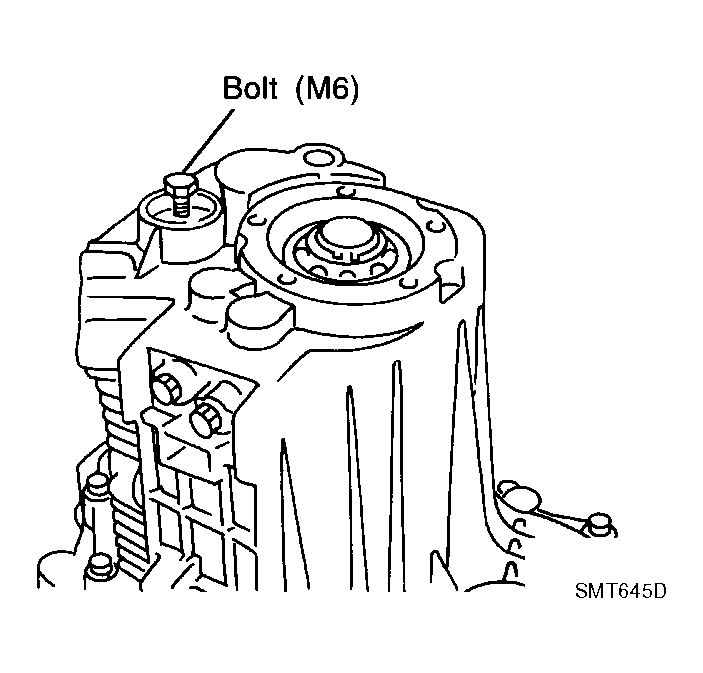

1. Attach bolt (M6) to thread of reverse idler gear shaft end as shown.
2. Pull out the attached bolt (M6), and remove reverse idler gear shaft from case.
Fig 3: Identifying Bolt (M6)
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove reverse idler gear, thrust washer (front and rear), and bearing from case.

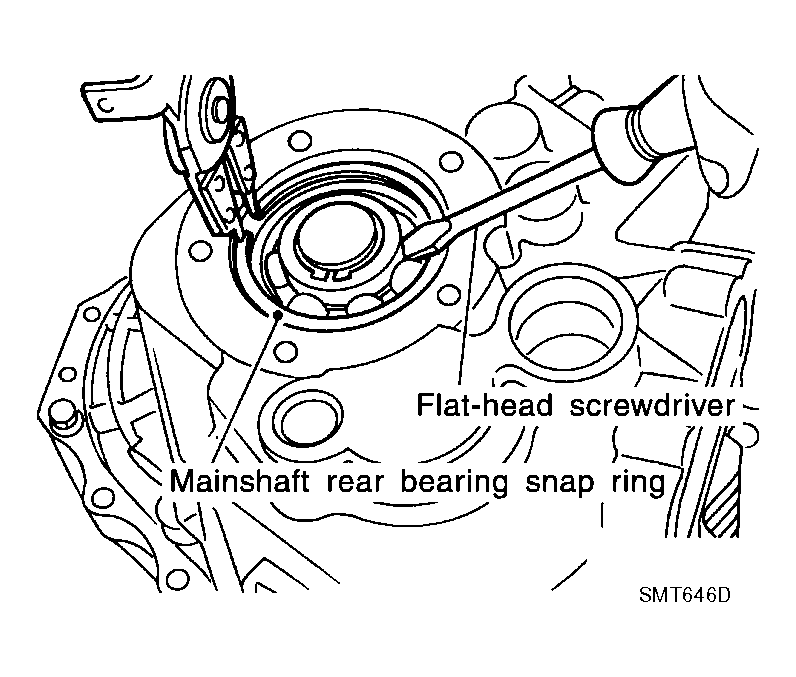

Remove mainshaft rear bearing snap ring from case.

Fig 4: Removing Mainshaft Rear Bearing Snap Ring From Case
Courtesy of NISSAN MOTOR CO., U.S.A.

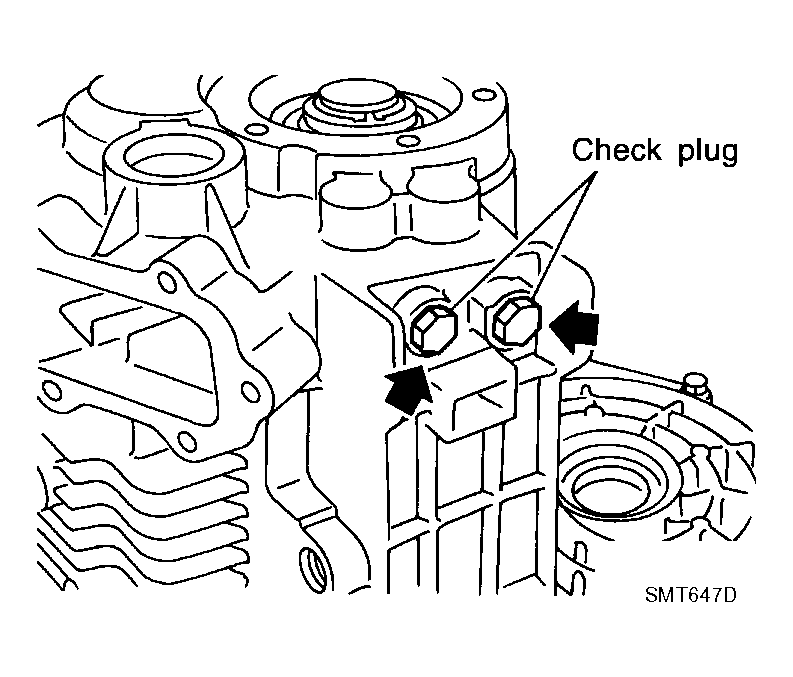

Remove check plugs, springs, and check balls from case.

Fig 5: Removing Check Plugs, Springs And Check Balls From Case
Courtesy of NISSAN MOTOR CO., U.S.A.

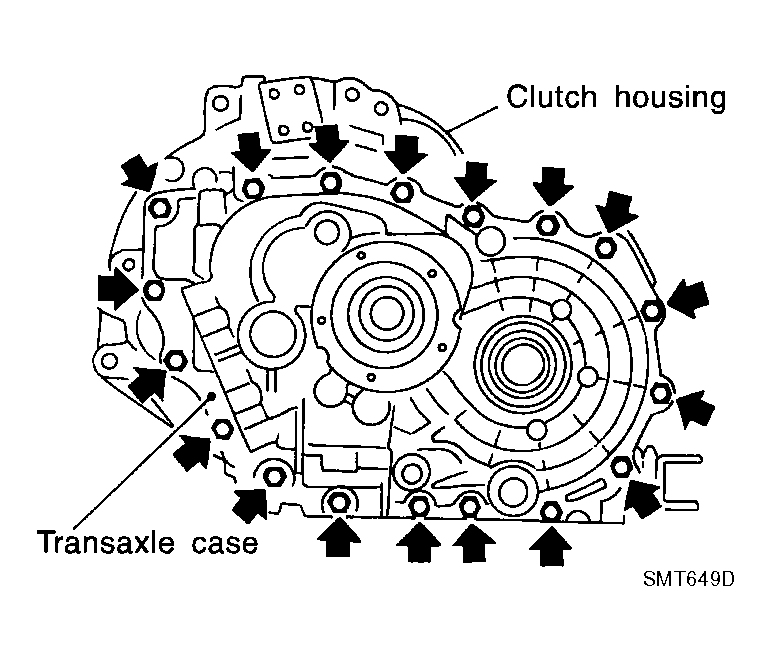

Remove transaxle case mounting bolts.

Fig 6: Identifying Transaxle Case Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove input shaft rear bearing adjusting shim from transaxle case.

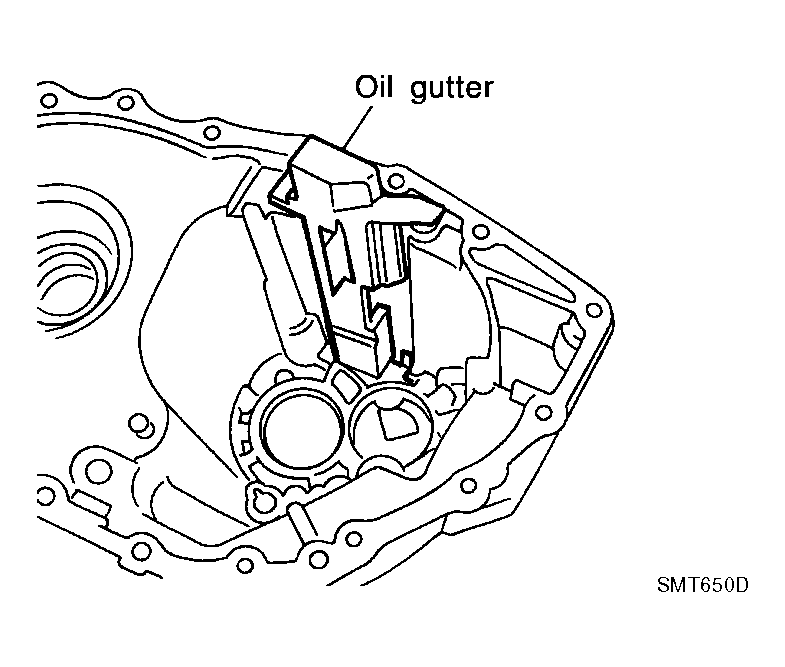

Remove oil gutter from transaxle case.

Fig 7: Removing Oil Gutter From Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove differential side bearing outer race and adjusting shim from transaxle case using Tool.

Fig 8: Removing Differential Side Bearing Outer Race From Transaxle Case Using Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove differential oil seal from transaxle case using Tool.

Fig 9: Removing Differential Oil Seal From Transaxle Case Using Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove welch plugs from transaxle case using Tool.

Fig 10: Removing Welch Plugs From Transaxle Case Using Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
