Transaxle Gear Control
Transaxle Gear Control
Refer to the illustration for the removal and installation procedure.

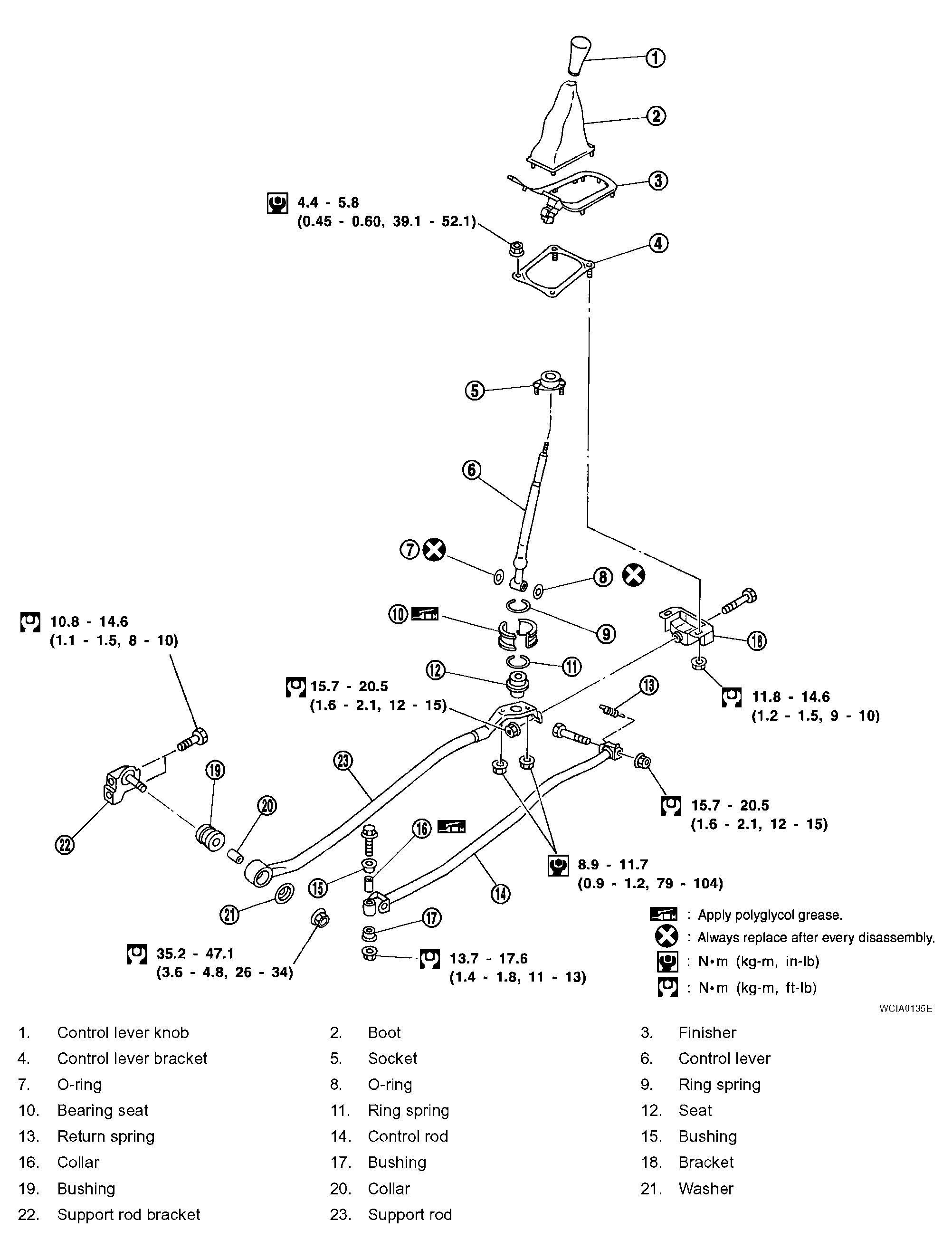

Fig 1: Exploded View Of Control Linkage With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
