Clutch System: Components

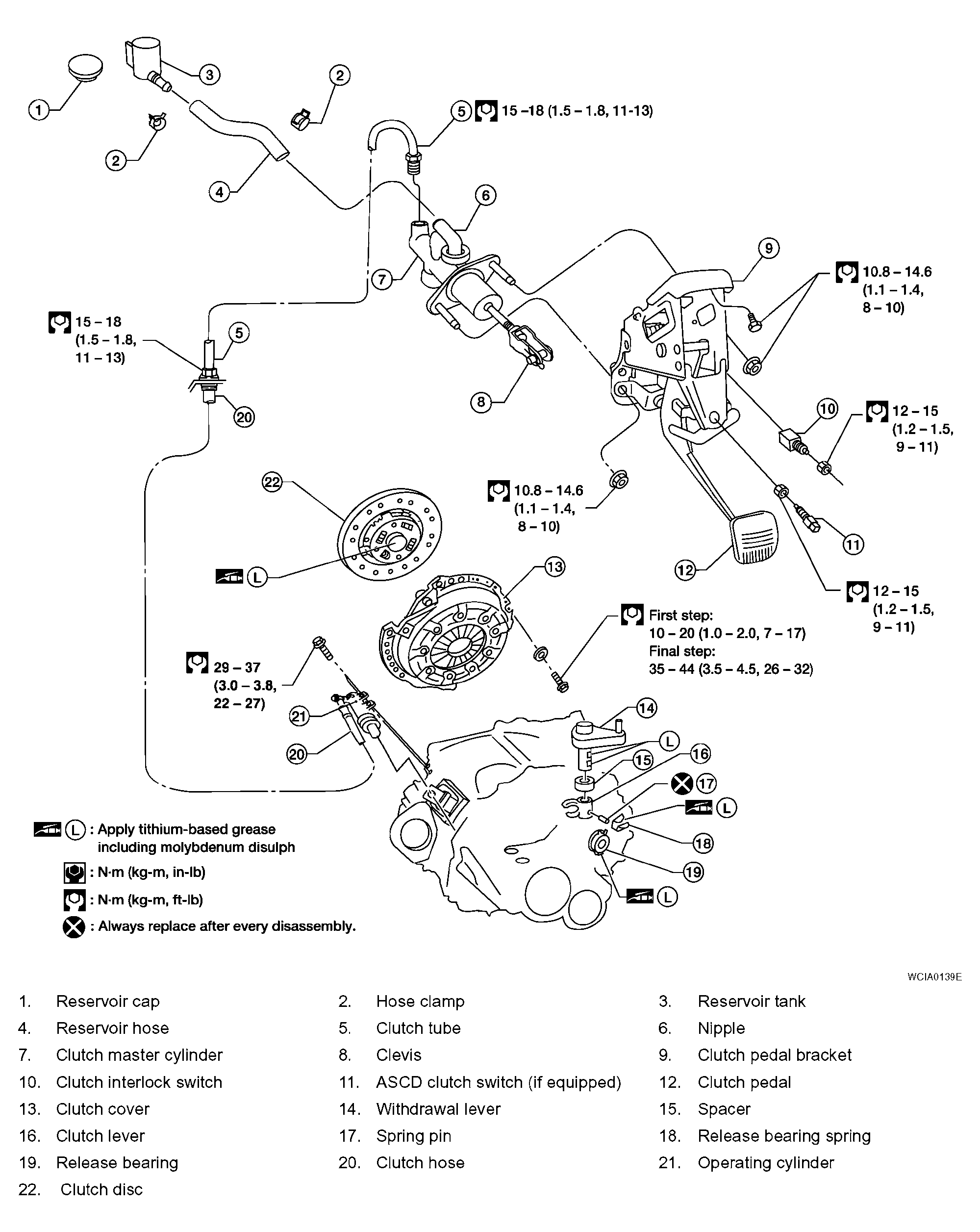

Fig 1: Identifying Clutch System Components With Torque Specifications
G04192385Courtesy of NISSAN MOTOR CO., U.S.A.
