SRT Service Procedure

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating "INCMP", review the flowchart diagnostic sequence below .

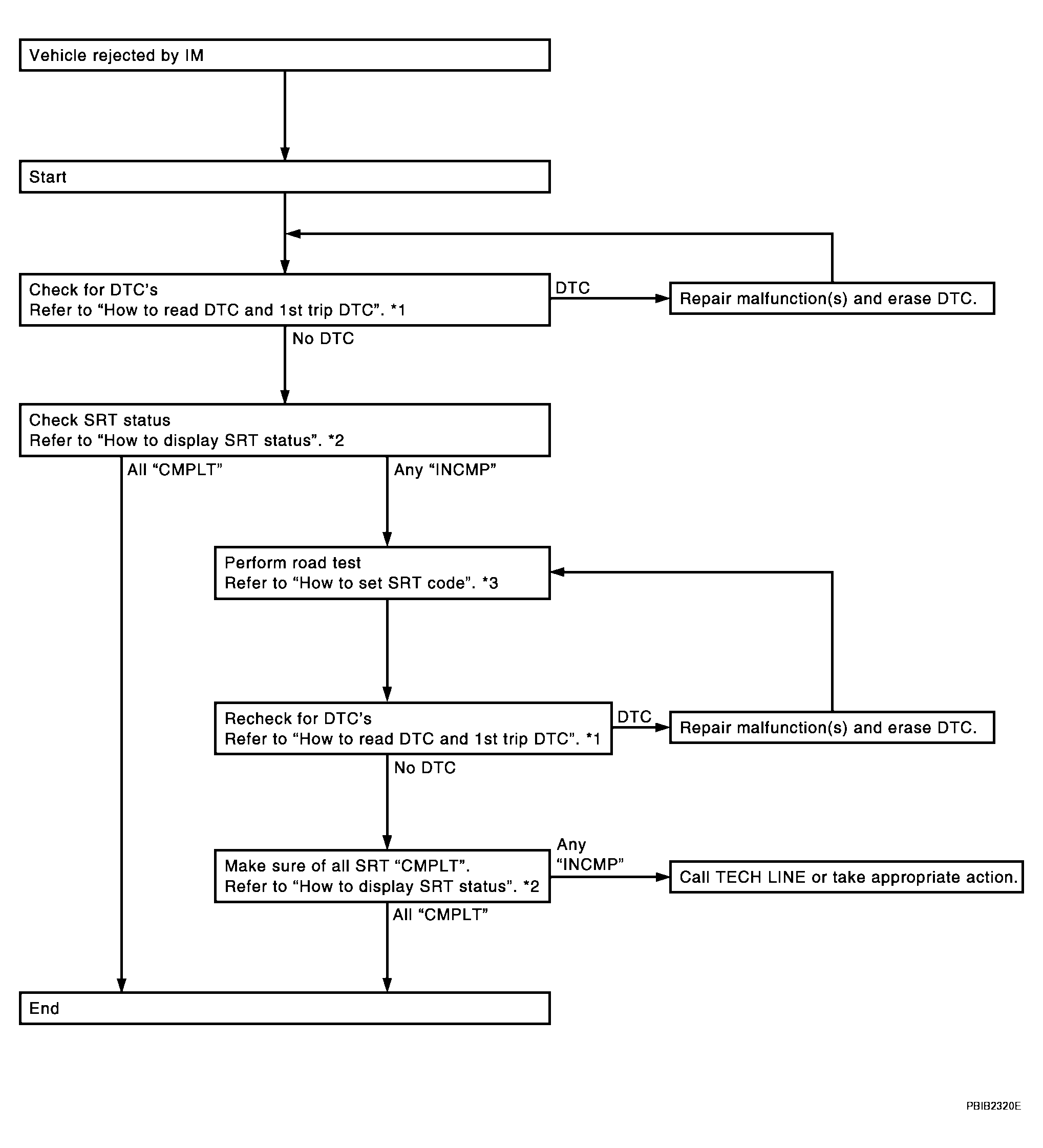

Fig 1: SRT Service Flow Chart
G04191566Courtesy of NISSAN MOTOR CO., U.S.A.
*1. How to Read DTC and 1st Trip DTC
*2. How to Display SRT Status
*3. How to Set SRT Code
