Front Suspension Assembly: Components

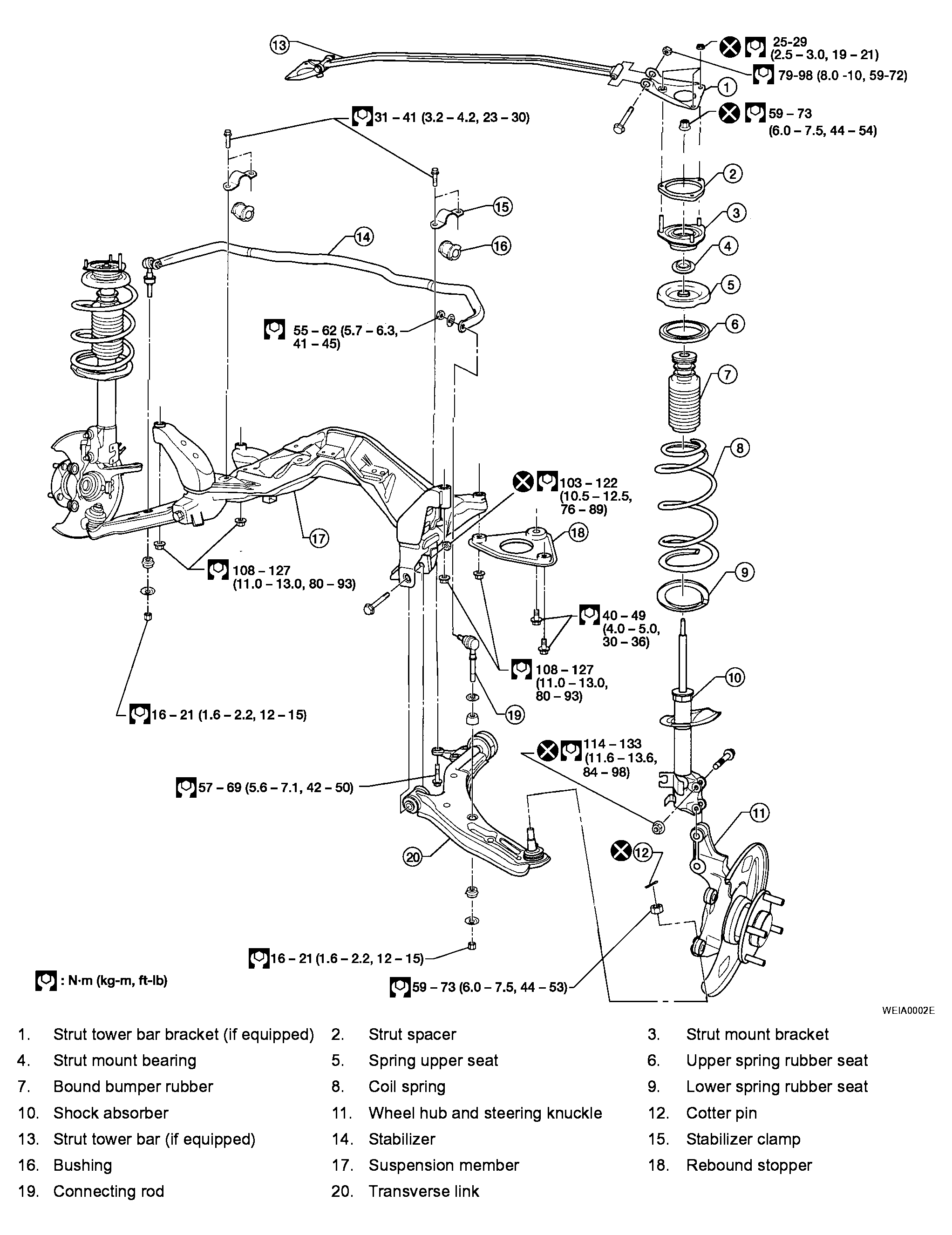

Fig 1: Exploded View Of Front Suspension Assembly With Torque Specifications

G04194500

Courtesy of NISSAN MOTOR CO., U.S.A.
