How To Use This Information: Contents

THE TITLE is indicated on the upper portion of each article and shows the part or system.
THE SMALL ILLUSTRATIONS show the important steps such as inspection, use of special tools, knacks of work and hidden or tricky steps which are not shown in the previous large illustrations.
Assembly, inspection and adjustment procedures for the complicated units such as the automatic transaxle or transmission, etc. are presented in a step-by-step format where necessary.

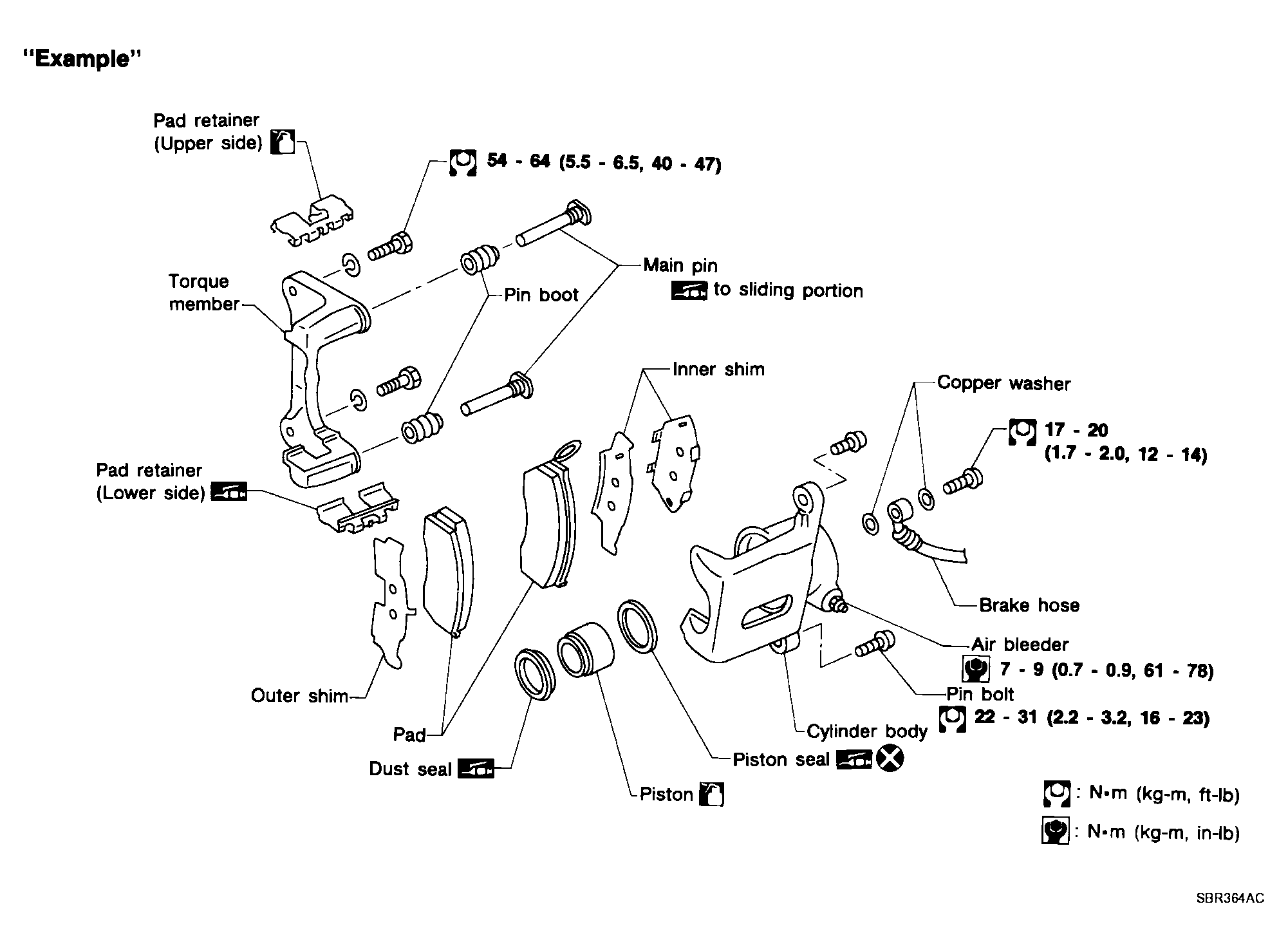

Fig 1: Assembly Procedure Example With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
