Removal and Installation: Installation

Installation is the reverse order of removal.

• When installing the transaxle to the engine, use them specified tightening torque in the numerical sequence as shown.

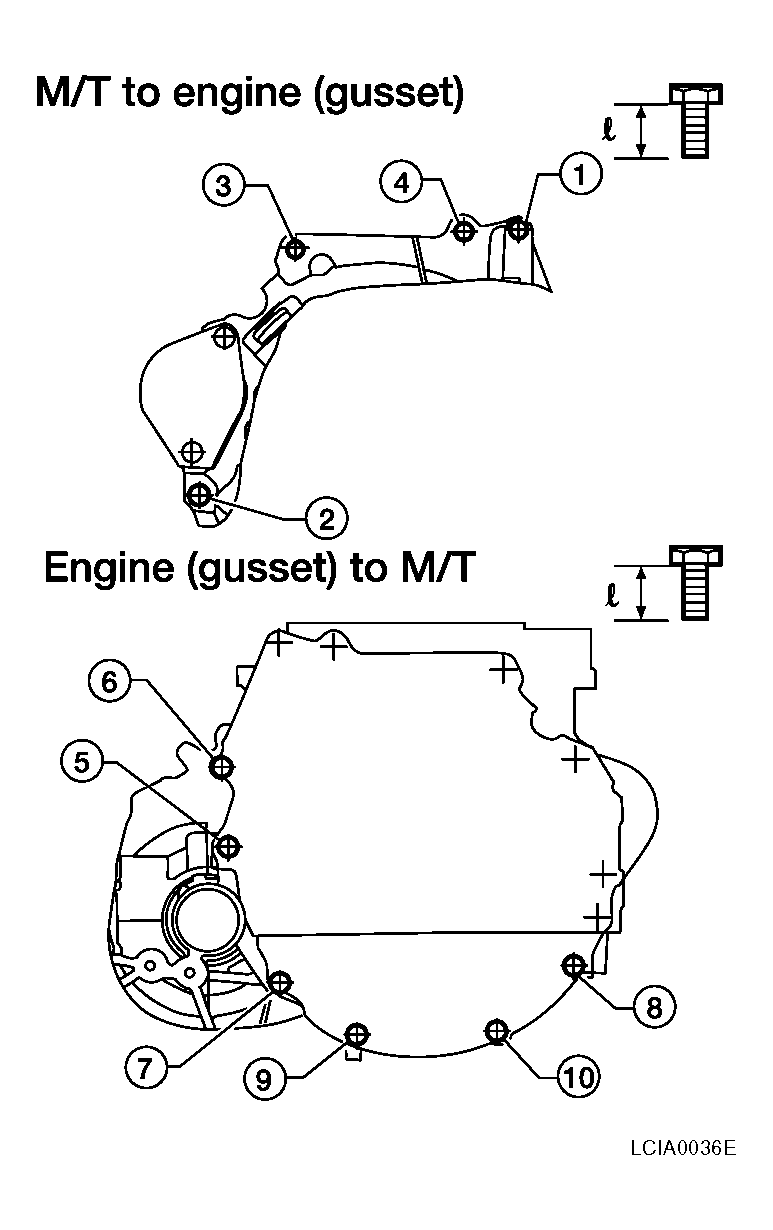

  Fig 1: Identifying Transaxle To Engine Bolt Tightening Sequence

  Courtesy of NISSAN MOTOR CO., U.S.A.
  CAUTION: When installing the transaxle, do not allow the transaxle input shaft to make contact with the clutch cover.
  TIGHTENING TORQUE SPECIFICATIONS



  Bolt No.	1	2	3	4	5	6	7	8	9	10
  "l" mm (in)	40	82	47	47	52	40	40	40	30	30
  Tightening torque N.m (kg-m, ft-lb)	30-40 (3.1-4.1, 22-29)	70-80(7.1-8.1,52-59)				30-40(3.1-4.1,22-29)

• After installation, check the transaxle oil level. Refer to "CHECKING ".
• After installation, check for any leaks and any loose mechanisms.
