Special Service Tools

The actual shapes of the Kent-Moore tools may differ from those of the special tools illustrated here.

Tool number (Kent-Moore No.) Tool name		Description

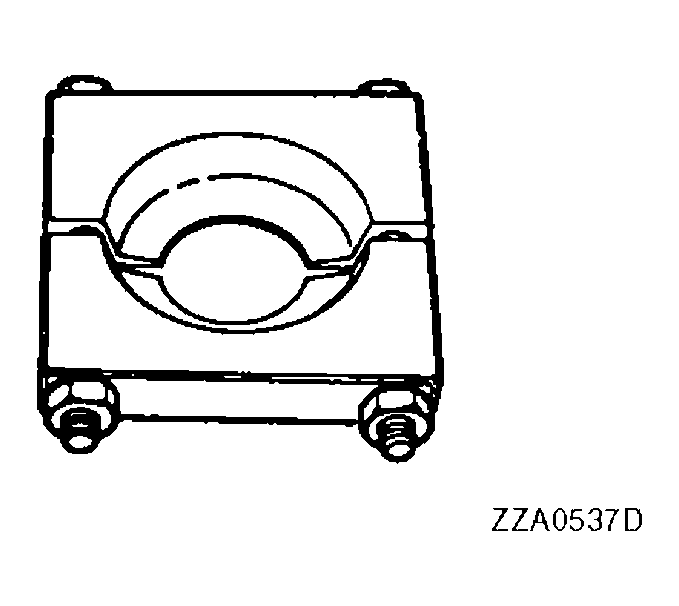

KV381054S0 (J34286) Puller		Side bearing outer race removal Mainshaft front bearing removal

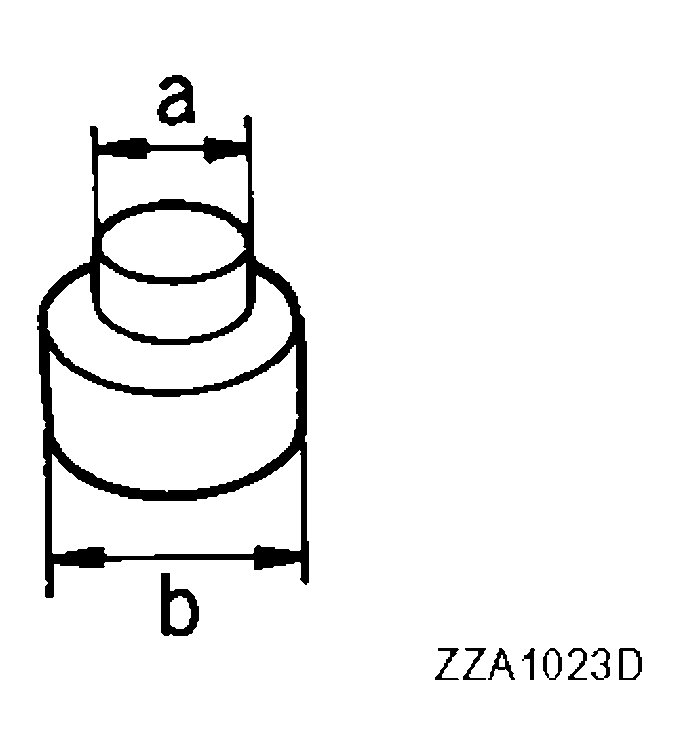

ST35321000 (-) Drift		Input shaft oil seal installation Reverse main gear installation 1st bushing installation 1st-2nd synchronizer hub installation 2nd bushing installation 3rd main gear installation 49 mm (1.93 in) dia  . 41 mm (1.61 in) dia  .

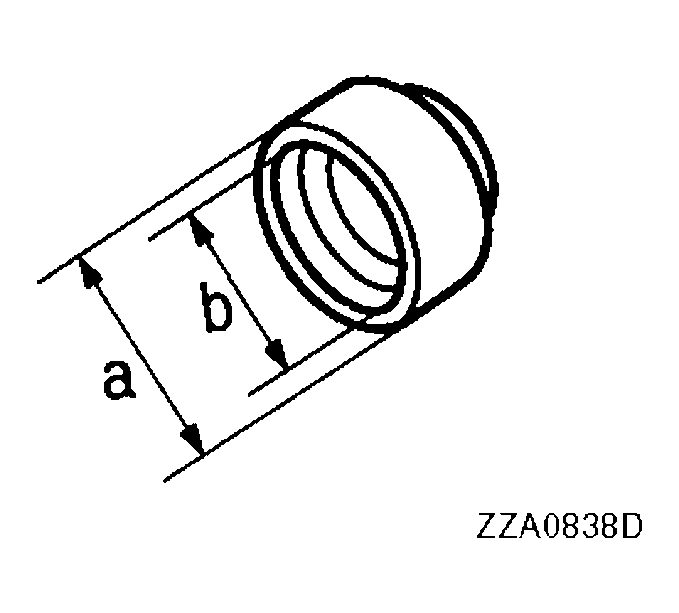

ST30720000 (J25405) Drift		Differential oil seal installation Differential side bearing outer race installation Mainshaft rear bearing installation Differential side bearing installation 77 mm (3.03 in) dia  . 55.5 mm (2.185 in) dia  .

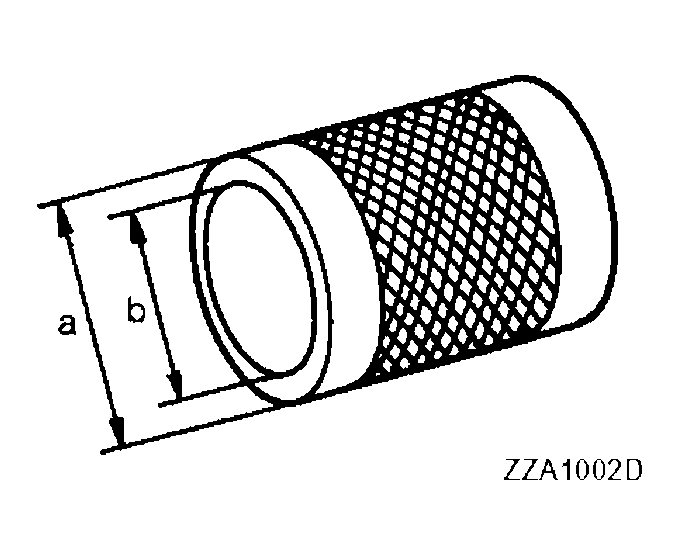

ST33200000 (J26082) Drift		Mainshaft front bearing installation 6th bushing installation 4th main gear installation 5th main gear installation 6th main gear installation 60 mm (2.36 in) dia  . 44.5 mm (1.752 in) dia  .
ST33061000 (J8107-2) Drift		Bore plug installation Differential side bearing removal 38 mm (1.50 in) dia  . 28.5 mm (1.122 in) dia  .
ST33052000 (-) Drift		Welch plug installation Input shaft rear bearing removal 5th bushing, thrust washer, 4th input gear, 4th gear bushing, 3rd-4th synchronizer hub and 3rd input gear removal Input shaft front bearing installation 6th input gear and 6th bushing removal Mainshaft rear bearing removal 4th main gear and 5th main gear removal 6th main gear removal 22 mm (0.87 in) dia  . 28 mm (1.10 in) dia  .
KV40105020 (-) Drift		5th input gear and synchronizer hub removal 3rd main gear, 2nd main gear, 2nd bushing, 1st-2nd synchronizer hub, 1st main gear, reverse main gear and 1st bushing removal 39.7 mm (1.563 in) dia  . 35 mm (1.38 in) dia  . 15 mm (0.59 in)

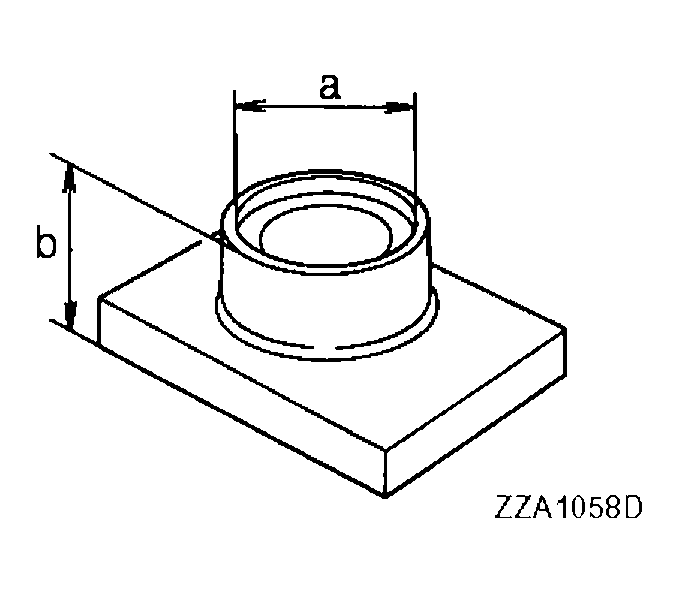

KV40105710 (-) Press stand		3rd-4th synchronizer hub installation 4th bushing installation 5th bushing installation 5th-6th synchronizer hub installation 2nd bushing installation 3rd main gear installation 46 mm (1.81 in) dia  . 41 mm (1.61 in)
ST38220000 (-) Press stand		Reverse main gear installation 1st bushing installation 1st-2nd synchronizer hub installation 63 mm (2.48 in) dia  . 65 mm (2.56 in)
ST30032000 (J26010-01) Drift		Input shaft front bearing installation 80 mm (3.15 in) dia  . 38 mm (1.50 in) dia  . 31 mm (1.22 in) dia  .
ST30901000 (J26010-01) Drift		Input shaft rear bearing installation 4th main gear installation 5th main gear installation 6th main gear installation Mainshaft rear bearing installation 79 mm (3.11 in) dia  . 45 mm (1.77 in) dia  . 35.2 mm (1.386 in) dia  .
ST30031000 (J22912-01) Puller		Measuring wear of 1st and 2nd baulk ring

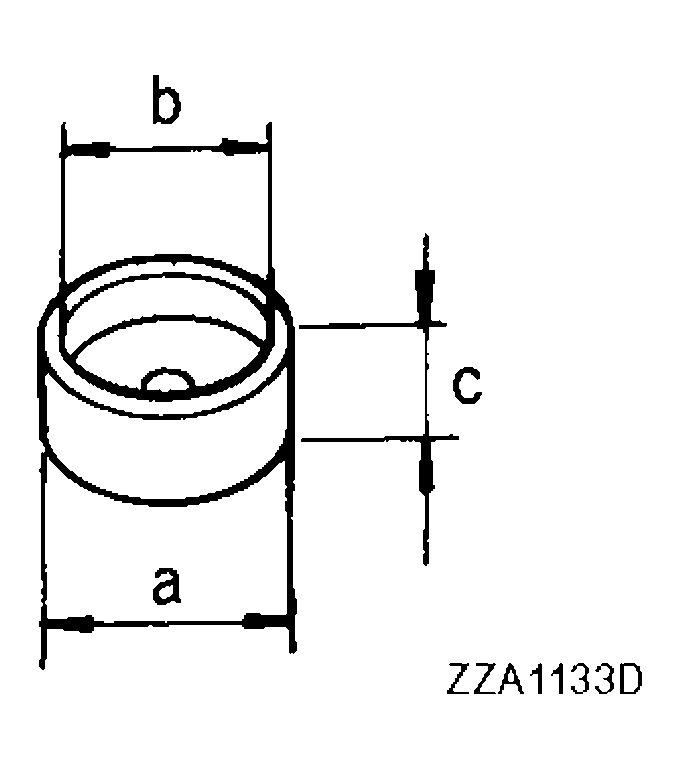

KV40101630 (J35870) Drift		Reverse main gear installation 68 mm (2.68 in) dia  . 60 mm (2.36 in) dia  .
KV38102510 (-) Drift		1st bushing installation 1st-2nd synchronizer hub installation Differential side bearing installation 71 mm (2.80 in) dia  . 65 mm (2.56 in) dia  .
