Exterior Lamp

WARNING: This page is about a different car, the 2005 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

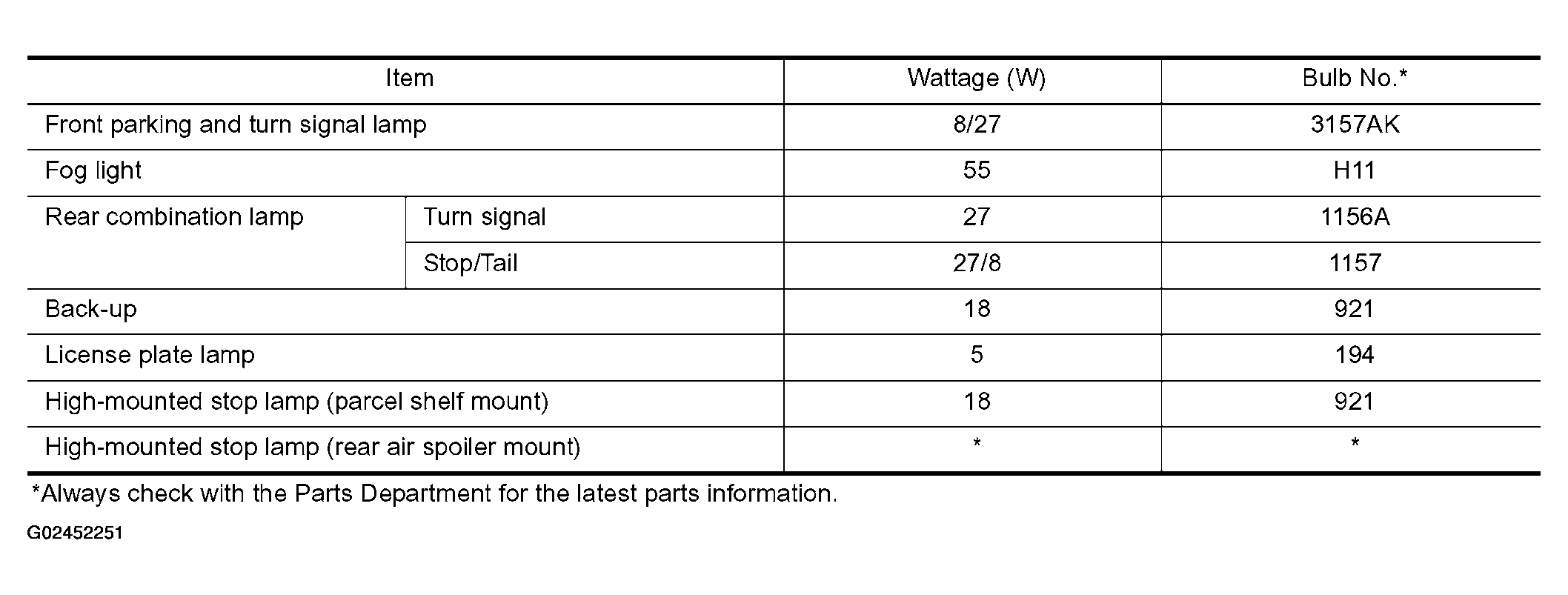

Fig 1: Exterior Lamp Specification Chart
G02452251Courtesy of NISSAN MOTOR CO., U.S.A.
