DTC P2101 Electric Throttle Control Function: Wiring Diagram

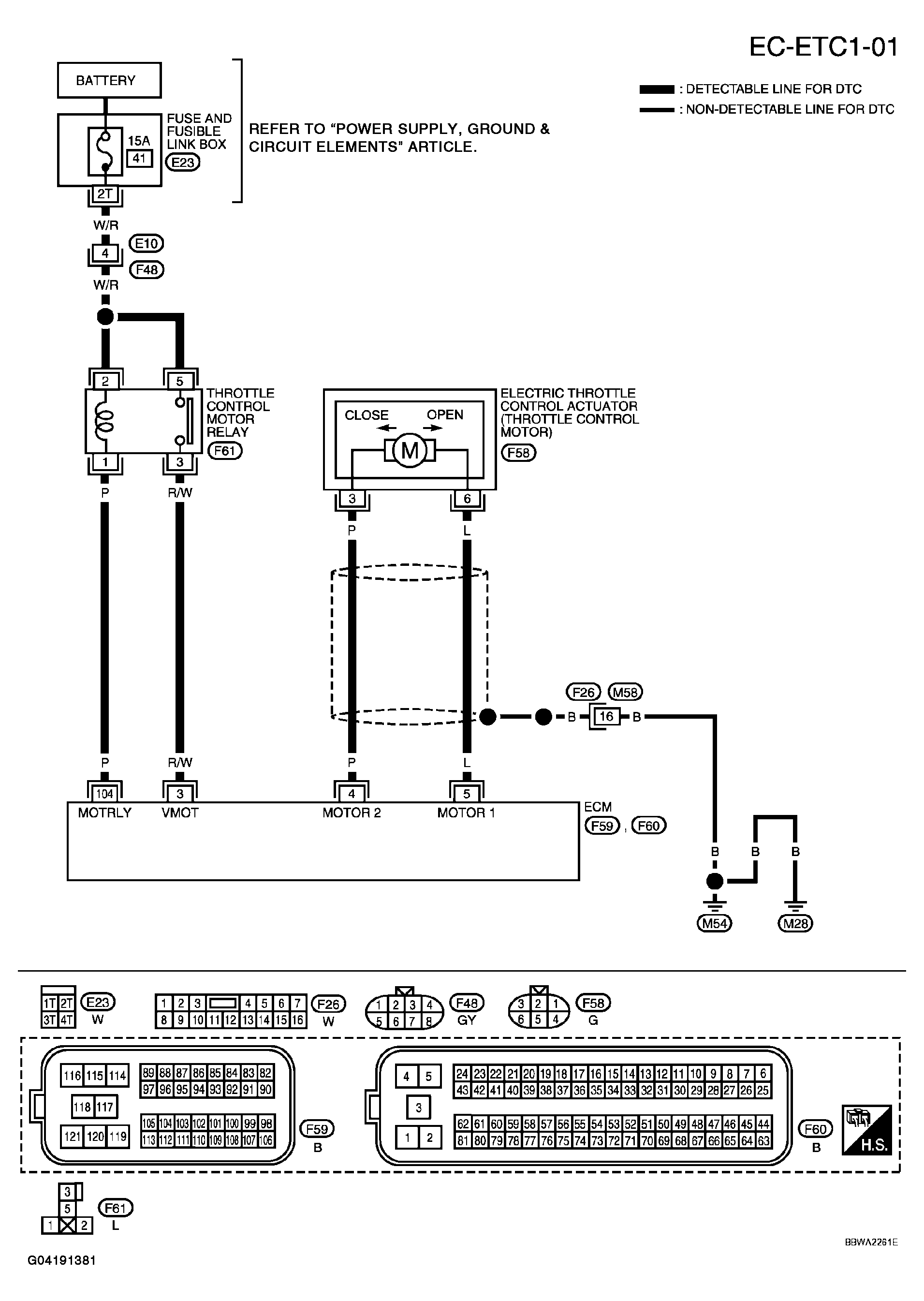

Fig 1: Identifying Wiring Diagram (EC-ETC1-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

TERMINALS VOLTAGE REFERENCE

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
3	R/W	Throttle control motor power supply	[Ignition switch: ON]	BATTERY VOLTAGE (11 - 14V)
4	P	Throttle control motor (Close)	[Ignition switch: ON] Engine stopped Shift lever: D (A/T), 1st (M/T) Accelerator pedal: Fully released	0 - 14V* Courtesy of NISSAN MOTOR CO., U.S.A.
5	L	Throttle control motor (Open)	[Ignition switch: ON] Engine stopped Shift lever: D (A/T), 1st (M/T) Accelerator pedal: Fully depressed	0 - 14V* Courtesy of NISSAN MOTOR CO., U.S.A.
104	P	Throttle control motor relay	[Ignition switch: OFF]	BATTERY VOLTAGE (11 - 14V)
104	P	Throttle control motor relay	[Ignition switch: ON]	0 - 1.0V
*: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
