With Consult-II

  1. Start engine.
  2. Select "DATA MONITOR" mode with CONSULT-II.

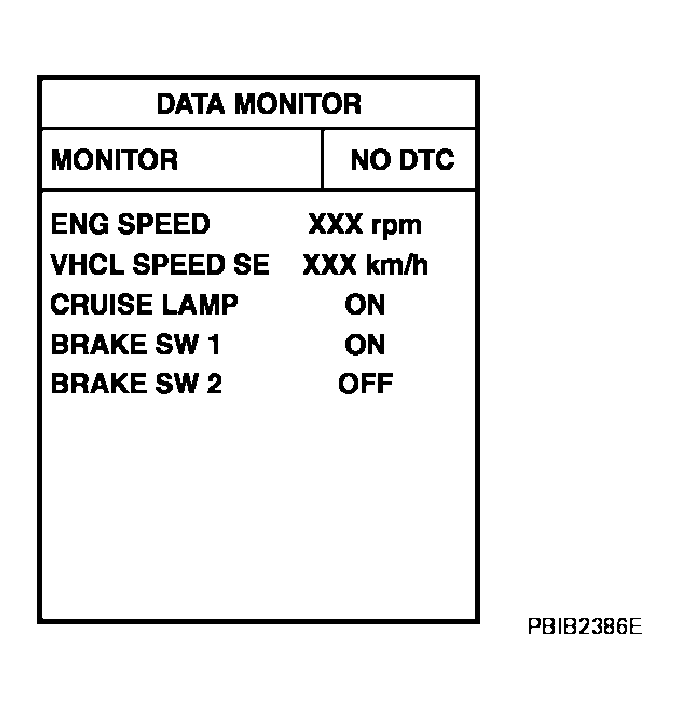

    3. Fig 1: CONSULT-II Display - DATA MONITOR
    G04191347Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Press MAIN switch and make sure that CRUISE indicator lights up.
  4. Drive the vehicle for at least 5 consecutive seconds under the following condition.
    VEHICLE SPEED AND SELECTOR LEVER POSITION REFERENCE

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Selector lever Suitable position

    If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "

    If 1st trip DTC is not detected, go to the following step.

  5. Drive the vehicle for at least 5 consecutive seconds under the following condition.
    VEHICLE SPEED, SELECTOR LEVER POSITION & DRIVING LOCATION REFERENCE

    VHCL SPEED SE More than 30 km/h (19 MPH)
    Selector lever Suitable position
    Driving location Depress the brake pedal for more than 5 seconds so as not to come off from the above-mentioned vehicle speed.
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
