Selector Knob: Removal

  1. Slide the selector knob cover downwards with fingers to reveal the selector knob latch.
  2. Gently pry the selector knob latch outward to release then lift the selector knob up to remove.

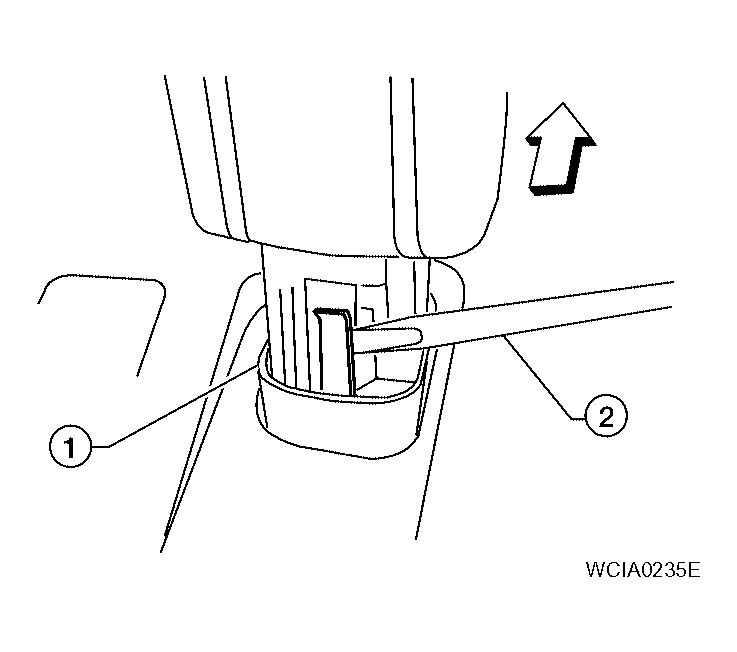

    Fig 1: Identifying Selector Knob
    G04197645Courtesy of NISSAN MOTOR CO., U.S.A.
