Control Valve Lower Body: Disassembly

Remove valves at retainer plate. Refer to "COMPONENTS ".

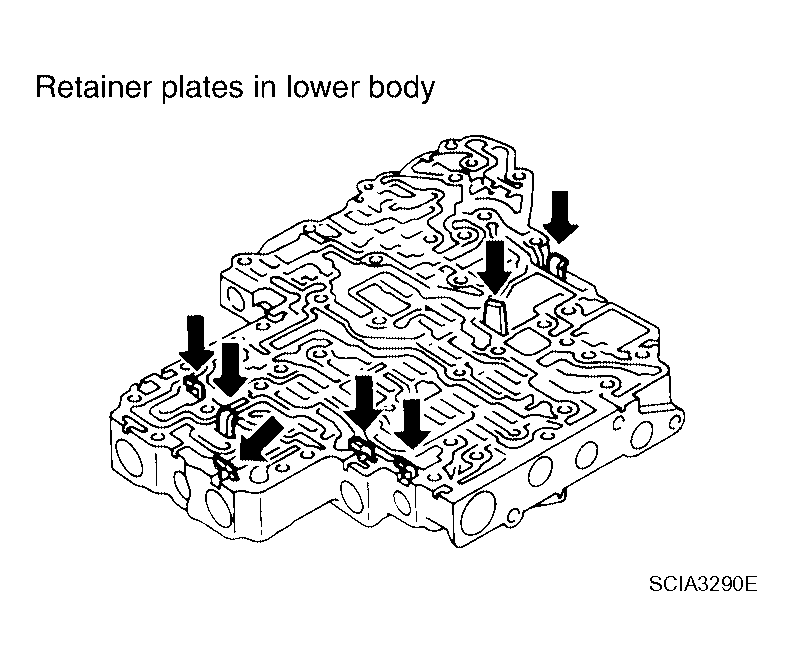

Fig 1: Identifying Valves
Courtesy of NISSAN MOTOR CO., U.S.A.
