ATF Cooler Valve: Notes

Refer to the figure for ATF cooler valve and hoses removal and installation information.

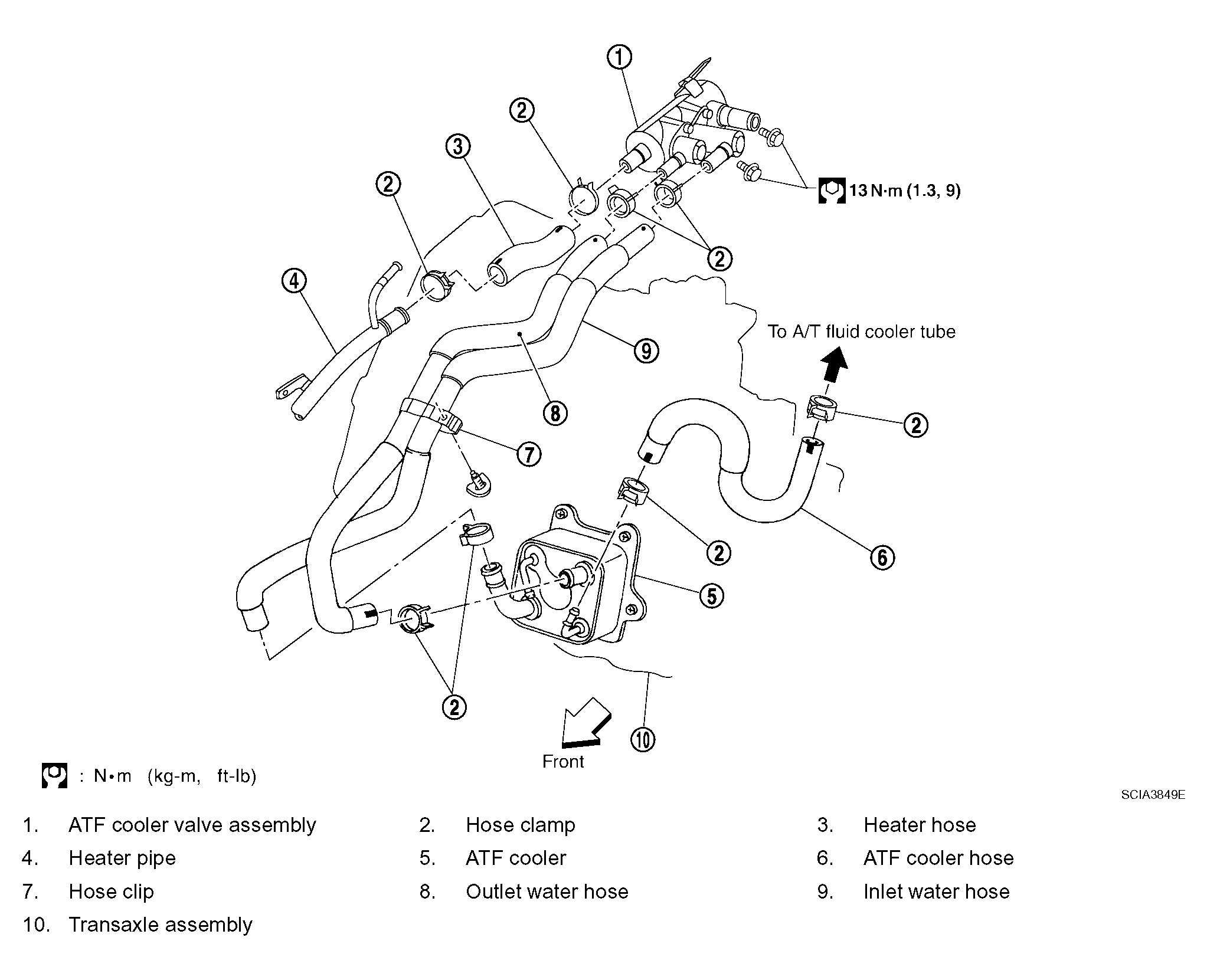

Fig 1: ATF Cooler Valve Replacement Components With Torque Specifications
G04197663Courtesy of NISSAN MOTOR CO., U.S.A.
