Assembly (1)

Install differential side oil seals on transaxle case and converter housing using Tool.
Tool number: ST33400001 (J-26082)

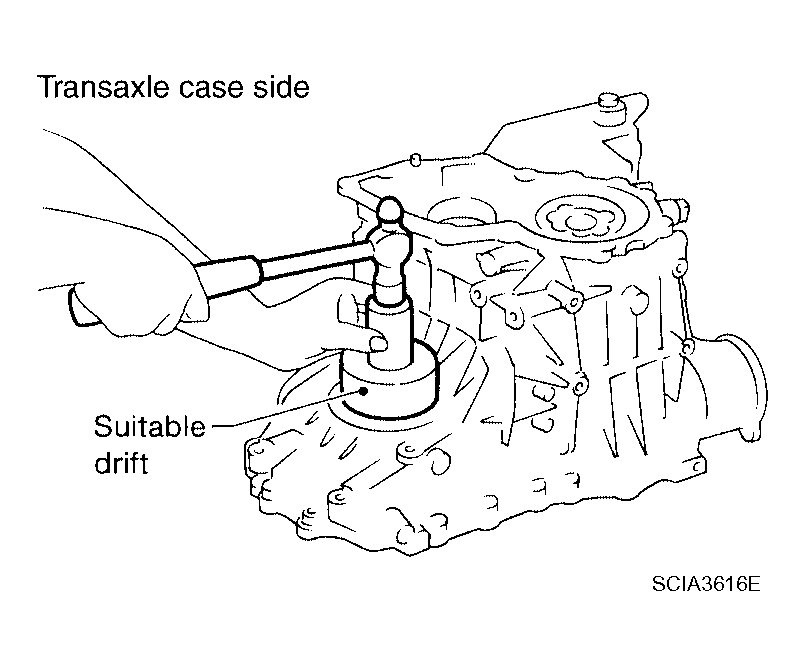

Fig 1: Identifying Differential Side Oil Seals
Courtesy of NISSAN MOTOR CO., U.S.A.

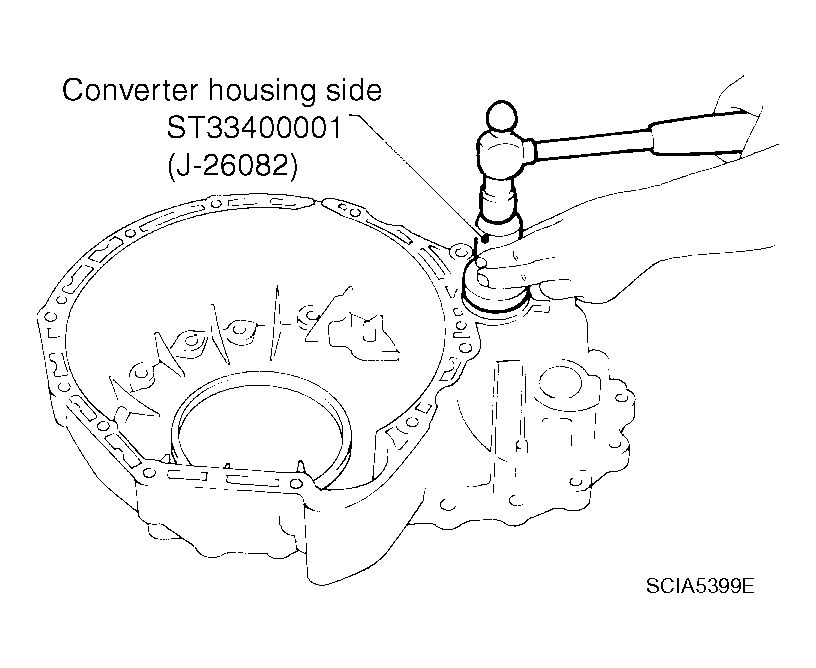

Fig 2: Identifying Housing
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking actuator support to transaxle case. Tighten parking actuator support bolts to the specified torque. Refer to "OVERHAUL ".
CAUTION: Pay attention to direction of parking actuator support.

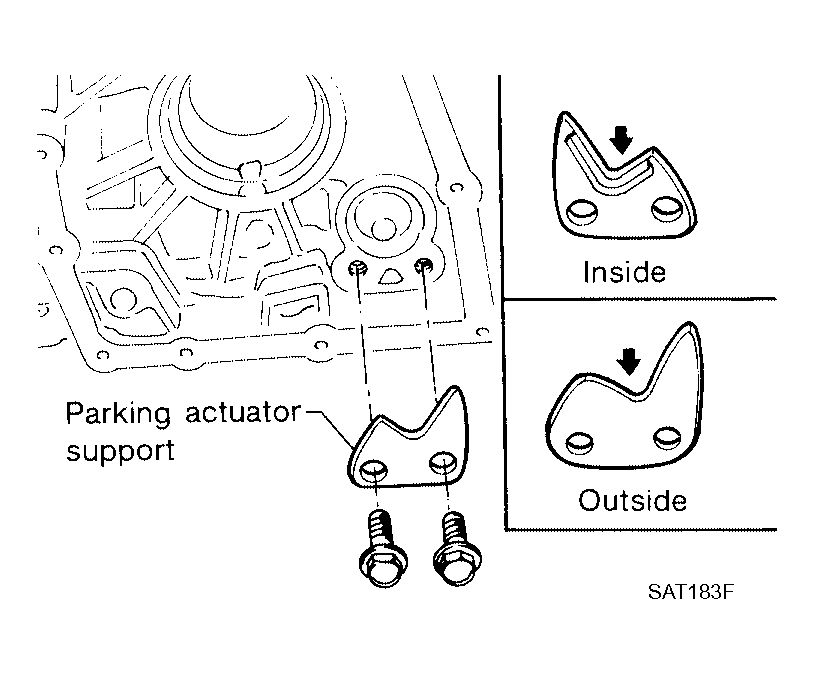

Fig 3: Identifying Parking Actuator Support To Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Install parking pawl on transaxle case and secure it with parking shaft.
Install return spring using suitable tool.

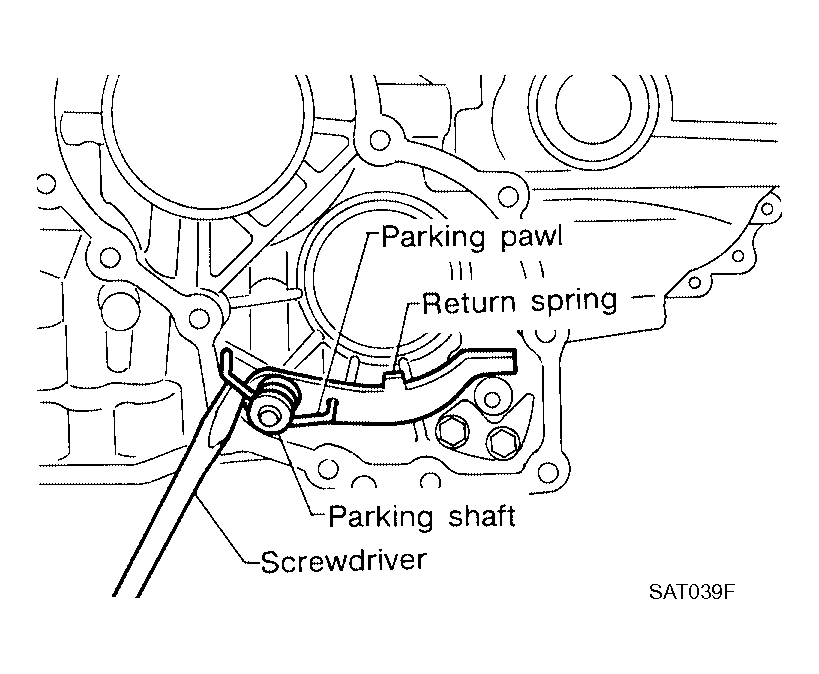

Fig 4: Identifying Return Spring
Courtesy of NISSAN MOTOR CO., U.S.A.
