Diagnostic Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to , "GROUND INSPECTION ".
   Fig 1: Locating Body Ground Screws E24, E15, F9 And E133

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 2.

NG : Repair or replace ground connections.

1. Disconnect electric throttle control actuator harness connector.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following terminals.

   Refer to WIRING DIAGRAM .

   ELECTRIC THROTTLE CONTROL ACTUATOR AND ECM CONTINUITY



   Electric throttle control actuator terminal	ECM terminal	Continuity
   3	5	Should not exist
   	4	Should exist
   6	5	Should exist
   	4	Should not exist

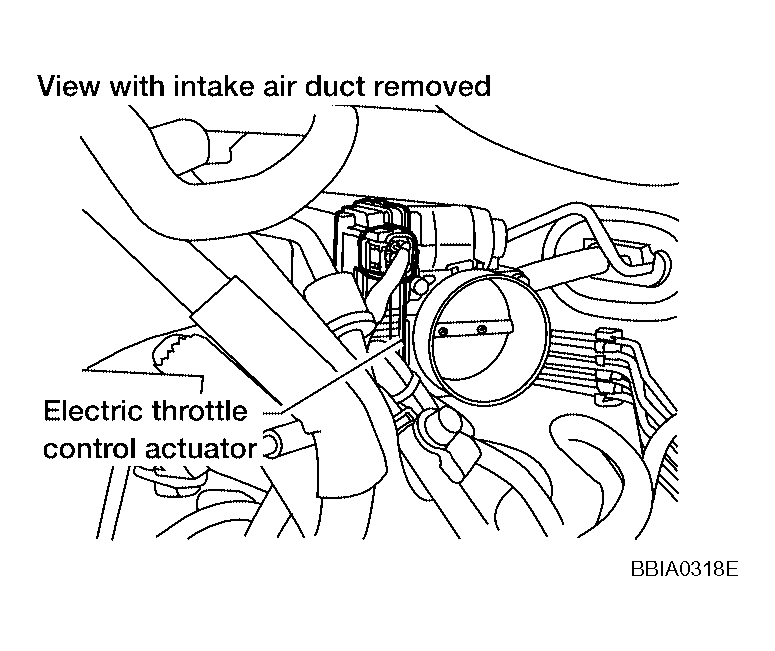

   Fig 2: Identifying Electric Throttle Control Actuator

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Also check harness for short to ground and short to power.

OK or NG

OK : GO TO 3.

NG : Repair or replace.

Refer to , "COMPONENT INSPECTION ".

OK or NG

OK : GO TO 4.

NG : GO TO  5.

Refer to , "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

OK or NG

OK : GO TO 5.

NG : Repair or replace harness or connectors.

1. Replace the electric throttle control actuator.
2. Perform , "THROTTLE VALVE CLOSED POSITION LEARNING ".
3. Perform , "IDLE AIR VOLUME LEARNING ".

   : INSPECTION END
