Stop Lamp Switch

Disconnect stop lamp switch harness connector.

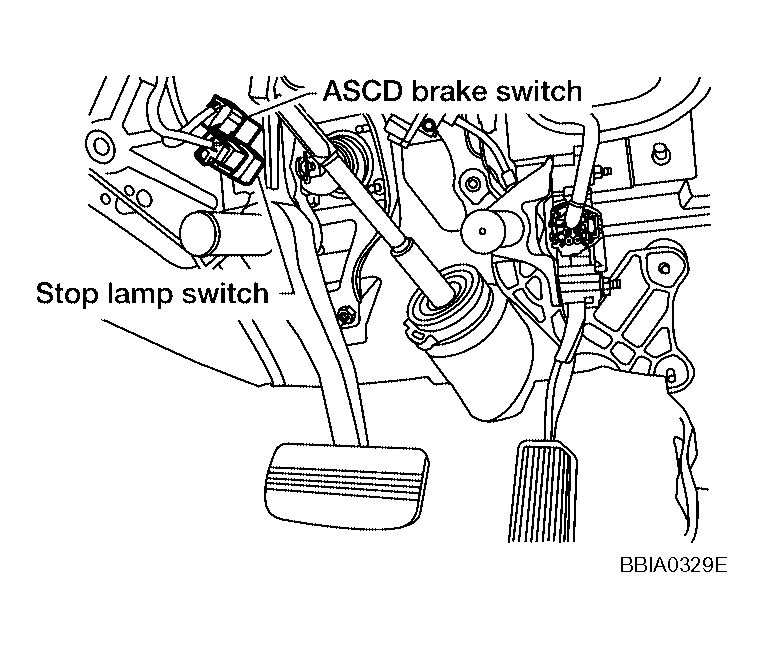

Fig 1: Identifying ASCD Brake Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

STOP LAMP SWITCH CONTINUITY

Conditions	Continuity
Brake pedal: Fully released	Should not exist.
Brake pedal: Slightly depressed	Should exist.

If NG, adjust stop lamp switch installation, refer to , "BRAKE PEDAL ", and perform step 2 again.

Fig 2: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2
Courtesy of NISSAN MOTOR CO., U.S.A.
