Diagnostic Procedure

1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to , "GROUND INSPECTION ".
   Fig 1: Locating Body Ground Screws E24, E15, F9 And E133

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK : GO TO 2.

NG : Repair or replace ground connections.

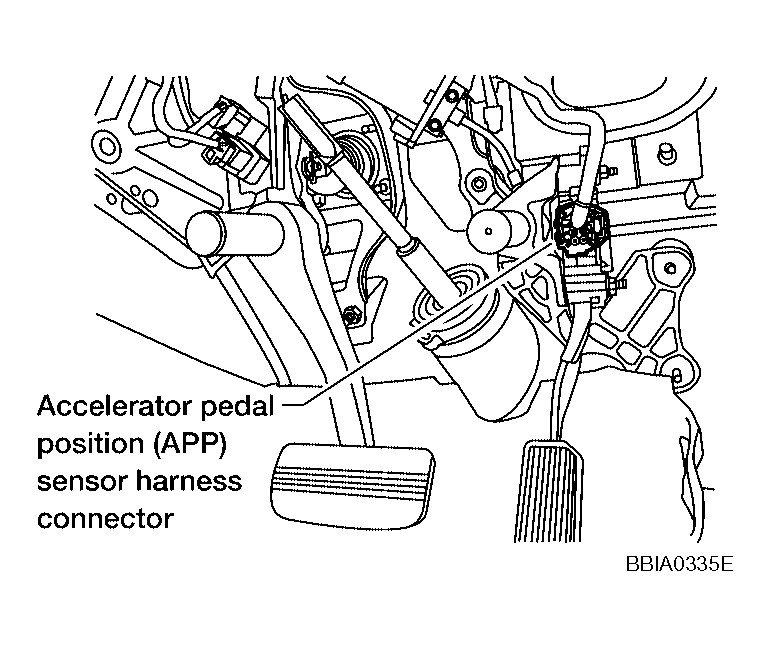

1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.
   Fig 2: Locating Intake Air Temperature Sensor & Mass Air Flow Sensor

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between APP sensor terminal 7 and ground with CONSULT-II or tester.

   Voltage: Approximately 5V

OK or NG

OK : GO TO  5.

NG : GO TO 3.

Fig 3: Checking Voltage Between APP Sensor Terminal 7 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

Check harness for short to power and short to ground, between the following terminals.

OK or NG

OK : GO TO 4.

NG : Repair short to ground or short to power in harness or connectors.

Check the following.

• EVAP control system pressure sensor (Refer to , "COMPONENT INSPECTION ".)
• Refrigerant pressure sensor or TROUBLE DIAGNOSIS ).
• Power steering pressure sensor (Refer to , "COMPONENT INSPECTION ".)

OK or NG

OK : GO TO  7.

NG : Replace malfunctioning component.

Refer to , "COMPONENT INSPECTION ".

OK or NG

OK : GO TO  7.

NG : GO TO 6.

1. Replace accelerator pedal position sensor.
2. Perform , "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
3. Perform , "THROTTLE VALVE CLOSED POSITION LEARNING ".
4. Perform , "IDLE AIR VOLUME LEARNING ".

   : INSPECTION END

Refer to , "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

: INSPECTION END
