Vacuum Hose Drawing

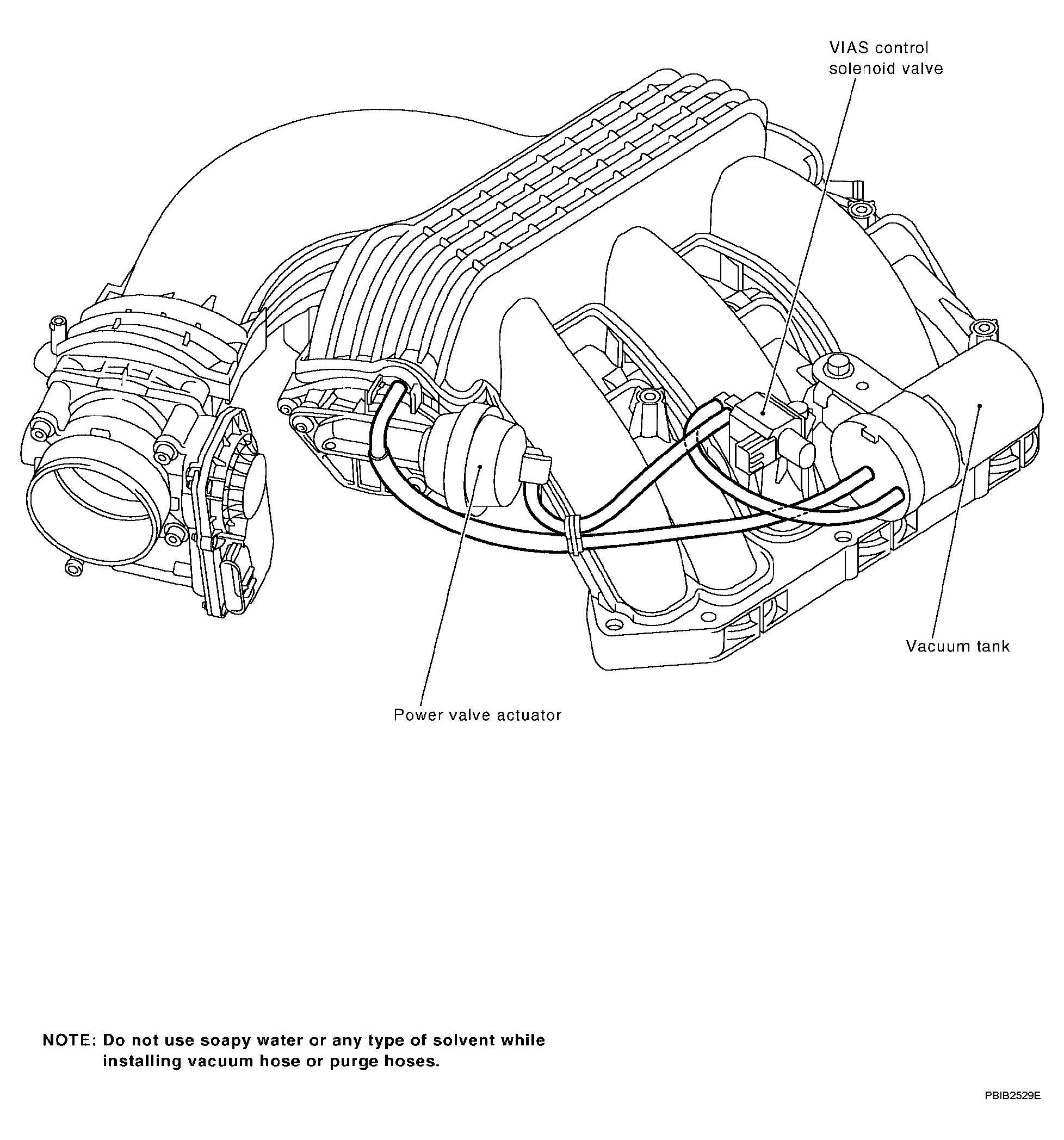

Fig 1: Identifying Vacuum Hose Drawing
Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to "
SYSTEM DIAGRAM
" for Vacuum Control System.
