Operation Procedure

Perform "CONSULT-II SETTING PROCEDURE ". Refer to "CONSULT-II SETTING PROCEDURE "
Start engine and drive at 30 km/h (19 MPH) or more for approx. 1 minute.
Stop vehicle. With engine at idle, touch "SELF-DIAG RESULTS". Display shows malfunction experienced since the last erasing operation.
NOTE:
- "TIME" shows the status of self-diagnosis results:
  - "0": Error is currently detected with AWD control unit.
  - Except for "0": Error was detected in the past and memorized in AWD control unit.
    "TIME" means the frequency of driving after DTC had occurred (frequency of turning ignition switch "ON/ OFF").

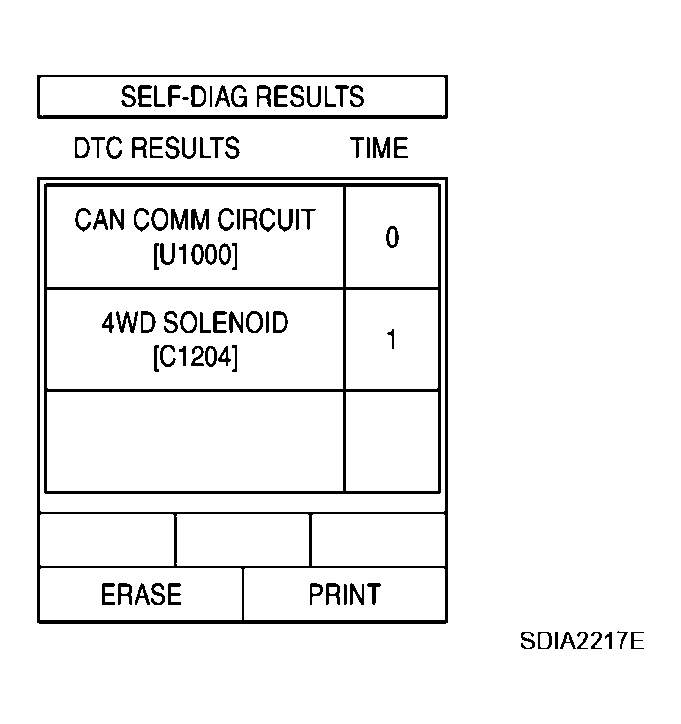

Fig 1: CONSULT-II Display - SELF-DIAG RESULTS
Courtesy of NISSAN MOTOR CO., U.S.A.
