Component Inspection

  1. Turn ignition switch "OFF".
  2. Disconnect AWD lock switch harness connector.
  3. Operate AWD lock switch and check continuity between AWD lock switch harness connector M55 terminals 1 and 3.
    TERMINAL CONTINUITY SPECIFICATIONS

    Connector Terminal Condition Continuity
    M55 1 -3 AWD lock switch: "ON" position Yes
    AWD lock switch: "OFF" position No
  4. If NG, replace AWD lock switch.

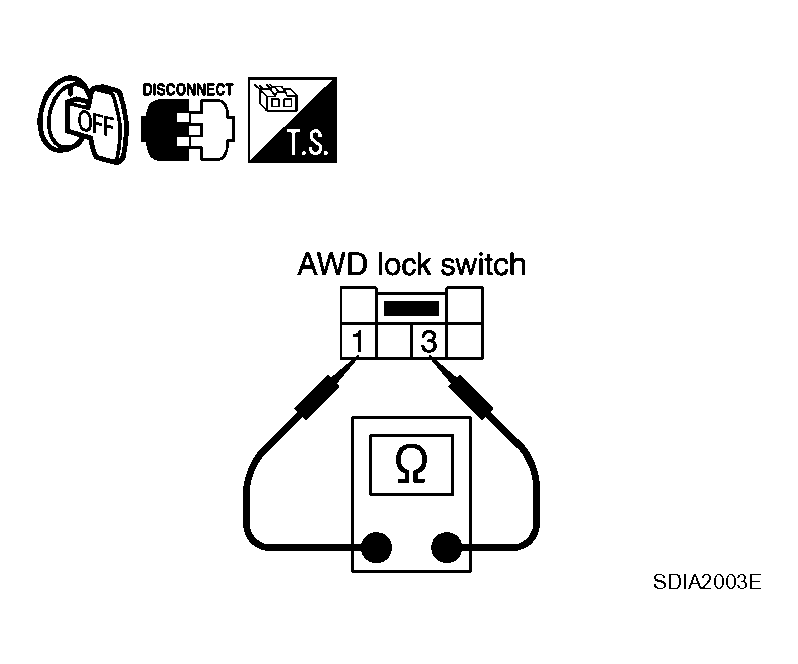

    Fig 1: Checking Continuity Between AWD Lock Switch Harness Connector M55 Terminals
    G04217065Courtesy of NISSAN MOTOR CO., U.S.A.
