Home >> Nissan-Datsun >> 2006 >> Murano SL, AWD >> Repair and Diagnosis >> Transmission >> Transfer Case >> Transfer Assembly >> Removal and Installation >> Components

Removal and Installation: Components

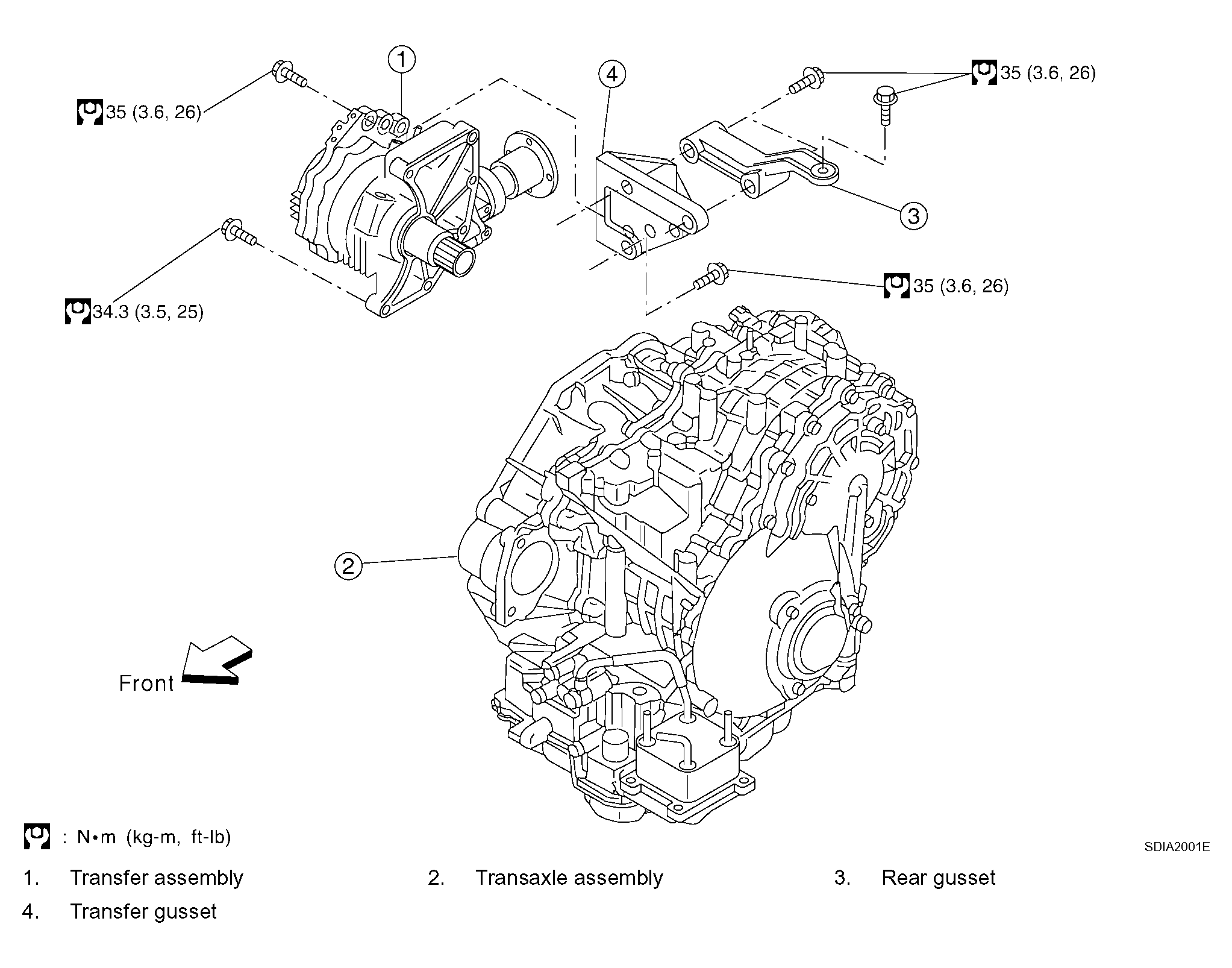

Fig 1: Removing Transfer Assembly Components

G04217087

Courtesy of NISSAN MOTOR CO., U.S.A.
