Adapter Case

Remove the adapter case mounting bolts.

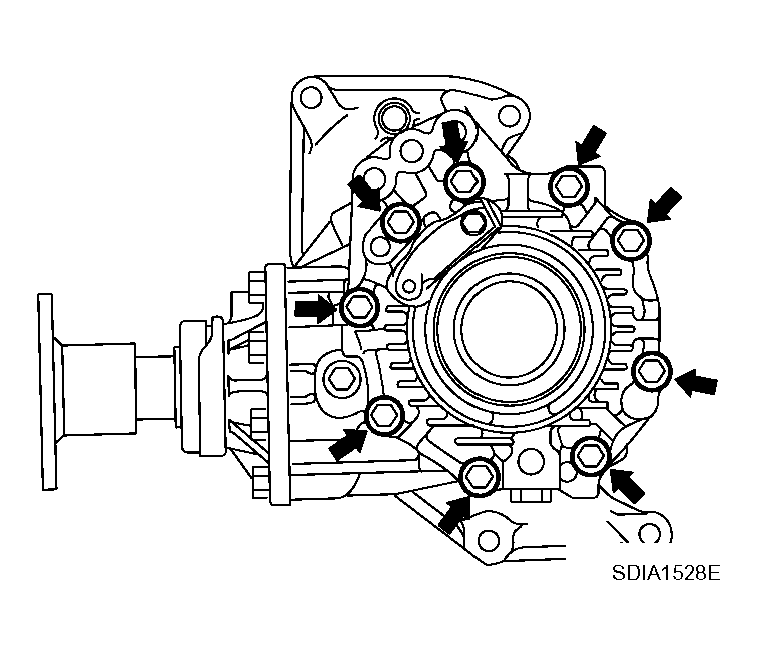

Fig 1: Removing Adapter Case Mounting Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a plastic hammer, tap the adapter case to remove.
Remove the O-ring.

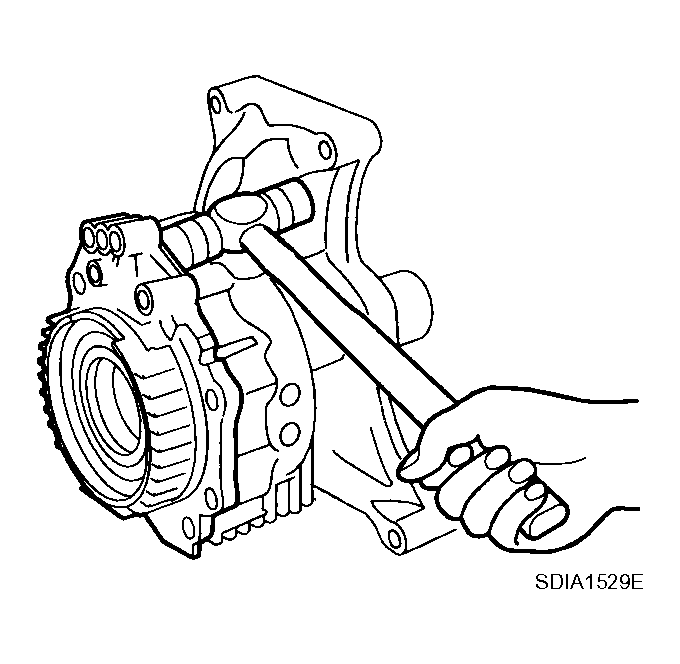

Fig 2: Tapping Adapter Case To Remove
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a flat-bladed screwdriver, remove the adapter case oil seal.
CAUTION: Be careful not to damage the adapter case.

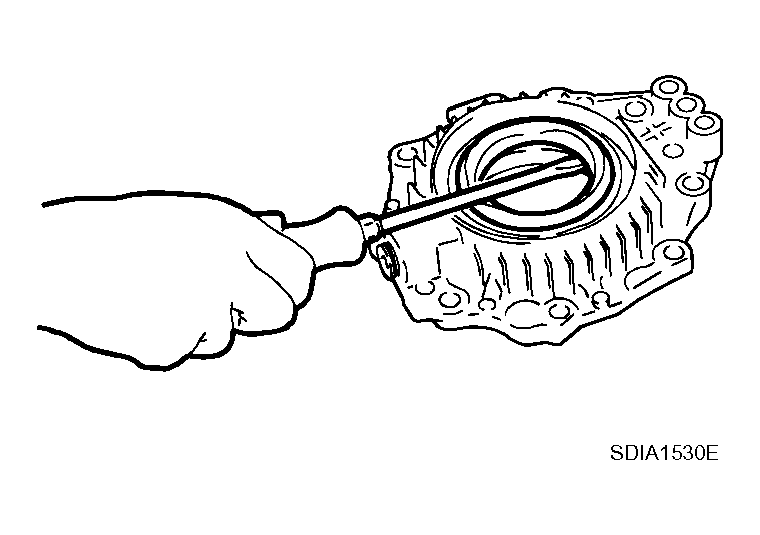

Fig 3: Removing Adapter Case Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
Using a brass rod, tap the gear ring bearing adjusting shim from the cutout on the adapter case to remove the gear ring bearing adjusting shim and gear ring bearing outer race.

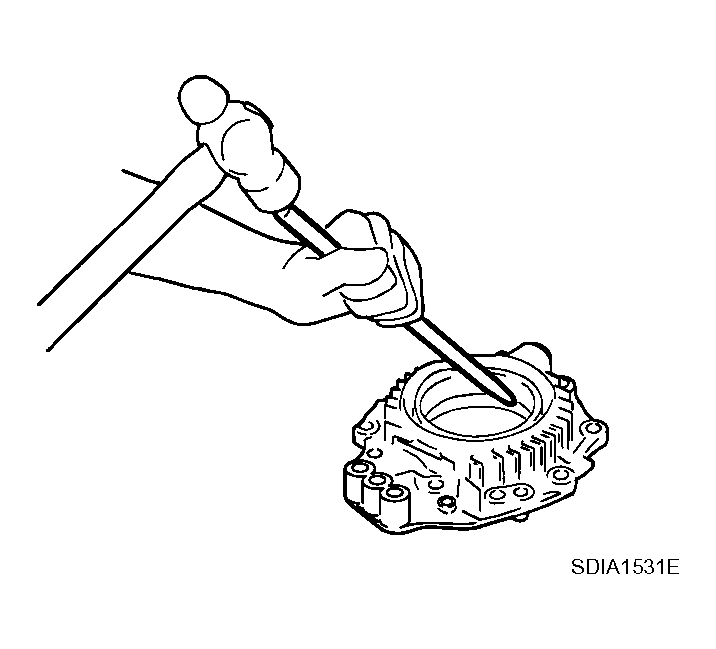

Fig 4: Tapping Gear Ring Bearing Adjusting Shim From Cutout On Adapter Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the oil gutter.
Remove the drain plug.

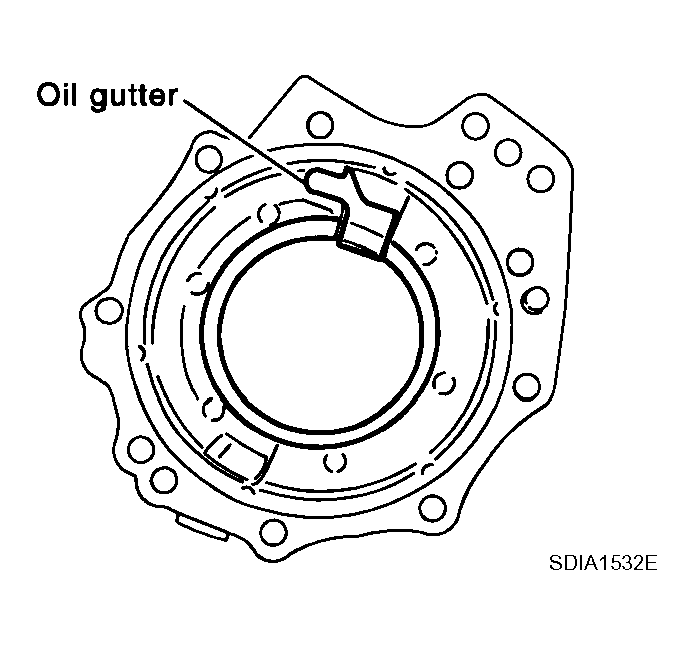

Fig 5: Identifying Oil Gutter
Courtesy of NISSAN MOTOR CO., U.S.A.
