Disassembly and Assembly: Components

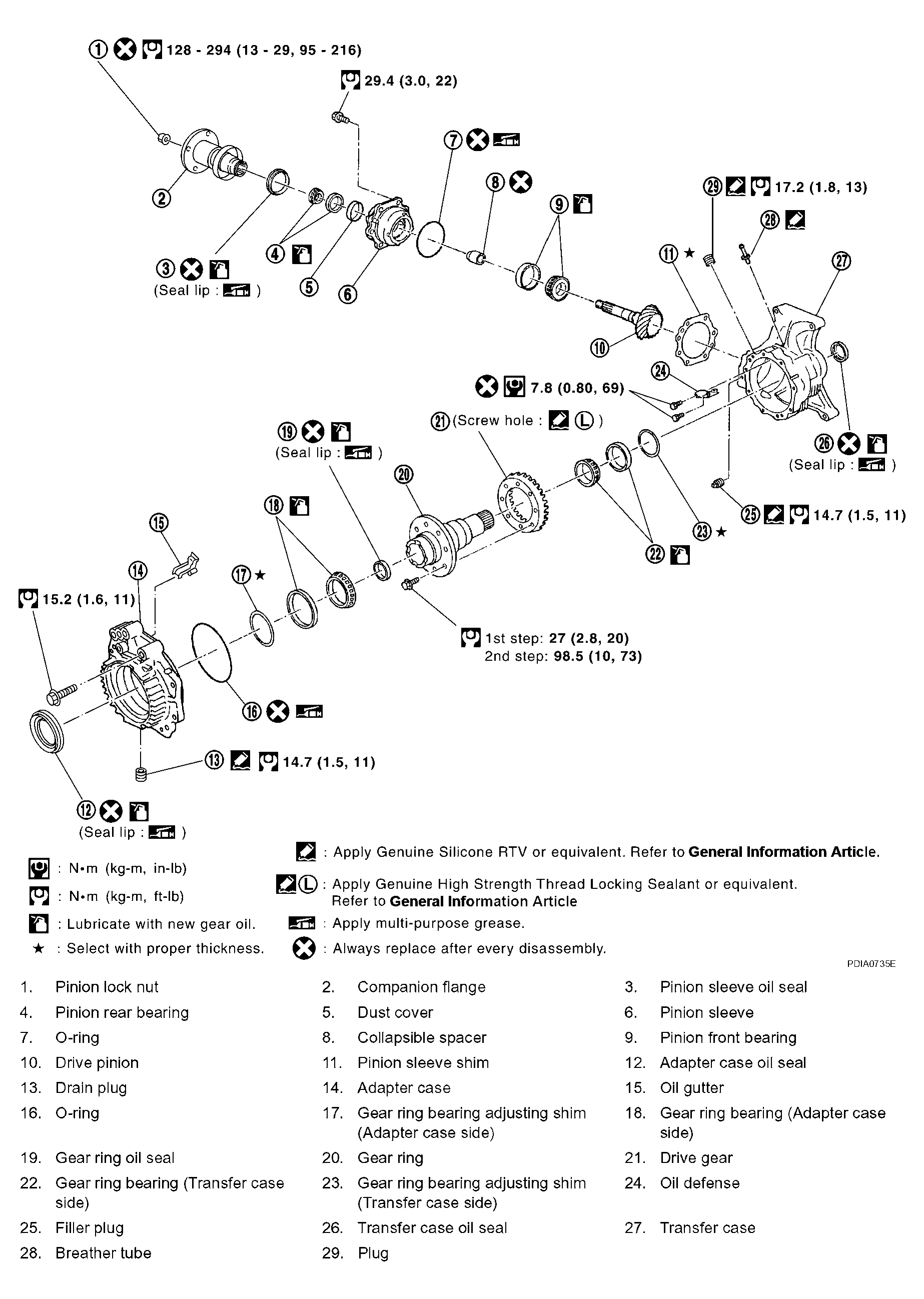

Fig 1: Disassembling Transfer Assembly Components

G04217089

Courtesy of NISSAN MOTOR CO., U.S.A.
