Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

SPECIAL SERVICE TOOLS CHART

Tool number
(Kent-Moore No.)
Tool name		 Description
KV38101700
( - )
Drift
a: 82 mm (3.23 in) dia.
b: 78 mm (3.07 in) dia.

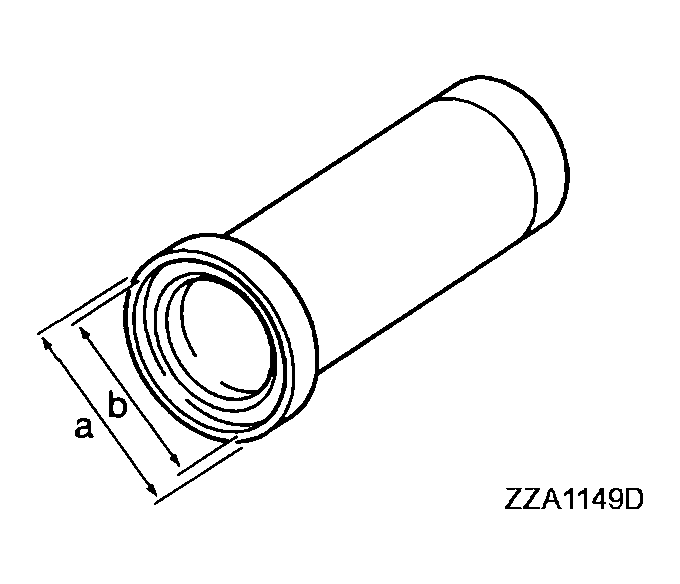

G04217010
 Installing side oil seal (installing adapter case oil seal)
ST3127S000
(J-25765-A)
Preload gauge

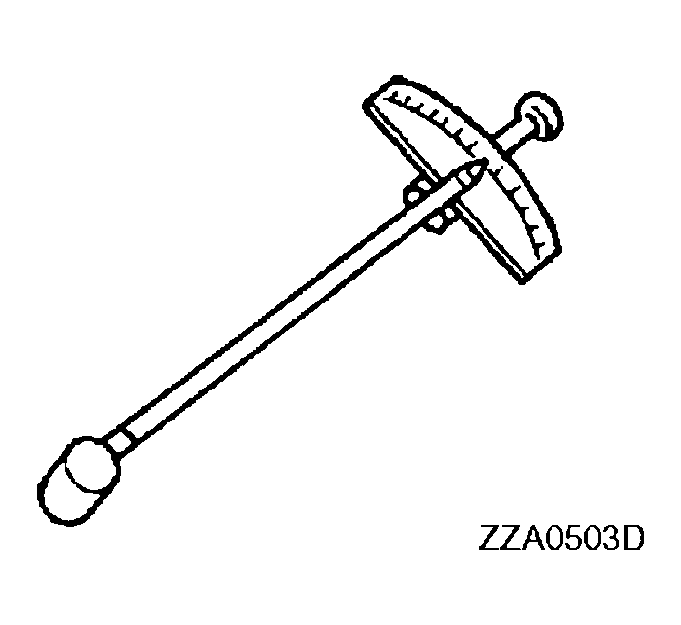

G04217011
 Measuring preload torque
ST33220000
(J-25804-01)
Drift
a: 37 mm (1.46 in) dia.
b: 31 mm (1.22 in) dia.
c: 22 mm (0.87 in) dia.
G04076173
 Removing drive pinion
KV381054S0
(J-34286)
Puller
G04076295
  • Removing pinion rear bearing outer race
  • Removing pinion front bearing outer race
  • Removing gear ring oil seal
ST30031000
(J-22912-01)
Replacer
G04076169
 Removing pinion front bearing inner race
ST33200000
(J-26082)
Drift
a: 60 mm (2.36 in) dia.
b: 44.5 mm (1.752 in) dia.

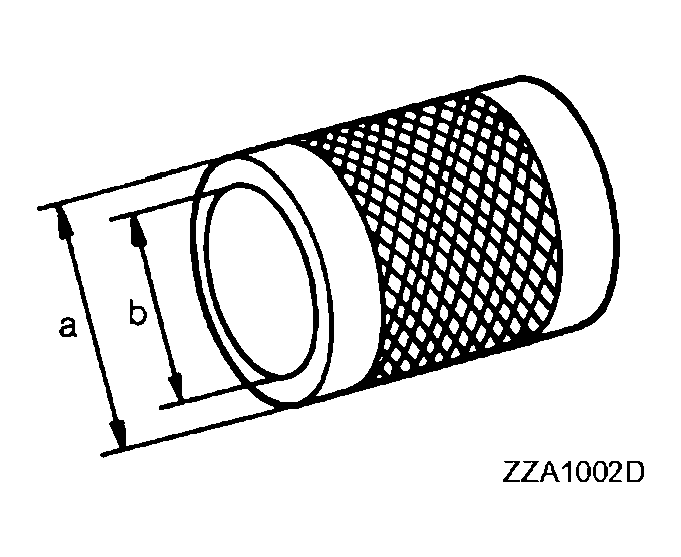

G04217015
  • Removing gear ring bearing inner race (adapter case side)
  • Installing companion flange
ST33061000
(J-8107-2)
Drift
a: 38 mm (1.50 in) dia.
b: 28.5 mm (1.122 in) dia.

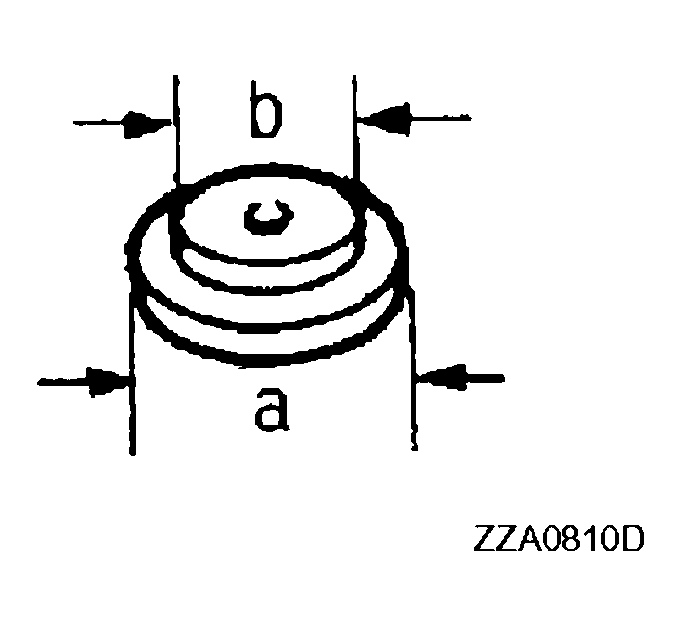

G04217016
 Removing gear ring bearing inner race (transfer case side)
ST30720000
(J-25405)
Drift
a: 77 mm (3.03 in) dia.
b: 55.5 mm (2.185 in) dia.
G04074776
  • Installing gear ring bearing outer race (transfer case side)
  • Installing gear ring bearing inner race (transfer case side)
  • Installing gear ring bearing inner race (adapter case side)
  • Installing gear ring bearing outer race (adapter case side)
  • Installing transfer case oil seal
KV40101840
( - )
Drift
a: 77 mm (3.03 in) dia.
b: 85 mm (3.35 in) dia.

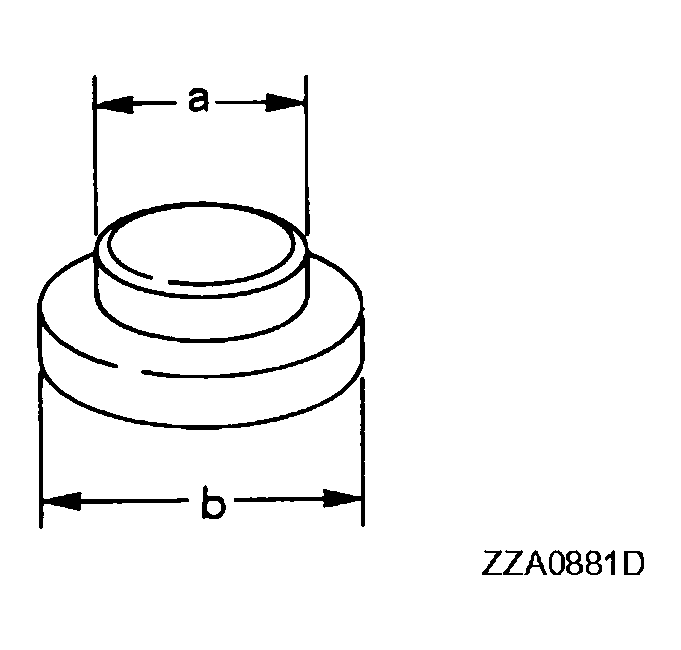

G04217018
 Installing gear ring bearing outer race (transfer case side)
ST33230000
(J-25805-01)
Drift
a: 51 mm (2.01 in) dia.
b: 41 mm (1.61 in) dia.
c: 28.5 mm (1.122 in) dia.
G04076173
 Installing gear ring oil seal
ST27863000
( - )
Drift
a: 74.5 mm (2.933 in) dia.
b: 62.5 mm (2.461 in) dia.
G04149614
 Installing gear ring bearing inner race (transfer case side)
KV40101630
(J-35870)
Drift
a: 68 mm (2.68 in) dia.
b: 60 mm (2.36 in) dia.
G04149614
 Installing gear ring bearing inner race (transfer case side)
KV38102510
( - )
Drift
a: 71 mm (2.80 in) dia.
b: 65 mm (2.56 in) dia.
G04149614
 Installing gear ring bearing inner race (adapter case side)

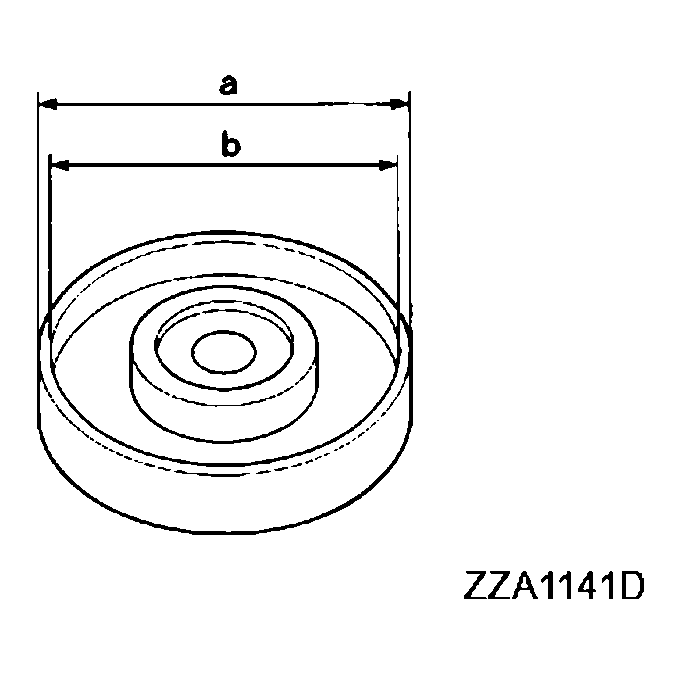

KV40105230
( - )
Drift
a: 92 mm (3.62 in) dia.
b: 86 mm (3.39 in) dia.
G04217023
 Installing gear ring bearing outer race (adapter case side)
KV38100300
(J-25523)
Drift
a: 54 mm (2.13 in) dia.
b: 46 mm (1.81 in) dia.
c: 32 mm (1.26 in) dia.
G04076173
 Installing pinion rear bearing outer race
ST33400001
(J-26082)
Drift
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.

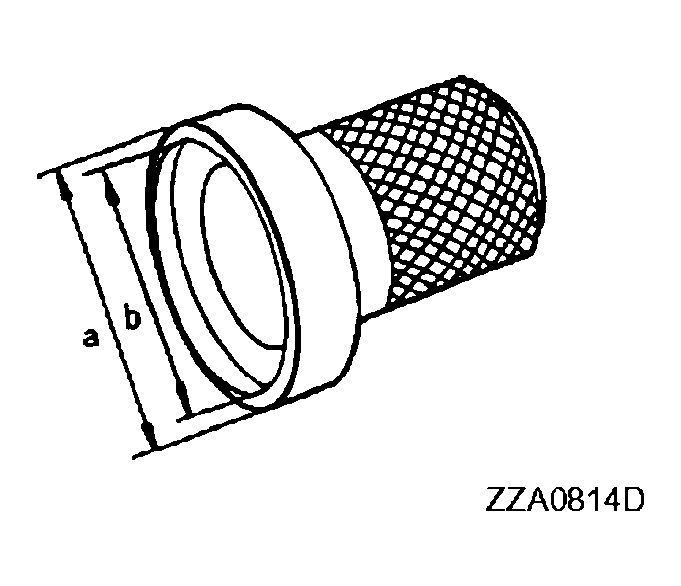

G04217025
  • Installing pinion front bearing outer race
  • Installing pinion sleeve oil seal
ST30901000
(J-26010-01)
Drift
a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.386 in) dia.
G04076310
  • Installing pinion front bearing outer race
  • Installing pinion front bearing inner race
