Removal and Installation: Removal

  1. Remove instrument driver lower panel. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove fuse block (J/B).
  3. Disconnect AWD control unit connector.
  4. Remove AWD control unit.

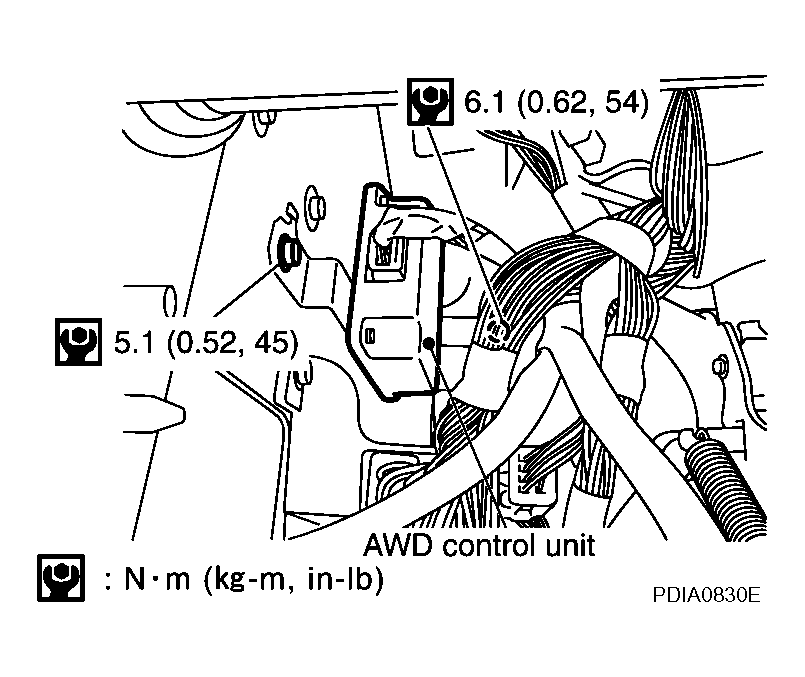

    Fig 1: Removing AWD Control Unit
    G04217081Courtesy of NISSAN MOTOR CO., U.S.A.
