Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Location |
|---|---|
| B7 | Behind left kick panel. See Figure . |

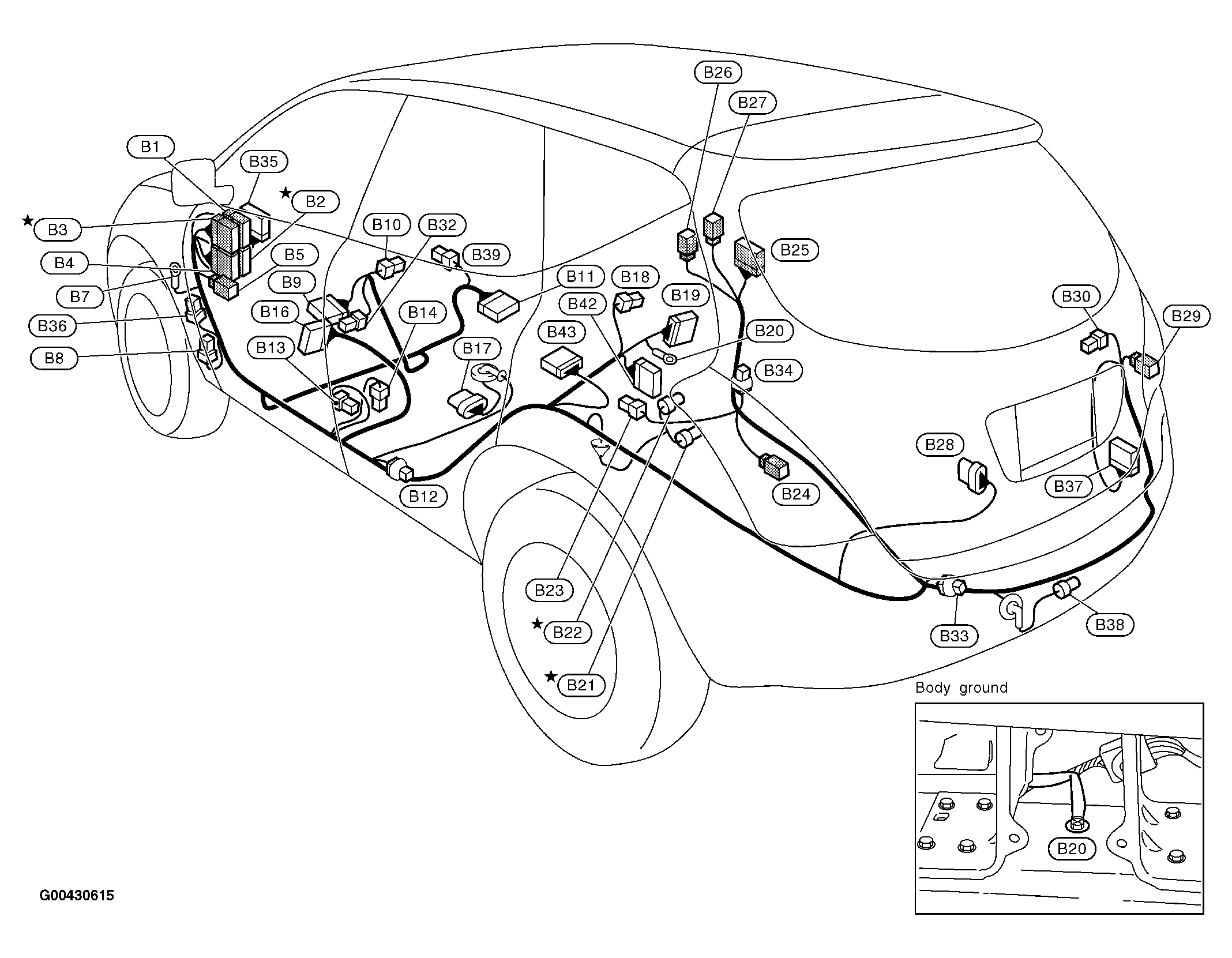

| B20 | Behind left rear seat. See Figure . |

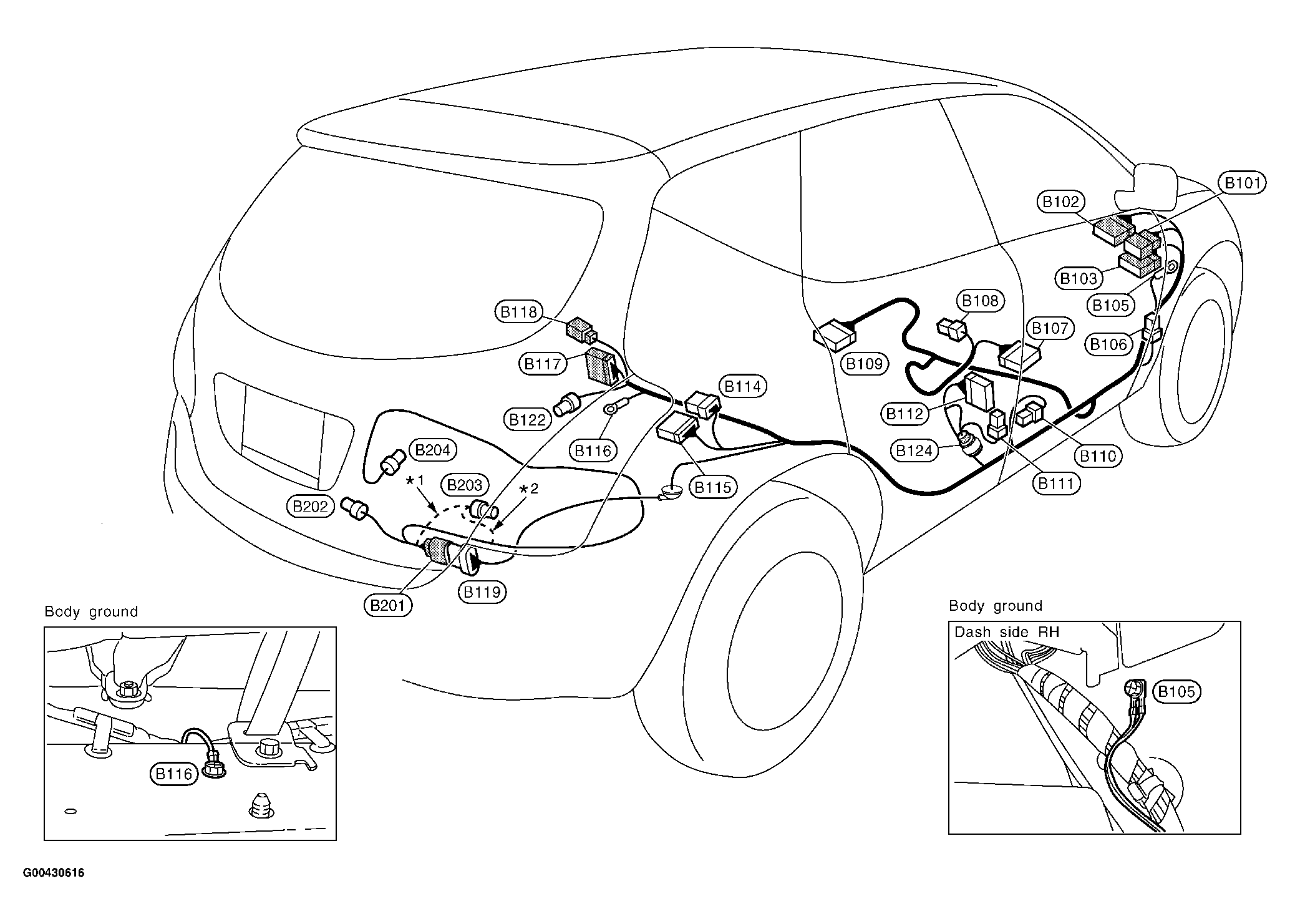

| B105 | Behind right kick panel. See Figure . |
| B113 | At base of right "B" pillar. See Figure . |
| B116 | Behind right rear seat. See Figure . |

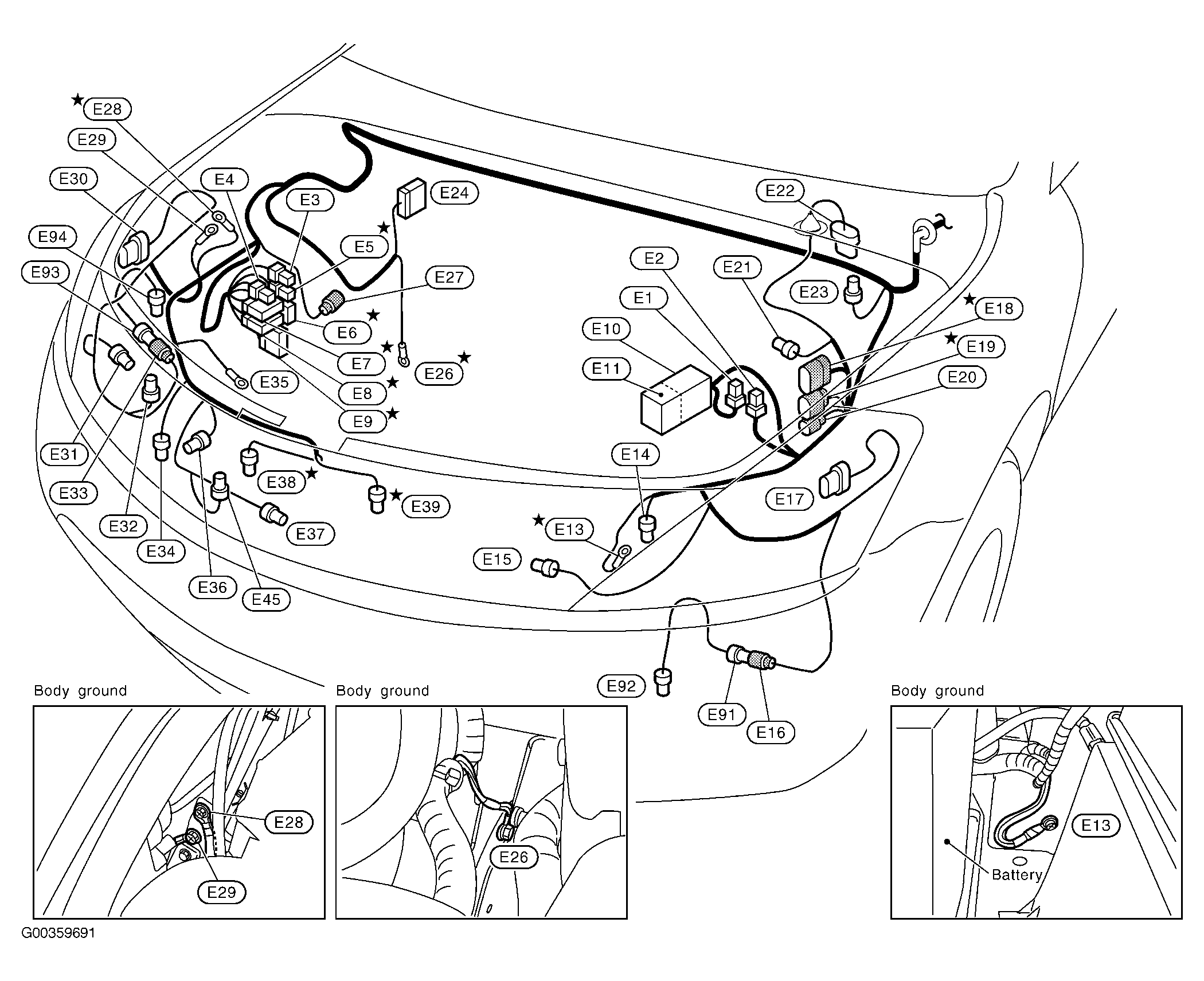

| E13 | At left front corner of engine compartment. See Figure . |
| E26 | At lower right side of engine compartment. See Figure . |
| E28 | At right side of engine compartment. See Figure . |
| E29 | At right side of engine compartment. See Figure . |

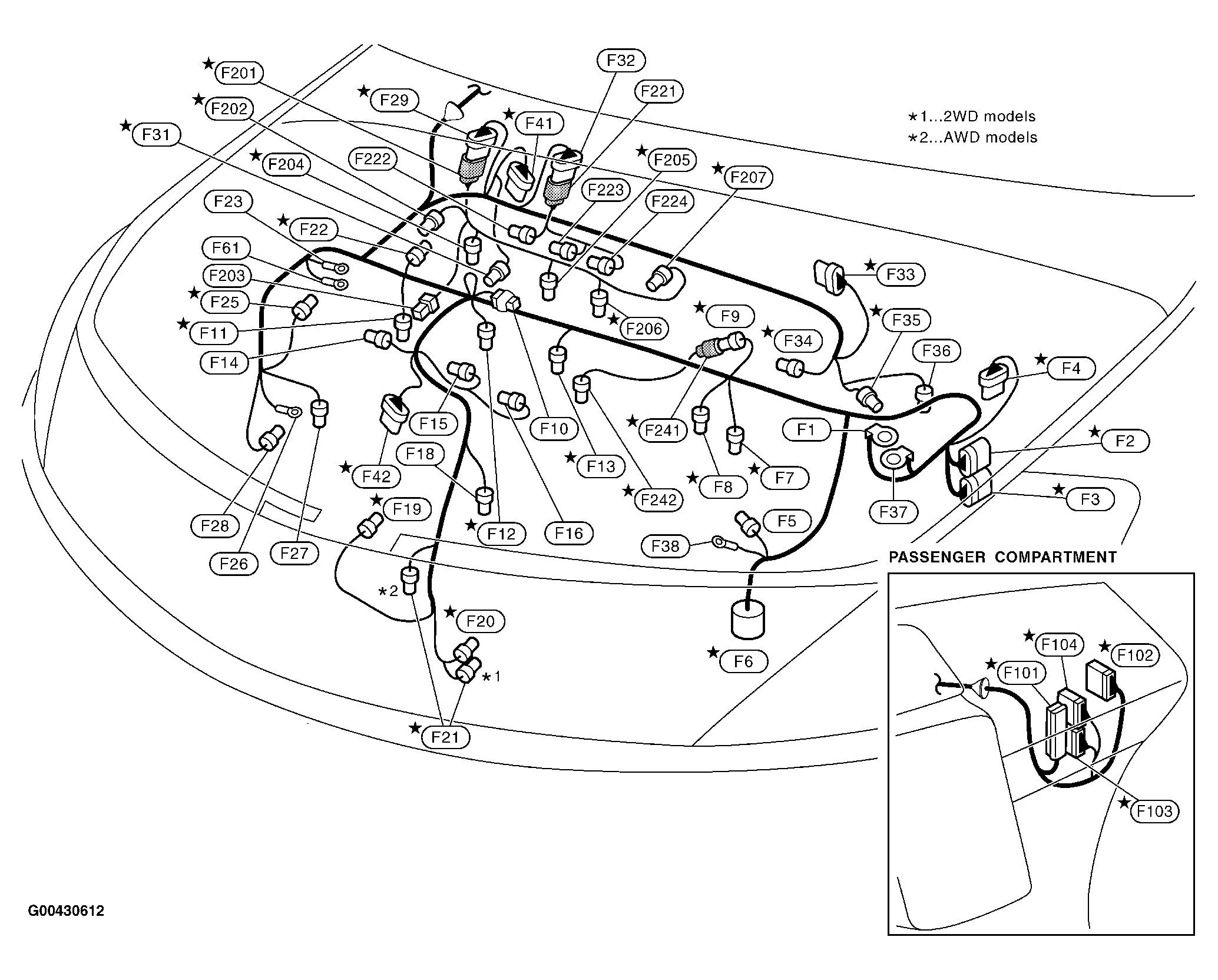

| F23 | On front of engine. See Figure . |
| F61 | On front of engine. See Figure . |

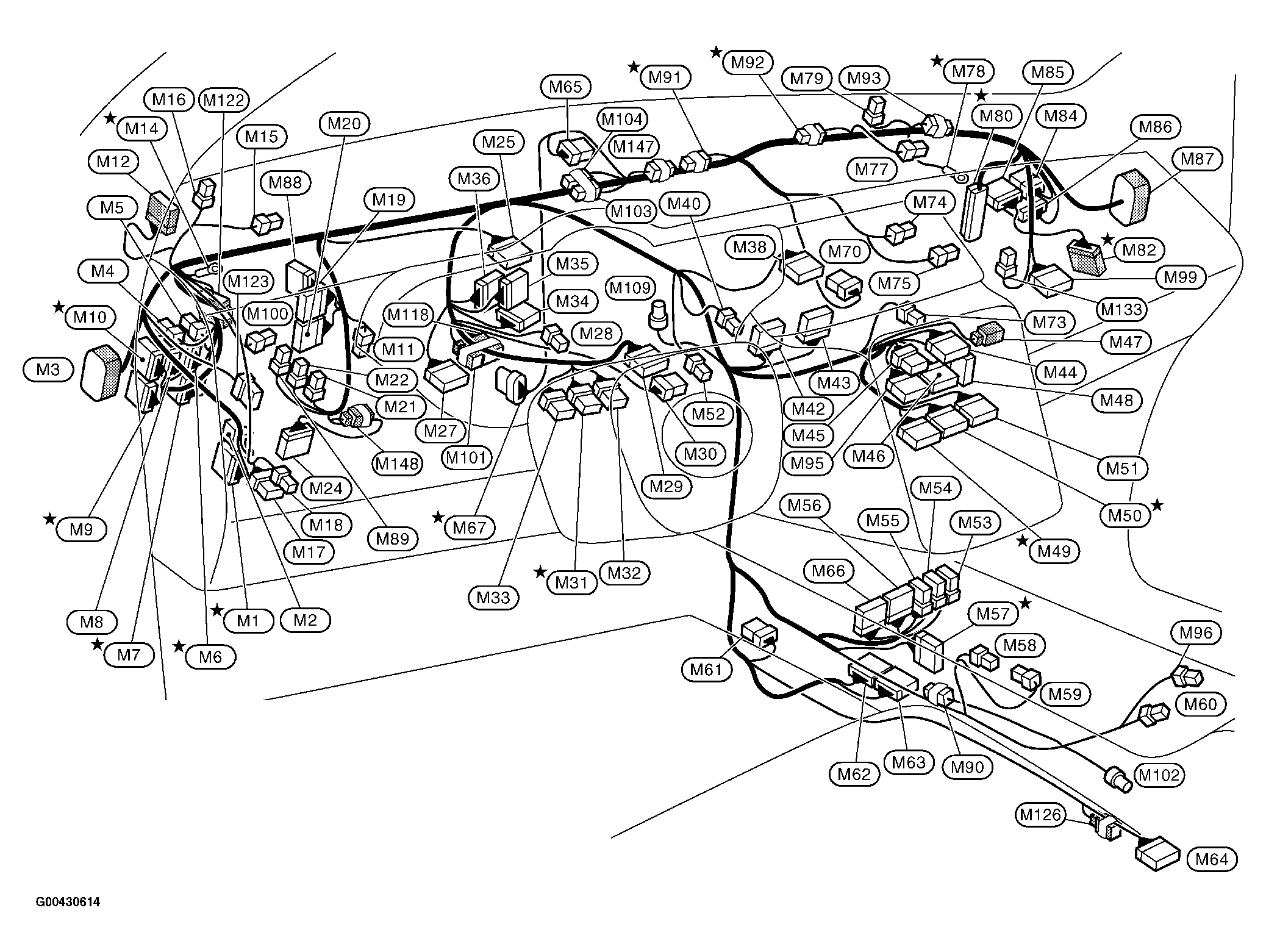

| M14 | Behind left end of dash. See Figure . |
| M78 | Behind right end of dash. See Figure . |
