Inspection Procedure

  1. Turn ignition switch OFF.
  2. Connect GST to data link connector, which is located under LH dash panel near the hood opener handle.

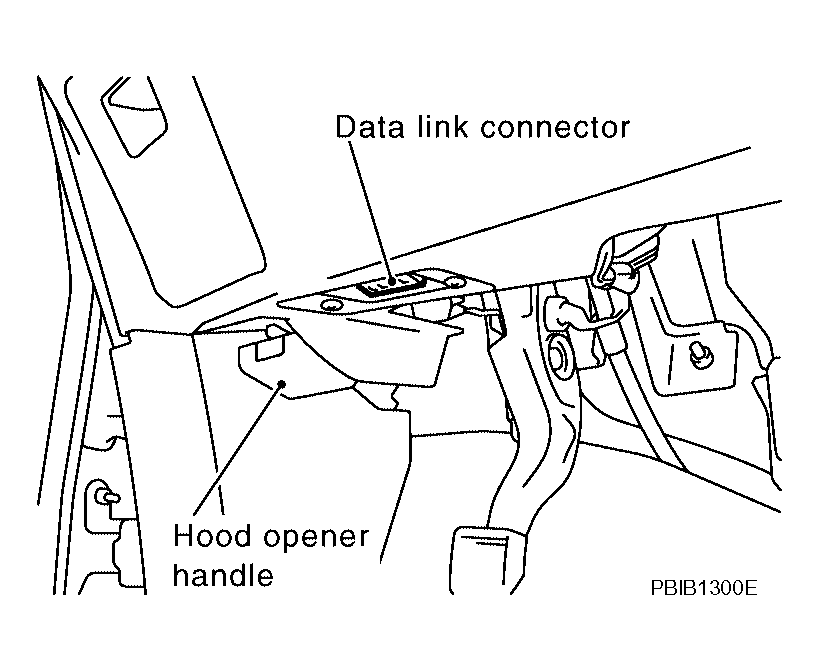

    Fig 1: Locating Data Link Connector
    G04162800Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Enter the program according to instruction on the screen or in the operation manual.

    (*: Regarding GST screens in this section, sample screens are shown.)

    Fig 2: CONSULT-II Screen Display - GST
    G04215888Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Perform each diagnostic mode according to each service procedure.

    For further information, see the GST Operation Manual of the tool maker.

    Fig 3: CONSULT-II Screen Display - Readiness Test
    G04215889Courtesy of NISSAN MOTOR CO., U.S.A.
