Automatic Transmission: Overhaul: Components

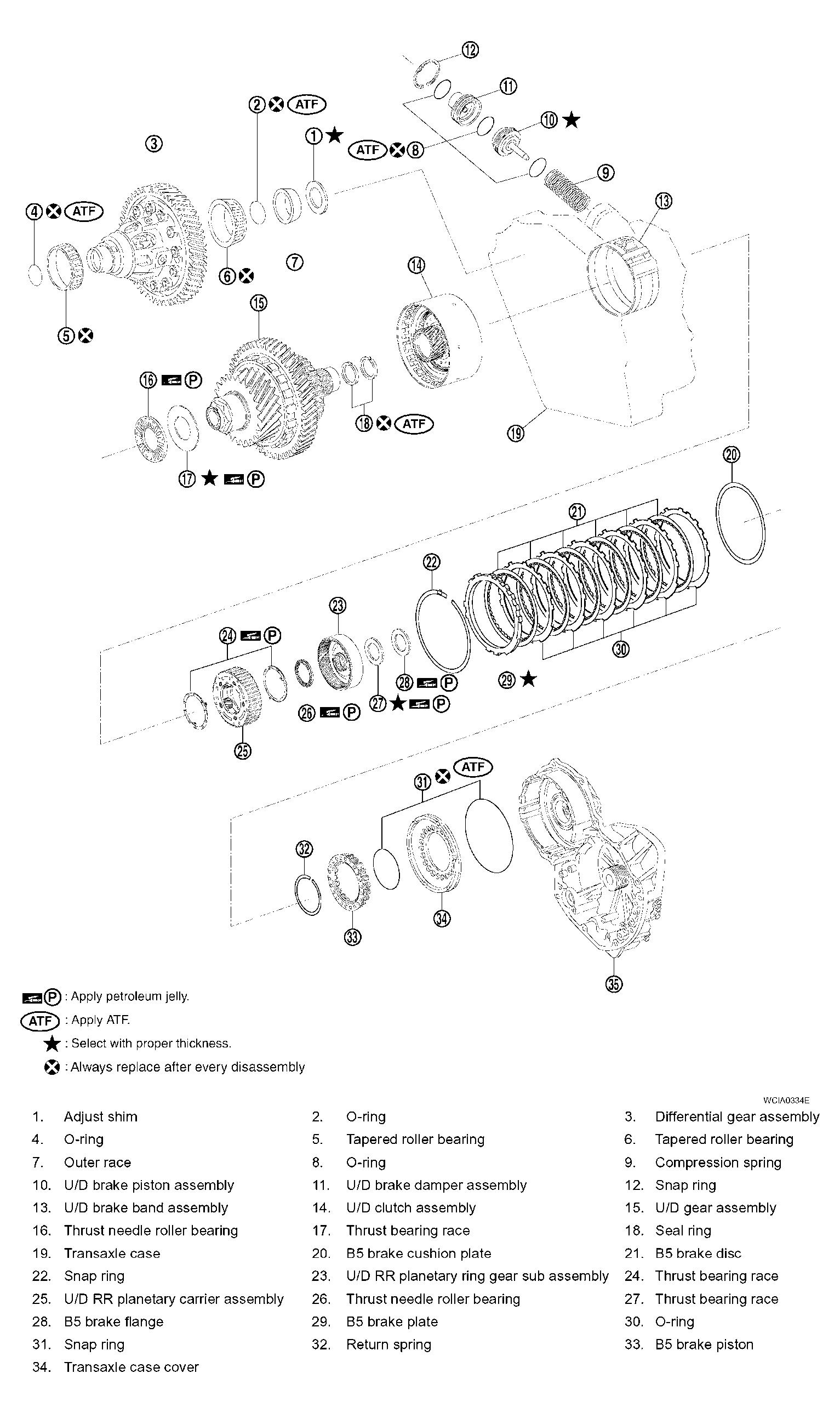

Fig 1: Exploded View Of Overhaul Components (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

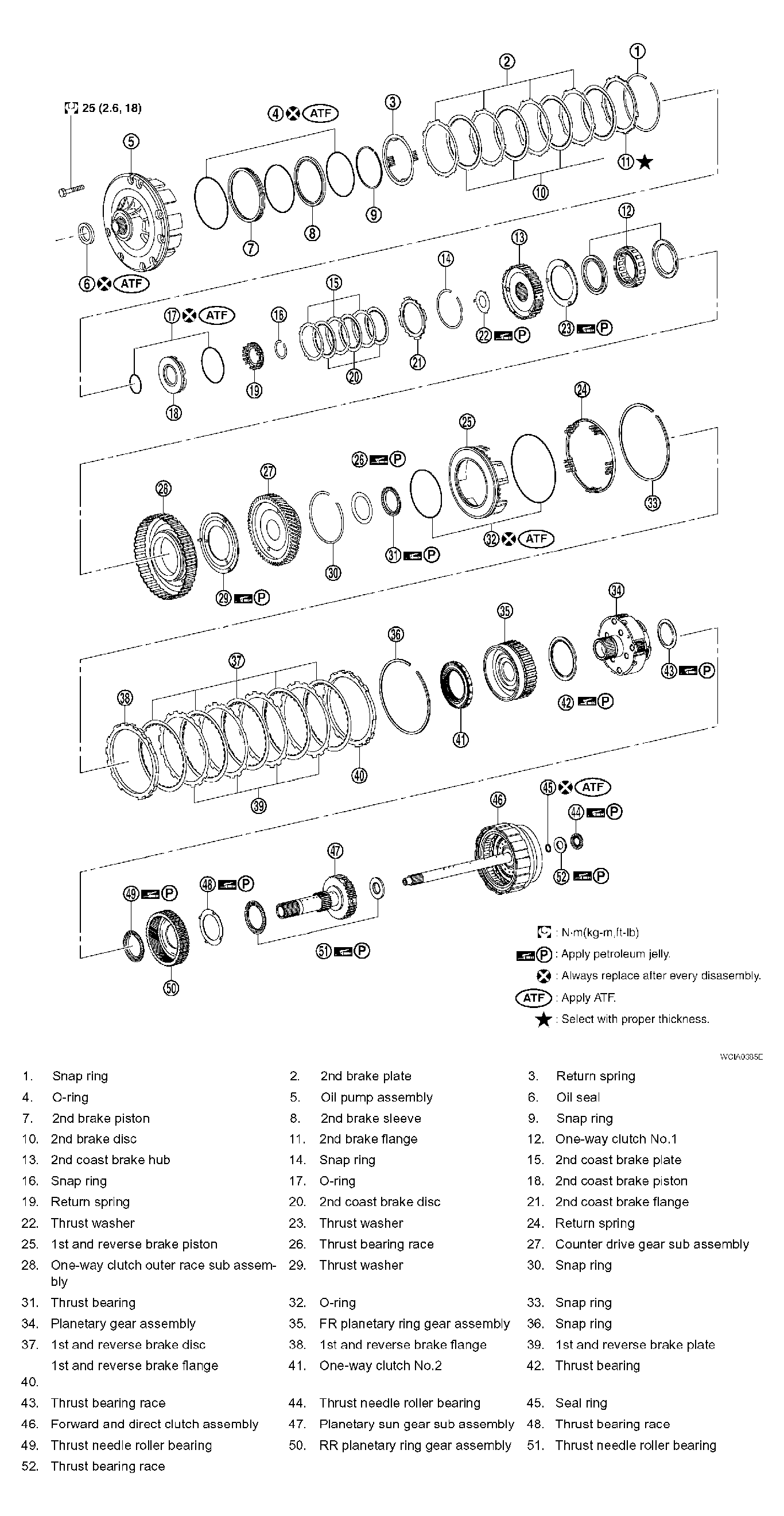

Fig 2: Exploded View Of Overhaul Components (2 Of 3) - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

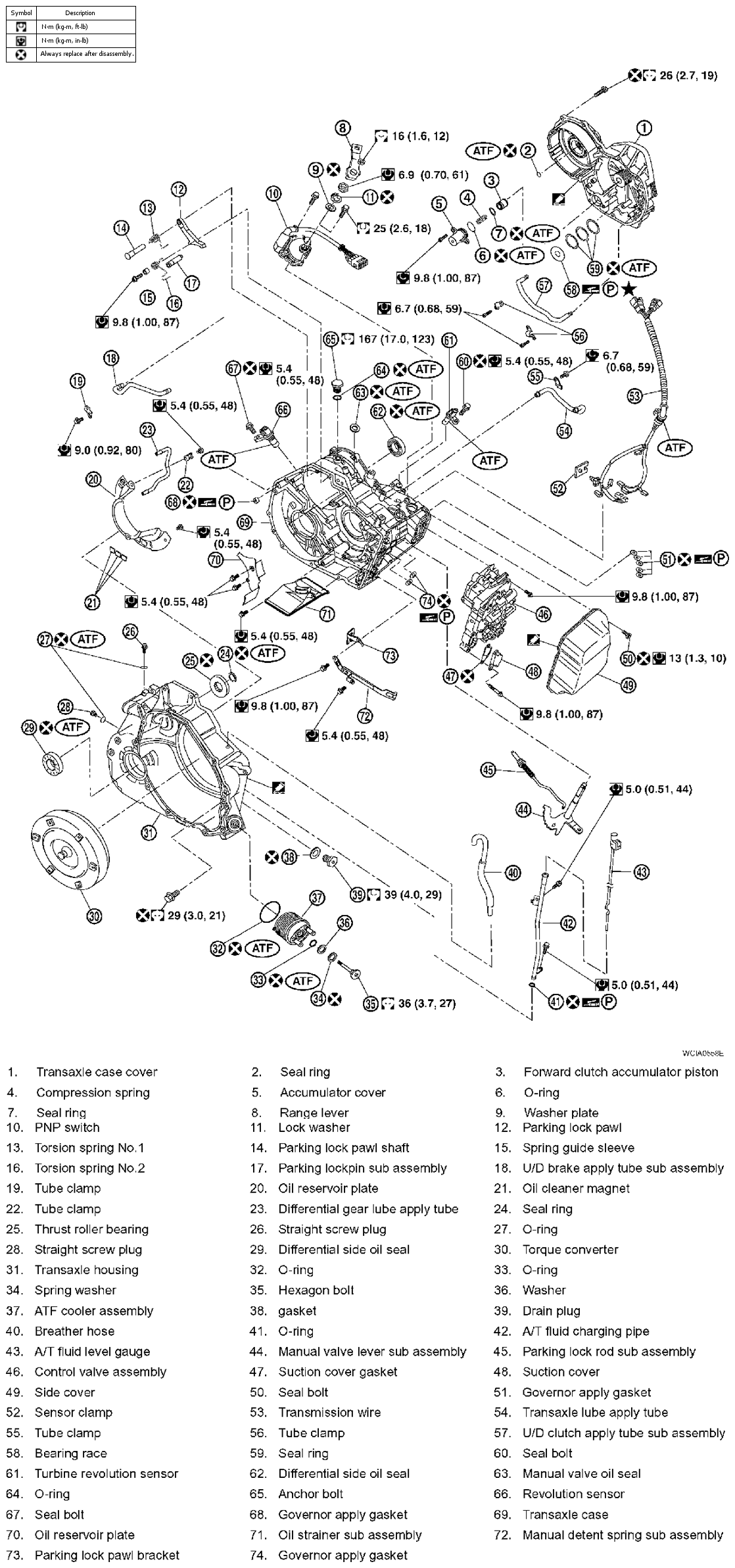

Fig 3: Exploded View Of Overhaul Components (3 Of 3) - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.
