Home >> Nissan-Datsun >> 2006 >> Maxima SL >> Repair and Diagnosis >> Steering >> Power Steering System >> Steering Column >> Removal and installation >> Notes

Removal and installation: Notes

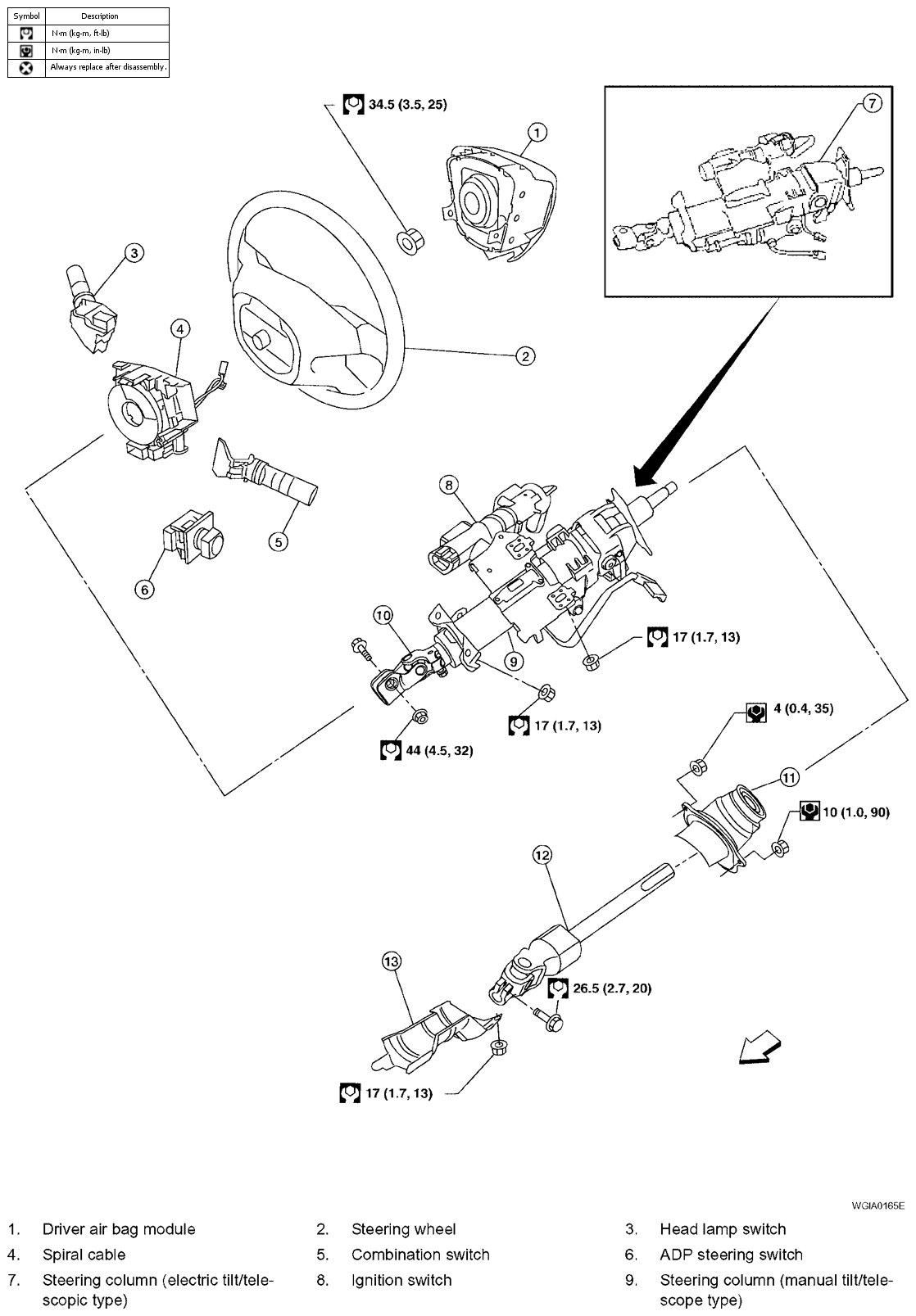

Fig 1: Exploded View Of Steering Column And Components With Torque Specifications

G04162103

Courtesy of NISSAN MOTOR CO., U.S.A.
