Stop Lamp Switch

Disconnect stop lamp switch harness connector.

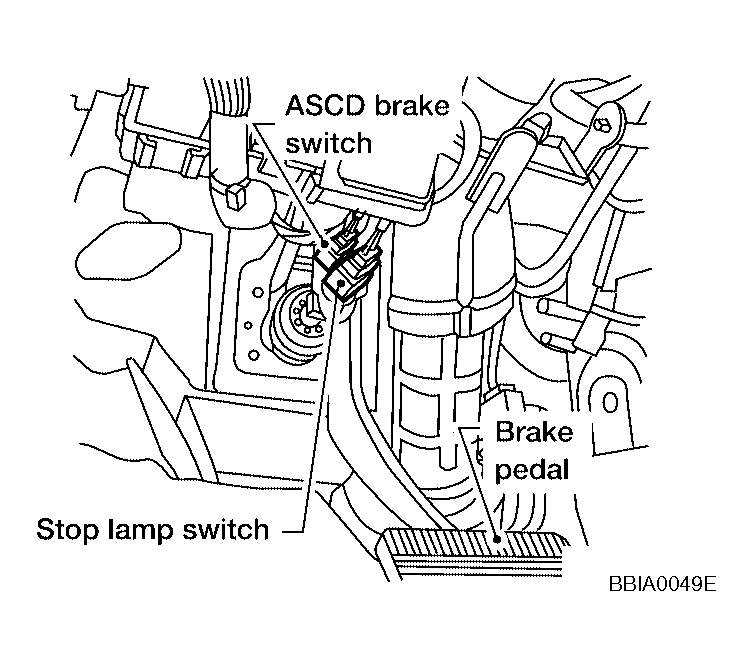

Fig 1: Identifying Stop Lamp Switch & ACSD Brake Switch
Courtesy of NISSAN MOTOR CO., U.S.A.

Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

Fig 2: Checking Continuity Between Stop Lamp Switch Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.

CONTINUITY REFERENCE

Conditions	Continuity
Brake pedal: Fully released	Should not exist
Brake pedal: Depressed	Should exist

If NG, adjust stop lamp switch installation, refer to "BRAKE PEDAL ", and perform step 2 again.
