Brake Pedal
BRAKE PEDAL SPECIFICATIONS
| Application | Unit: mm (in) | |||
|---|---|---|---|---|
| Free height "H"(1) | M/T | 164.1 - 174.1 (6.46 - 6.85) | ||
| A/T | 173.1 - 183.1 (6.81 - 7.21) | |||
| Pedal height (with engine running, brake pedal force 490 N {50 kg-f, 110 lb-f) "H" | M/T | More than 84 (3.31) | ||
| A/T | More than 90.3 (3.55) | |||
| Clearance "I1 or I2" between pedal stopper and threaded end of stop lamp switch or ASCD switch | 0.74 - 1.96 (0.0291 - 0.0772) | |||
| Pedal play | 3 - 11 (0.12 - 0.43) | |||

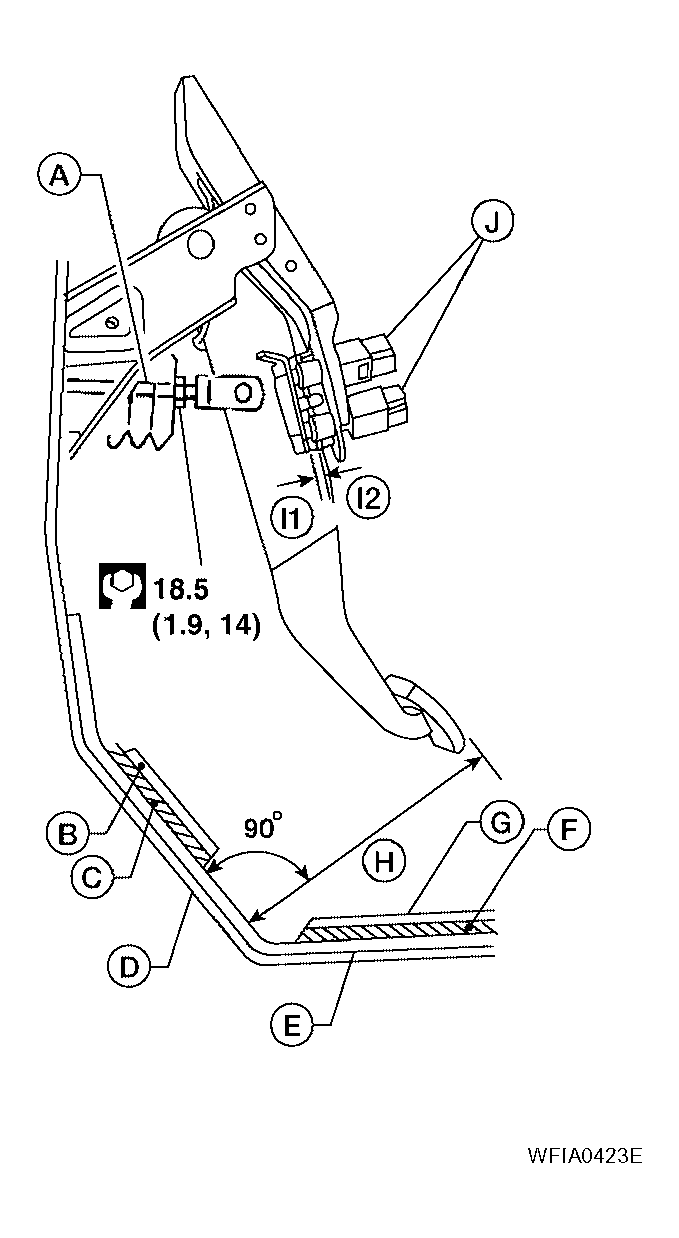

A: Input rod B: Floor carpet C: Dash Insulator D: Floor Panel E: Dash reinforcement panel F: Dash insulator G: Floor carpet I1, I2: Gap J: Stop lamp switch and ASCD switch |
||||
