Light Warning Chime Does Not Operate

CHECK WARNING CHIME OPERATION
Check key warning chime and seat belt warning chime functions.

Do key warning chime and seat belt warning chime sound?

YES: GO TO 2.

NO: Go to "ALL WARNING CHIMES DO NOT OPERATE ".
CHECK BCM INPUT SIGNAL
1. Select "BCM".
2. With "DATA MONITOR" of "BUZZER", confirm "LIGHT SW 1ST" status changes when the lighting switch is moved from ON (1st position) to OFF.
  Lighting switch ON (1st position): LIGHT SW 1ST ON

  Lighting switch OFF: LIGHT SW 1ST OFF

  OK or NG

  OK: Replace the BCM. Refer to "BCM ".

  NG: Check lighting switch. Refer to "COMBINATION SWITCH ".

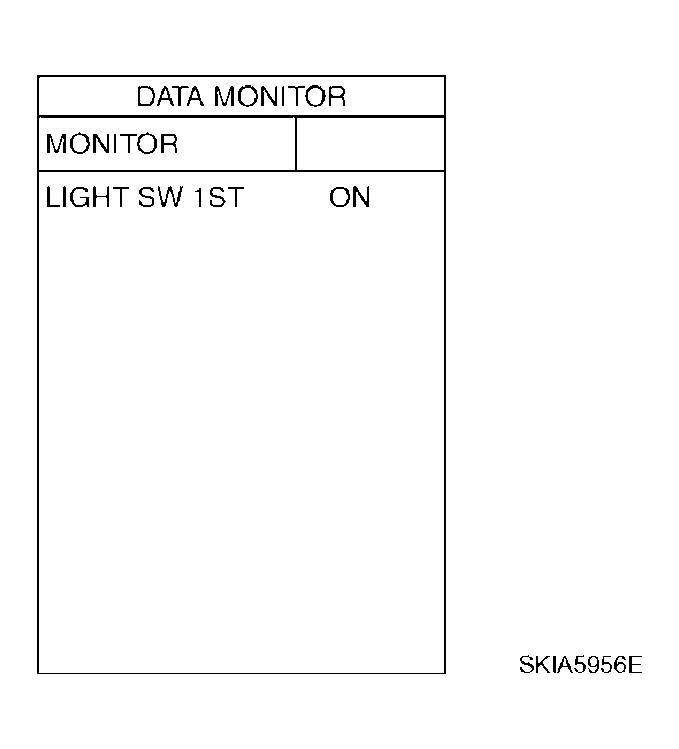

  Fig 1: CONSULT II DATA MONITOR Screen
  Courtesy of NISSAN MOTOR CO., U.S.A.
