Key Warning Chime Does Not Operate

  1. CHECK FUSE

    Check if the key switch 10A fuse [No. 21, located in the fuse block (J/B)] is blown. Refer to "WIRING DIAGRAM - CHIME - ".

    Is the fuse blown?

    YES:  Replace the fuse. Be sure to repair the cause of malfunction before installing new fuse.

    NO:  GO TO 2.

  2. CHECK WARNING CHIME OPERATION

    With key removed from the ignition and the front door LH open, turn the lighting switch to 1st or 2nd position.

    Does warning chime sound?

    YES:  GO TO 3.

    NO:  Go to "ALL WARNING CHIMES DO NOT OPERATE " or "KEY WARNING CHIME AND LIGHT WARNING CHIME DO NOT OPERATE (SEAT BELT WARNING CHIME DOES OPERATE) ".

  3. CHECK BCM INPUT SIGNAL

    With CONSULT-II

    Check key switch ("KEY ON SW") in "DATA MONITOR" mode with CONSULT-II.

    1. Select "BCM".
    2. With "DATA MONITOR" of "BUZZER", confirm "KEY ON SW" changes when the key is inserted/removed from the ignition key cylinder.

      When key is inserted in ignition key cylinder: KEY ON SW ON

      When key is removed from ignition key cylinder: KEY ON SW OFF

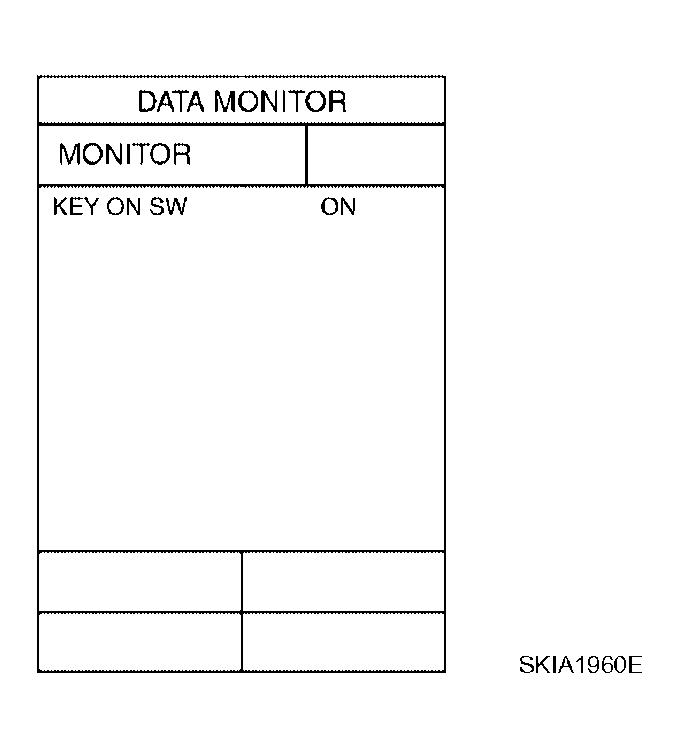

    Fig 1: CONSULT II DATA MONITOR Screen
    G04163614Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    Check voltage between BCM harness connector M18 terminal 37 and ground.

    BCM CONNECTOR AND GROUND VOLTAGE

    Terminals Condition Voltage (V)
    (+) (-)
    Connector Terminal
    M18 37 Ground Key is inserted Battery voltage
    Key is removed 0

    OK or NG

    OK:  Replace the BCM. Refer to "BCM ".

    NG:  GO TO 4.

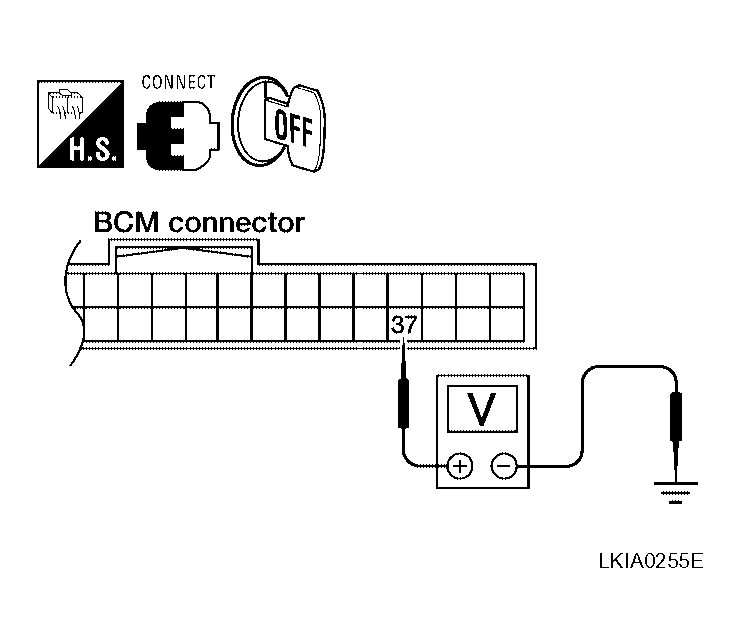

    Fig 2: Identifying Voltage Between BCM Connector M18 Terminal 37 And Ground
    G04163615Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK KEY SWITCH
    1. Disconnect key switch and key lock solenoid connector.
    2. Check continuity between key switch and key lock solenoid terminals 3 and 4.
    KEY SWITCH CONTINUITY

    Terminals Condition Continuity
    3 4 Key is inserted Yes
    Key is removed No

    OK or NG

    OK:  GO TO 5.

    NG:  Replace the key switch and key lock solenoid.

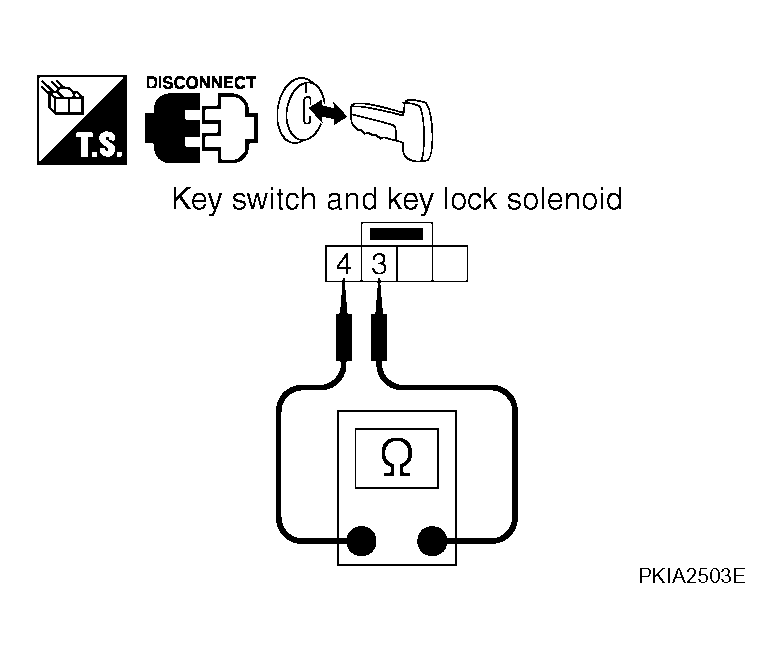

    Fig 3: Identifying Continuity Between Key Switch And Key Lock Solenoid Terminals 3 And 4
    G04163616Courtesy of NISSAN MOTOR CO., U.S.A.
  5. CHECK KEY SWITCH CIRCUIT
    1. Disconnect BCM connector M18.
    2. Check continuity between BCM harness connector M18 terminal 37 and key switch and key lock solenoid harness connector M27 terminal 4.

      Continuity should exist  .

    3. Check continuity between BCM harness connector M18 terminal 37 and ground.

      Continuity should not exist  .

    OK or NG

    OK:  GO TO 6.

    NG:  Repair harness or connector.

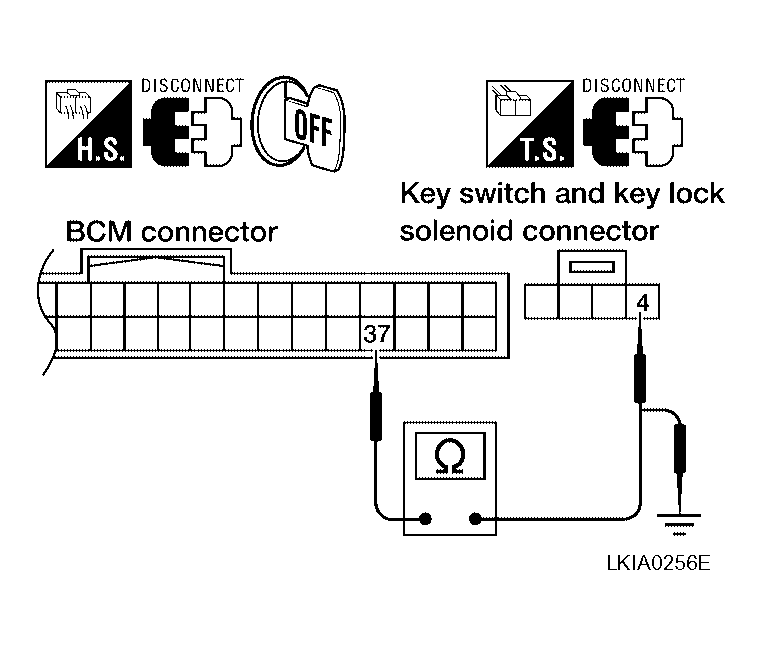

    Fig 4: Identifying Key Switch Circuit
    G04163617Courtesy of NISSAN MOTOR CO., U.S.A.
  6. CHECK KEY SWITCH POWER SUPPLY CIRCUIT

    Check voltage between key switch and key lock solenoid harness connector M27 terminal 3 and ground.

    Battery voltage should exist  .

    OK or NG

    OK:  Replace the BCM. Refer to "BCM ".

    NG:  Check harness for open between key switch and key lock solenoid and fuse.

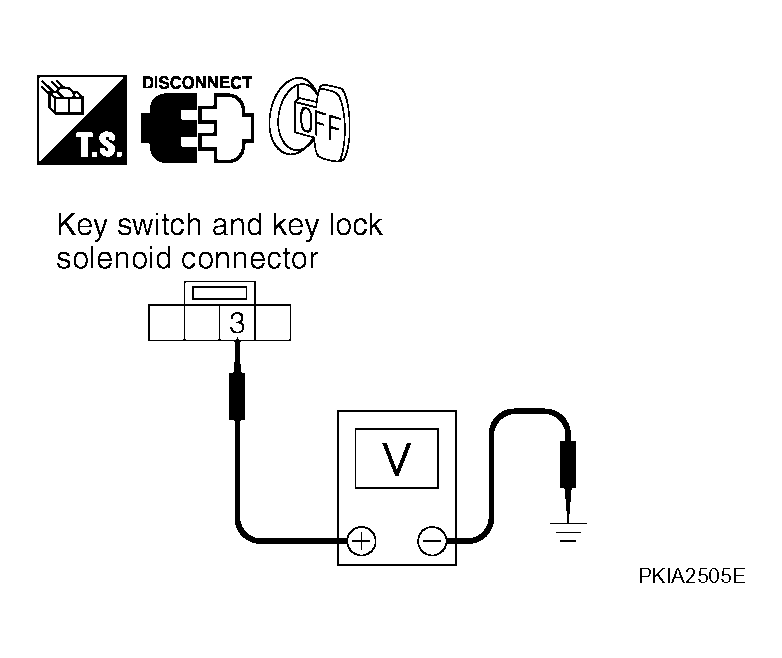

    Fig 5: Identifying Voltage Between Key Switch And Key Lock Solenoid Connector M27 Terminal 3 And Ground
    G04163618Courtesy of NISSAN MOTOR CO., U.S.A.
