Water Temperature Signal Inspection

1. Start engine and select "METER A/C AMP" on CONSULT-II.
2. Using "W TEMP METER" on the data monitor, compare the value of data monitor with water temperature gauge pointer of combination meter.
   WATER TEMPERATURE GAUGE POINTER POSITION AND DATA MONITOR REFERENCE VALUE



   Water temperature gauge pointer	Reference value of data monitor °C (°F) (Approx.)
   Hot	130 (266)
   Middle	70-105 (158-221)
   Cold	50 (122)

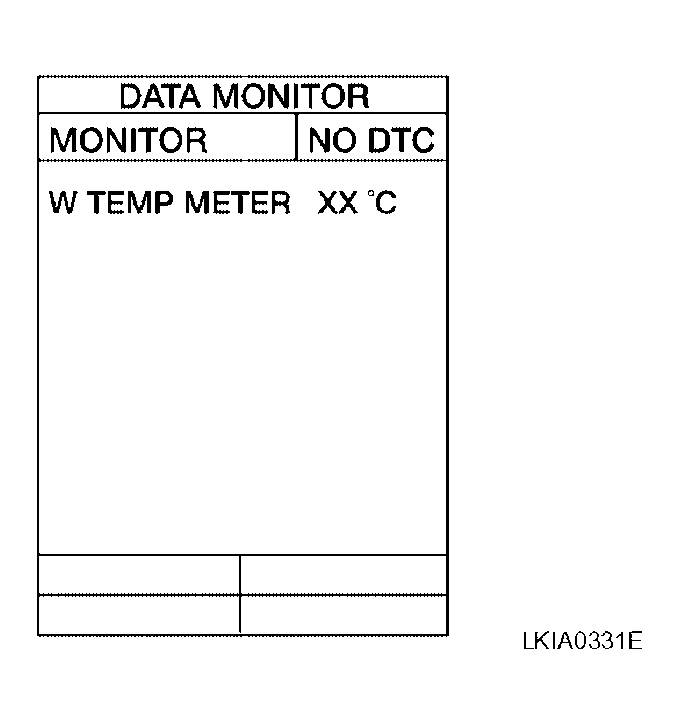

Fig 1: CONSULT II DATA MONITOR Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK:  GO TO 2.

NG:  Replace the combination meter. Refer to "COMBINATION METER ".

1. Select "ENGINE" on CONSULT-II.
2. Using "COOLAN TEMP/S" on the data monitor, print out the CONSULT-II screen.
3. Select "METER A/C AMP" on CONSULT-II.
4. Using "W TEMP METER" on the data monitor, compare the value of data monitor with that of the "COOLAN TEMP/S".

OK or NG

OK:  Perform ECM self-diagnosis. Refer to "SELF-DIAG RESULTS MODE ".

NG:  Replace the unified meter and A/C amp. Refer to "UNIFIED METER AND A/C AMP. ".

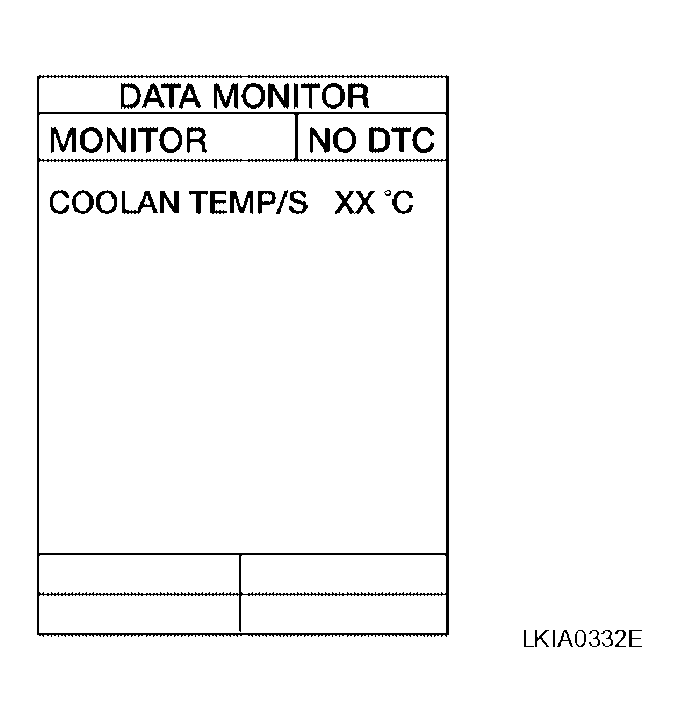

Fig 2: CONSULT II DATA MONITOR Screen

Courtesy of NISSAN MOTOR CO., U.S.A.
