How To Change The Display For ODO/Trip Meter

The vehicle speed signal and the memory signals from the meter memory circuit are processed by the combination meter and the mileage is displayed.
Depressing the ODO/trip meter switch toggles the mode in the following order.

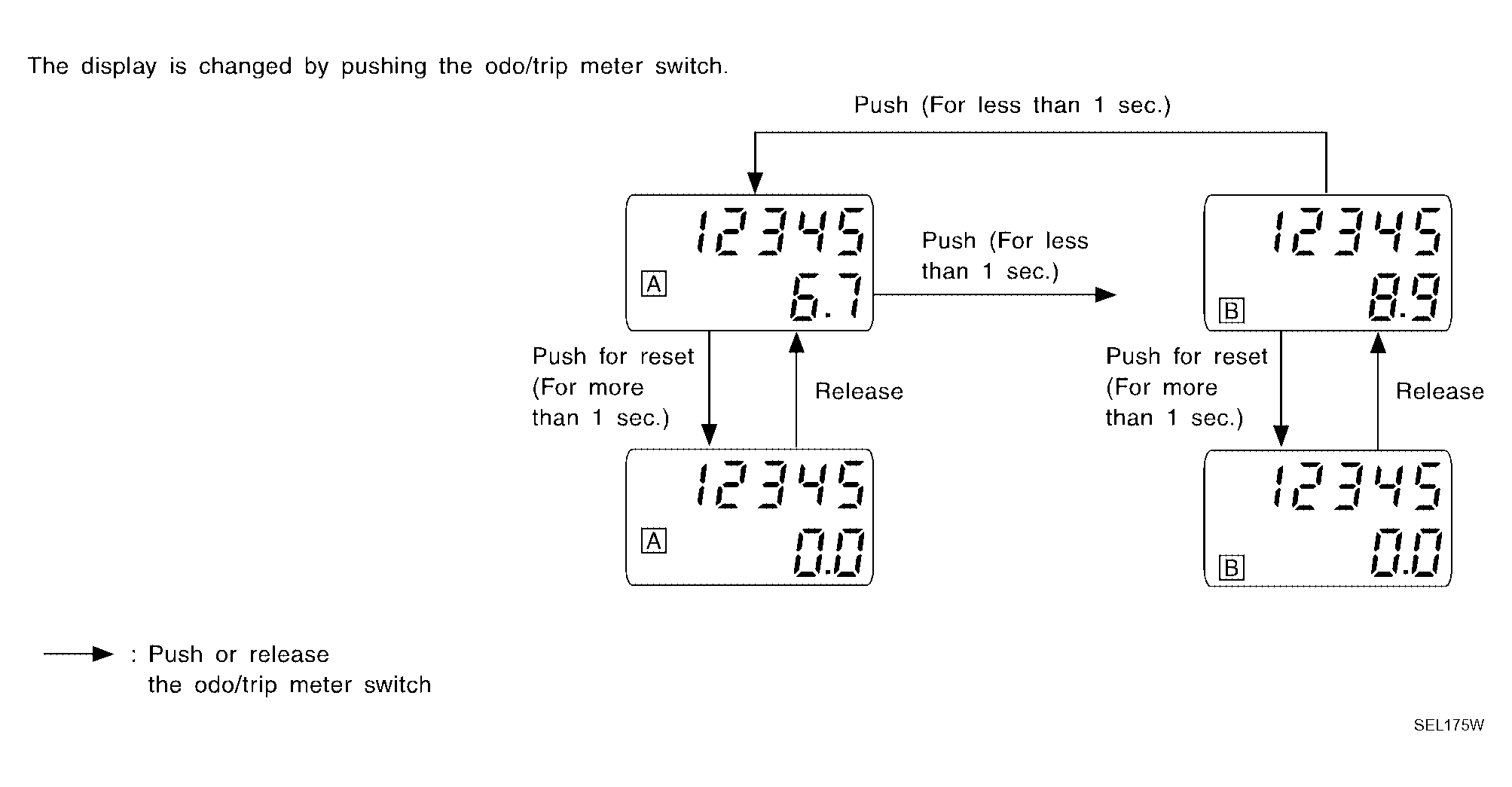

Fig 1: Display - ODO/Trip Meter
Courtesy of NISSAN MOTOR CO., U.S.A.
The ODO/trip meter display mode toggling and trip display resetting can be identified by the amount of time that elapses from pressing the ODO/trip meter switch (1) to releasing it.
When resetting with trip A displayed, only trip A display is reset. (Trip B operates the same way.)

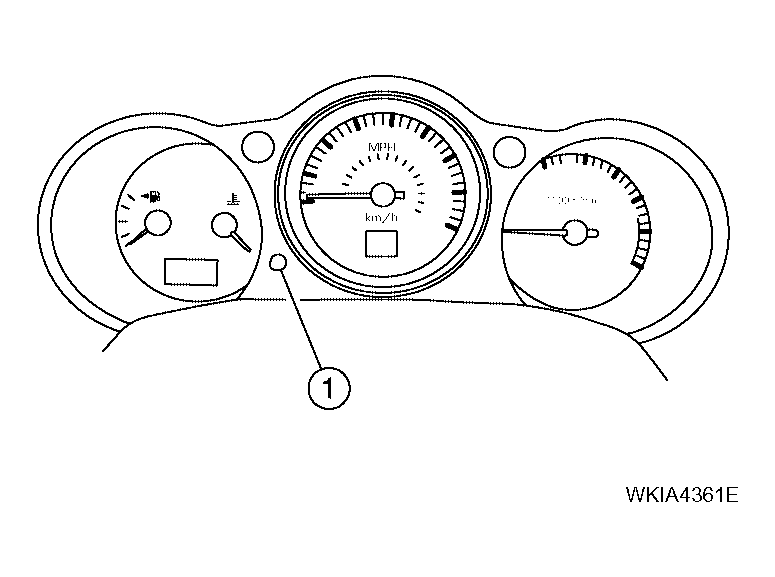

Fig 2: Identifying ODO/Trip Meter Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
