Removal And Installation: Removal

  1. Disconnect battery negative terminal.
  2. Remove the combination meter covers (1).
  3. Remove combination meter assembly, using power tool.(2).

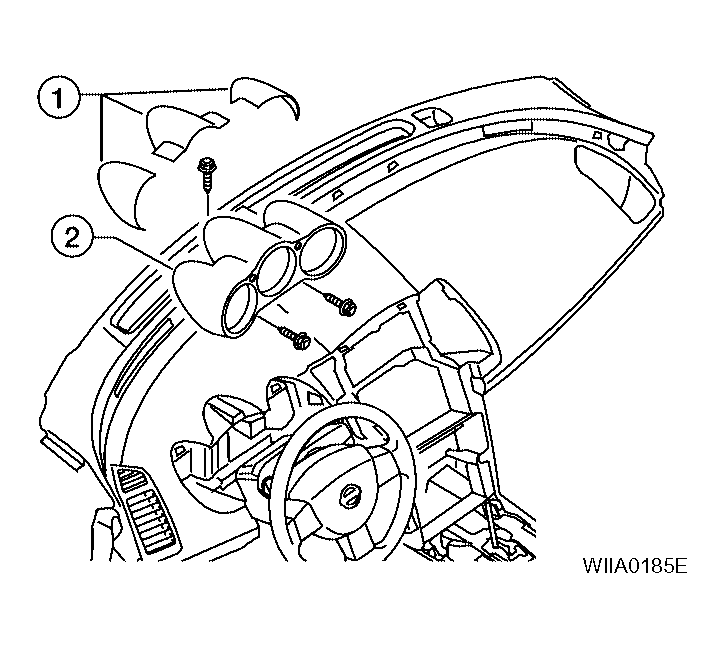

    Fig 1: Identifying Combination Meter
    G04163560Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Disconnect electrical connector.
  5. Remove combination meter.
