Main Power Window and Door Lock/Unlock Switch Power Supply Circuit Check System

CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
2. Check voltage between main power window and door lock/unlock switch connector D7 terminal 10, D8 terminal 19 and ground.
  10 - Ground: Battery voltage

  19 - Ground: Battery voltage
OK or NG

OK: GO TO 2.

NG: Repair or replace harness.

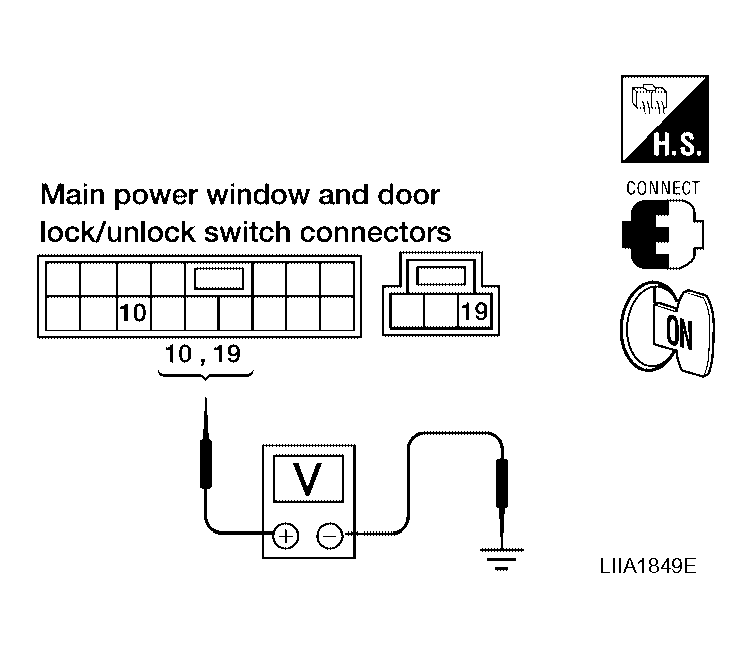

Fig 1: Identifying Voltage Between Main Power Window And Door Lock/Unlock Switch Connector D7 Terminal 10, D8 Terminal 19 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect main power window and door lock/unlock switch.
3. Check continuity between main power window and door lock/unlock switch connector D8 terminal 17 and ground.
  17 - Ground: Continuity should exist .
OK or NG

OK: GO TO 3.

NG: Repair or replace harness.

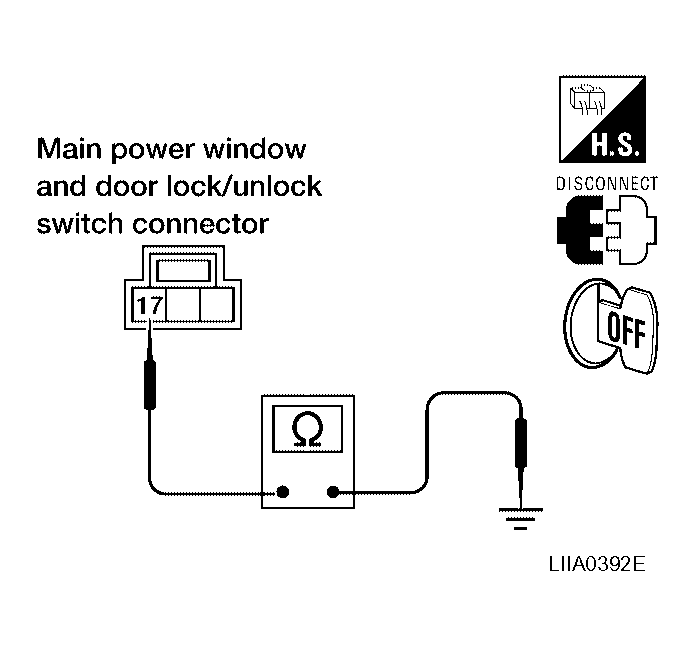

Fig 2: Identifying Continuity Between Main Power Window And Door Lock/Unlock Switch Connector D8 Terminal 17 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH POWER SUPPLY CIRCUIT
1. Disconnect BCM.
2. Check continuity between BCM connector M19 terminals 53, 54 and main power window and door lock/unlock switch connector D7 terminal 10 and D8 terminal 19.
  53 - 10: Continuity should exist .

  54 - 19: Continuity should exist .
OK or NG

OK: GO TO 4.

NG: Repair or replace harness.

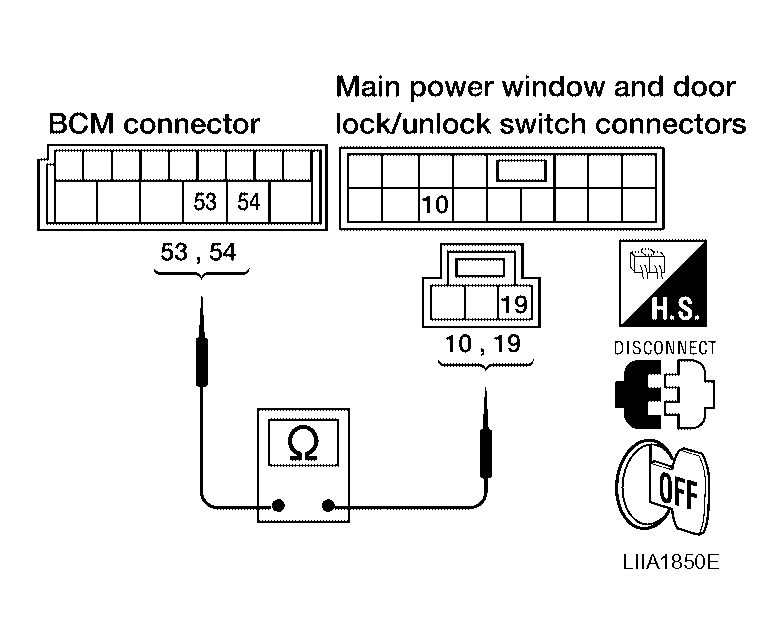

Fig 3: Identifying Main Power Window And Door Lock/Unlock Switch Power Supply Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK BCM OUTPUT SIGNAL
1. Connect BCM.
2. Turn ignition switch ON.
3. Check voltage between BCM connector M19 terminals 53, 54 and ground.
  53 - Ground: Battery voltage

  54 - Ground: Battery voltage
OK or NG

OK: Check the condition of the harness and the connector.

NG: Replace BCM. Refer to "BCM ".

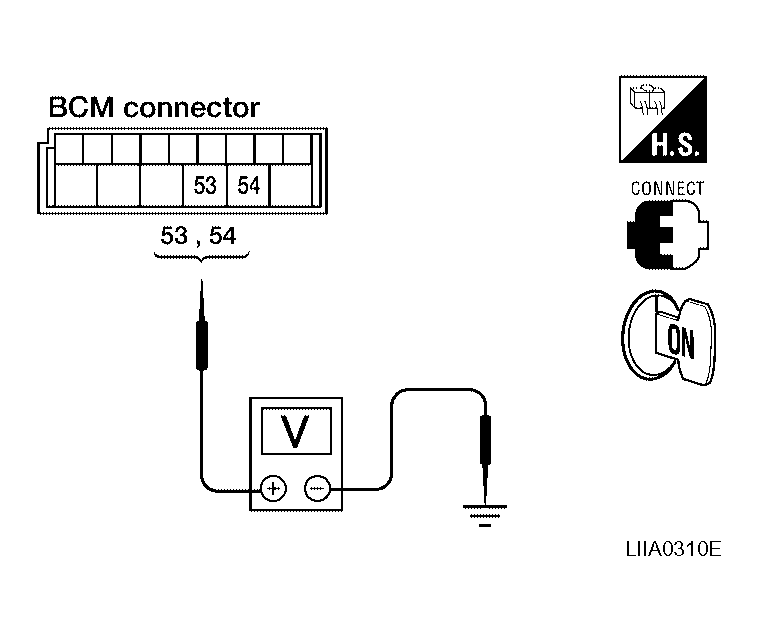

Fig 4: Identifying Voltage Between BCM Connector M19 Terminals 53, 54 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
