Front Power Window Motor RH Circuit Check

  1. CHECK POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH RH OUTPUT SIGNAL
    1. Turn ignition switch ON.
    2. Check voltage between power window and door lock/unlock switch RH connector D105 terminals 8, 9 and ground.
    CONNECTOR TERMINALS CONDITION REFERENCE CHART

    Connector Terminals Condition Voltage (V) (Approx.)
    (+) (-)
    D105 9 Ground Closing Battery voltage
    Opening 0
    8 Closing 0
    Opening Battery voltage

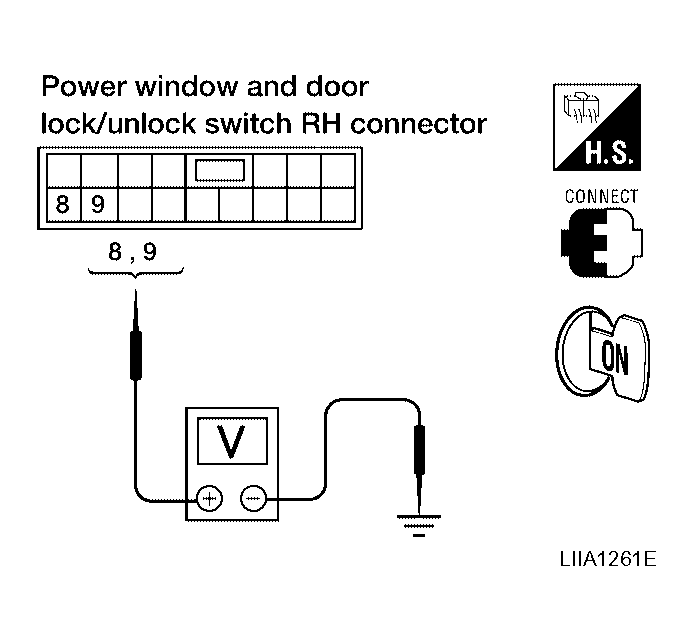

    Fig 1: Identifying Voltage Between Power Window And Door Lock/Unlock Switch RH Connector D105 Terminals 8, 9 And Ground
    G04162517Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    OK:  GO TO 2

    NG:  Replace power window and door lock/unlock switch RH. Refer to "FRONT DOOR ".

  2. CHECK FRONT POWER WINDOW MOTOR RH CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect front power window motor RH and power window and door lock/unlock switch RH.
    3. Check continuity between front power window switch RH connector D105 terminals 8, 9 and front power window motor RH connector D104 terminals 1, 2.

      8 - 1: Continuity should exist  .

      9 - 2: Continuity should exist  .

    OK or NG

    OK:  Replace front power window motor RH. Refer to "FRONT DOOR GLASS AND REGULATOR ".

    NG:  Repair or replace harness.

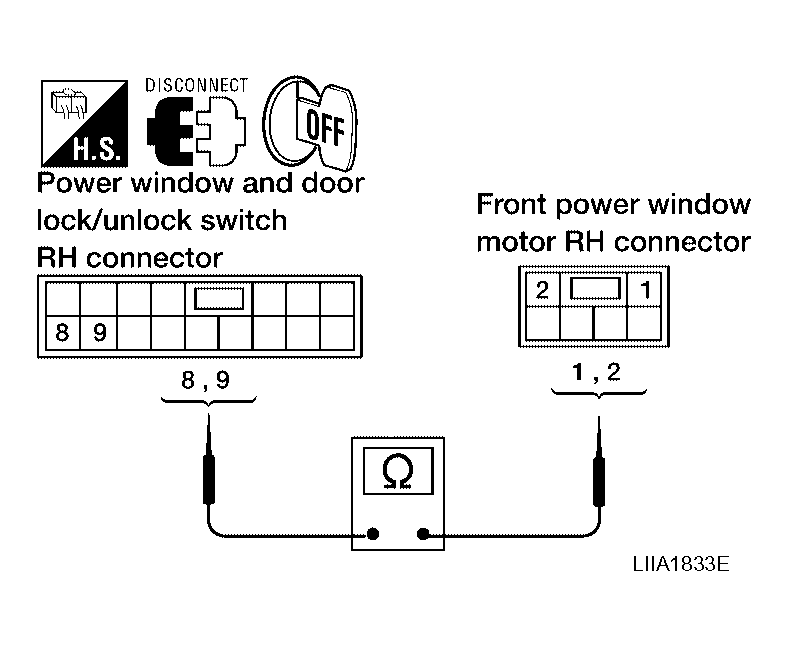

    Fig 2: Identifying Front Power Window Motor RH Circuit
    G04162518Courtesy of NISSAN MOTOR CO., U.S.A.
