Door Module Assembly: Removal

  1. Remove the front door speaker. Refer to "FRONT DOOR SPEAKER ".
  2. Remove the inside seal.
  3. Remove 2 hole covers over glass bolts.
  4. Temporarily reconnect the power window main switch and raise/lower the door window until the glass bolts can be seen.
    Fig 1: Connecting Power Window Main Switch
    G04162612Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove the glass bolts.
  6. Raise the front door glass and hold in place with suitable tool.
  7. Remove the bolts and the module assembly.
  8. Disconnect the harness connector for the module assembly, and unclip the harness from the back.

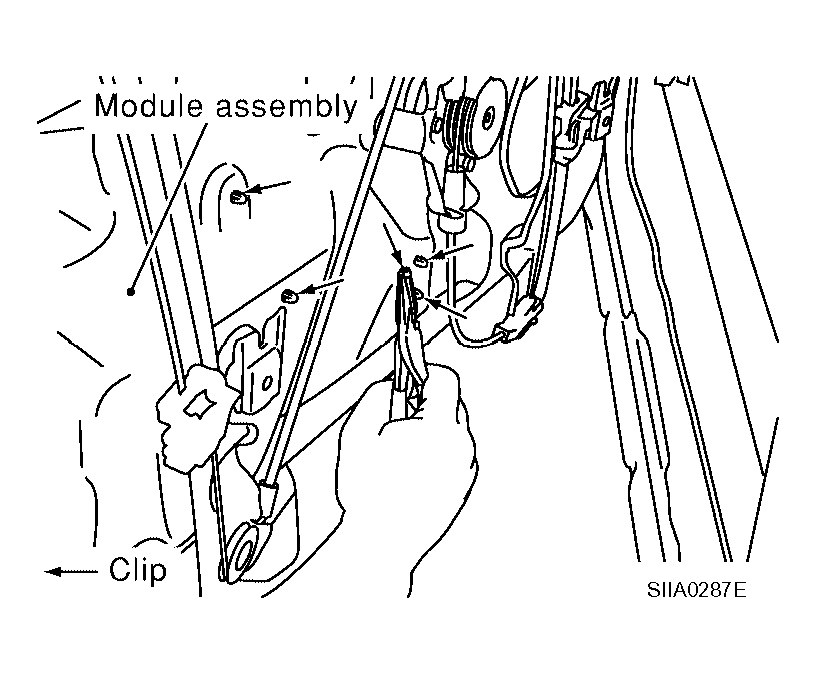

    Fig 2: Uncoupling Harness From Back
    G04162613Courtesy of NISSAN MOTOR CO., U.S.A.
