Example of Filling in Check Sheet When Initial Conditions Are Not Reproduced

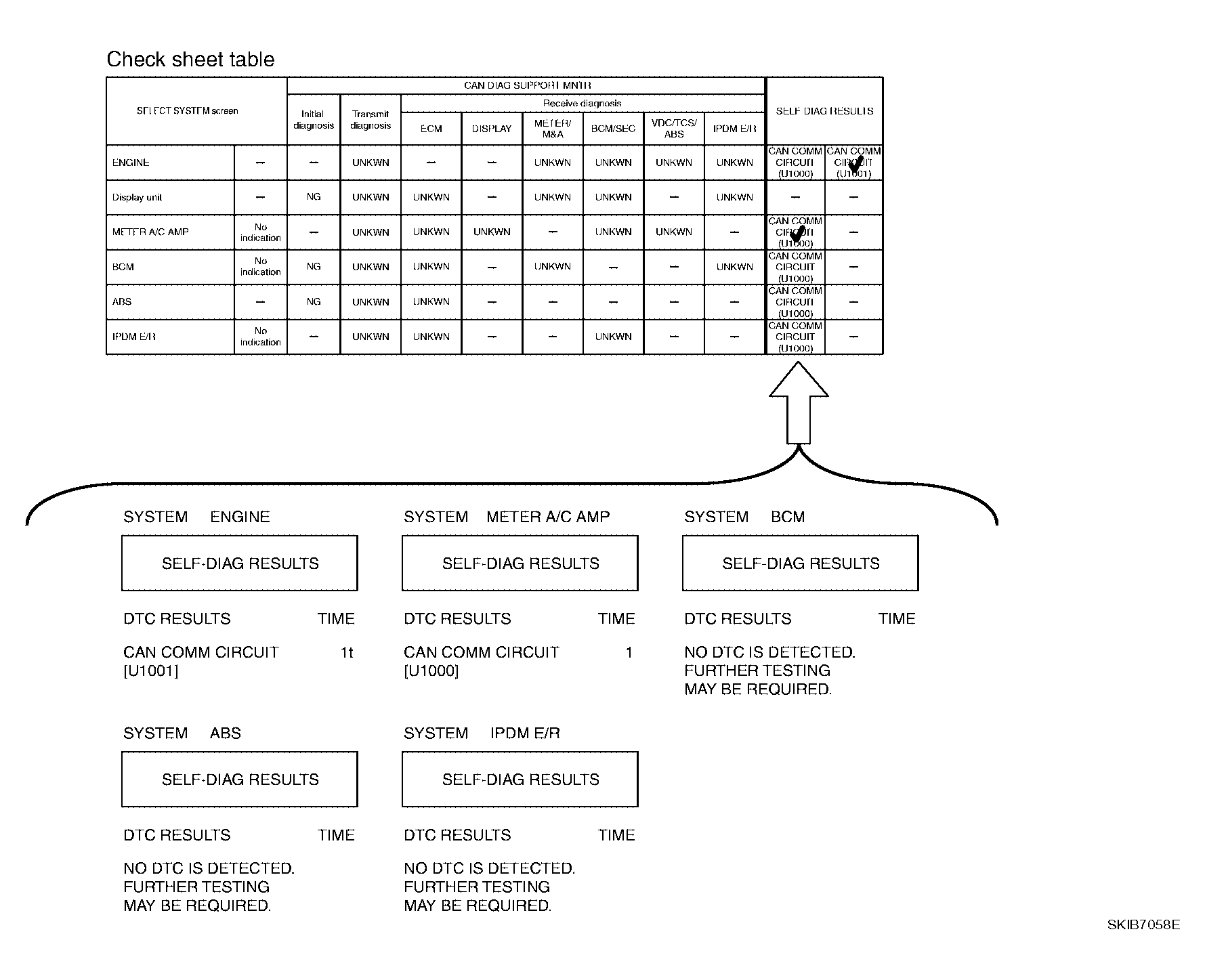

Fig 1: Identifying Fill In Check Sheet Procedure

Courtesy of NISSAN MOTOR CO., U.S.A.

See "SELF-DIAG RESULTS" of all units attached to the check sheet. If "CAN COMM CIRCUIT [U1000]" or "CAN COMM CIRCUIT [U1001]" is displayed, put a check mark to the applicable column of self-diagnostic results of the check sheet table.
NOTE:
- For "ENGINE", "CAN COMM CIRCUIT [U1001]" is displayed. Put a check mark to it.
- For "METER A/C AMP", "CAN COMM CIRCUIT [U1000]" is displayed. Put a check mark to it.
- For "BCM", "NO DTC IS DETECTED" is displayed. Do not put a check mark to it.
- For "ABS, "NO DTC IS DETECTED" is displayed. Do not put a check mark to it.
- For "IPDM E/R, "NO DTC IS DETECTED" is displayed. Do not put a check mark to it.

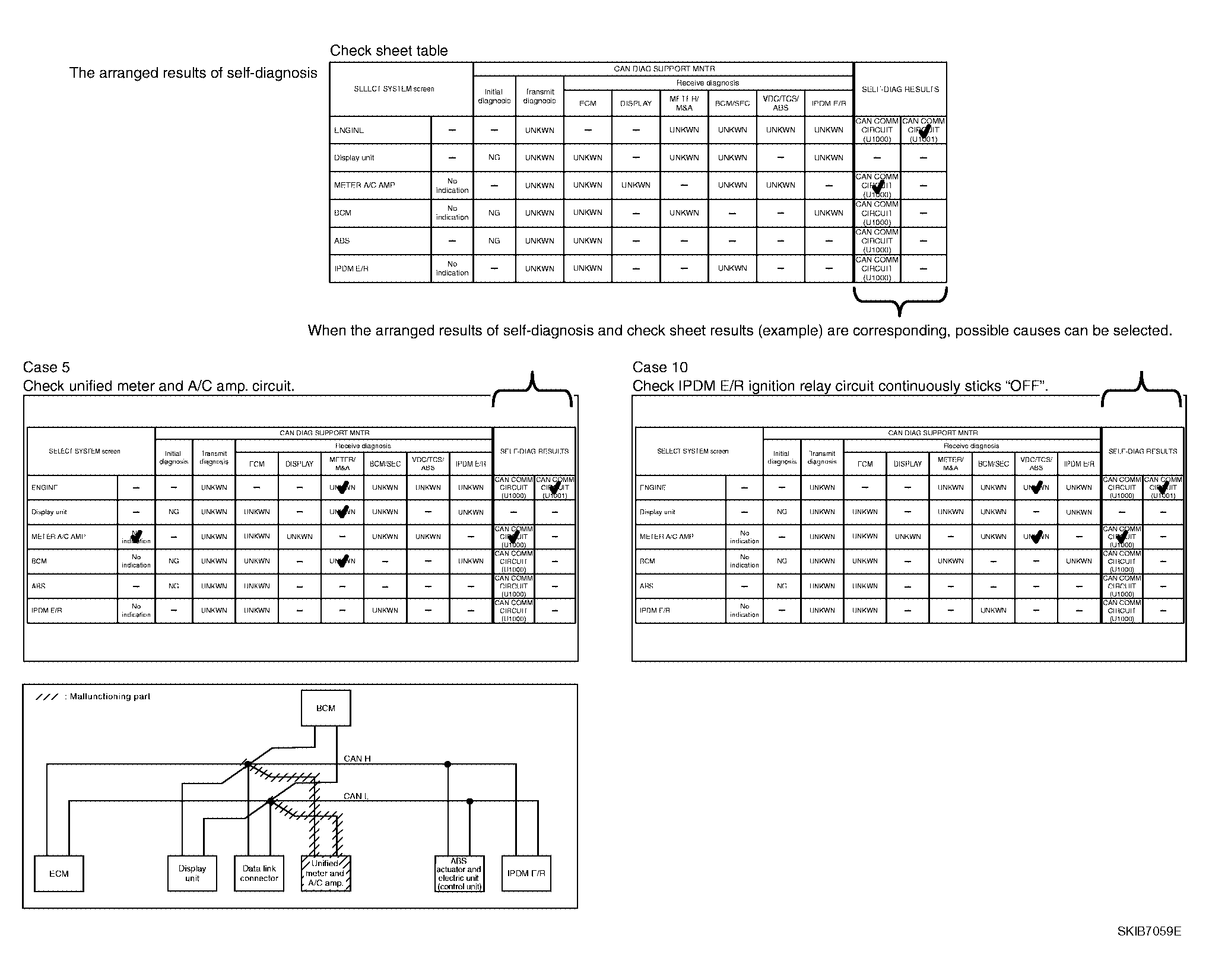

Fig 2: Identifying Arranged Results Of Self Diagnosis
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: There is a case that some of "CAN DIAG SUPPORT MNTR" and "SELF-DIAG RESULTS" are not needed for diagnosis. In the case, "UNKWN" and "CAN COMM CIRCUIT(U1000)" in "Check sheet results (example)" change to "-". Then, ignore check marks on the Check sheet table.
For the selected possible causes, it is expected that malfunctions have been found in the past.
