Removal and Installation: Notes

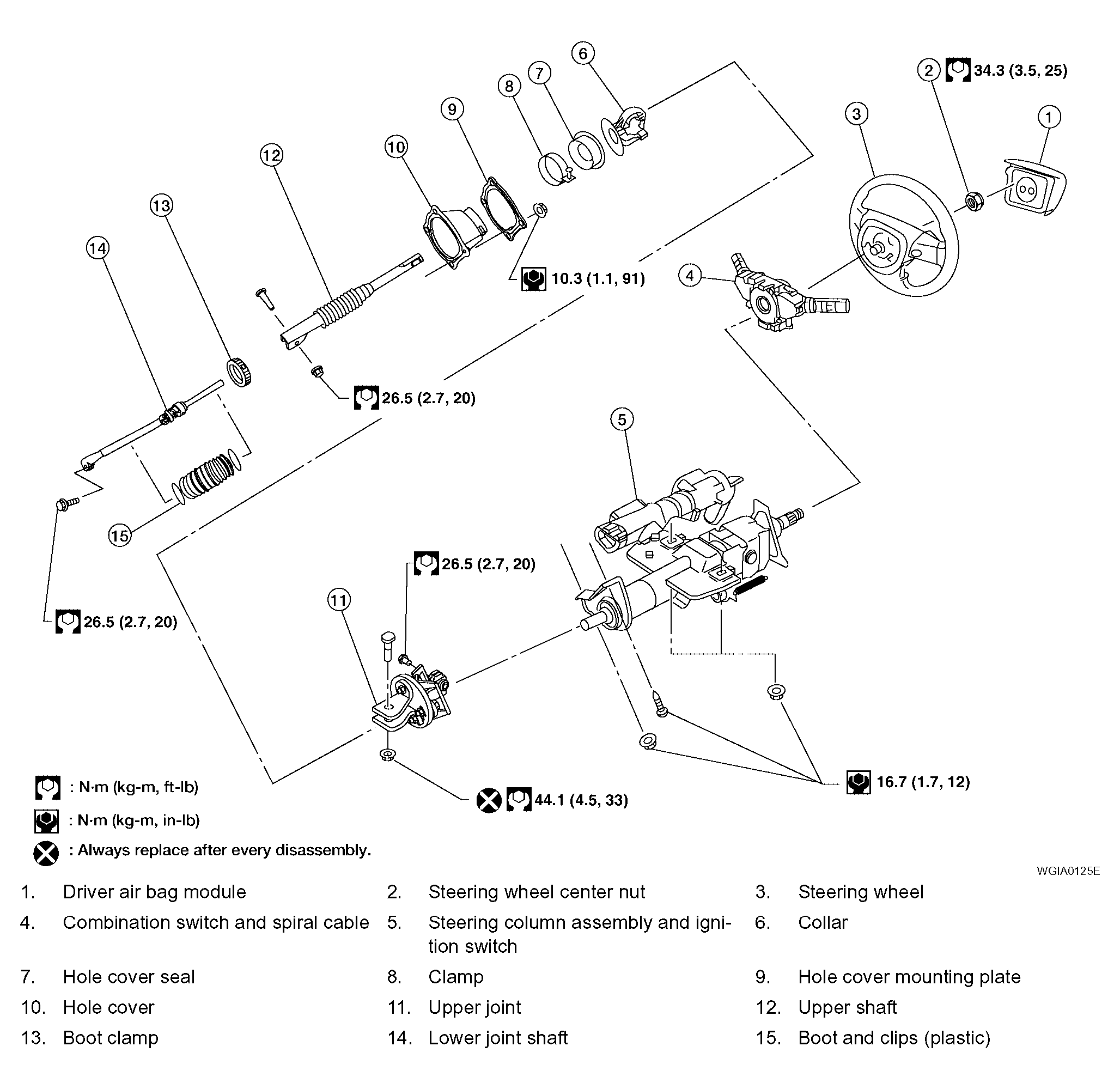

Fig 1: Steering Column Replacement Components With Torque Specifications
G04150724Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
  • Do not exert any axial load or impact to the steering column.
  • Do not move the steering gear while the steering column assembly is removed.
