Nissan-Datsun
>>
2006
>>
Frontier XE, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System - Component Testing (Qr)
>>
ASCD Indicator
>>
Wiring Diagram
ASCD Indicator: Wiring Diagram
For PG, go to
SYSTEM WIRING DIAGRAMS
.

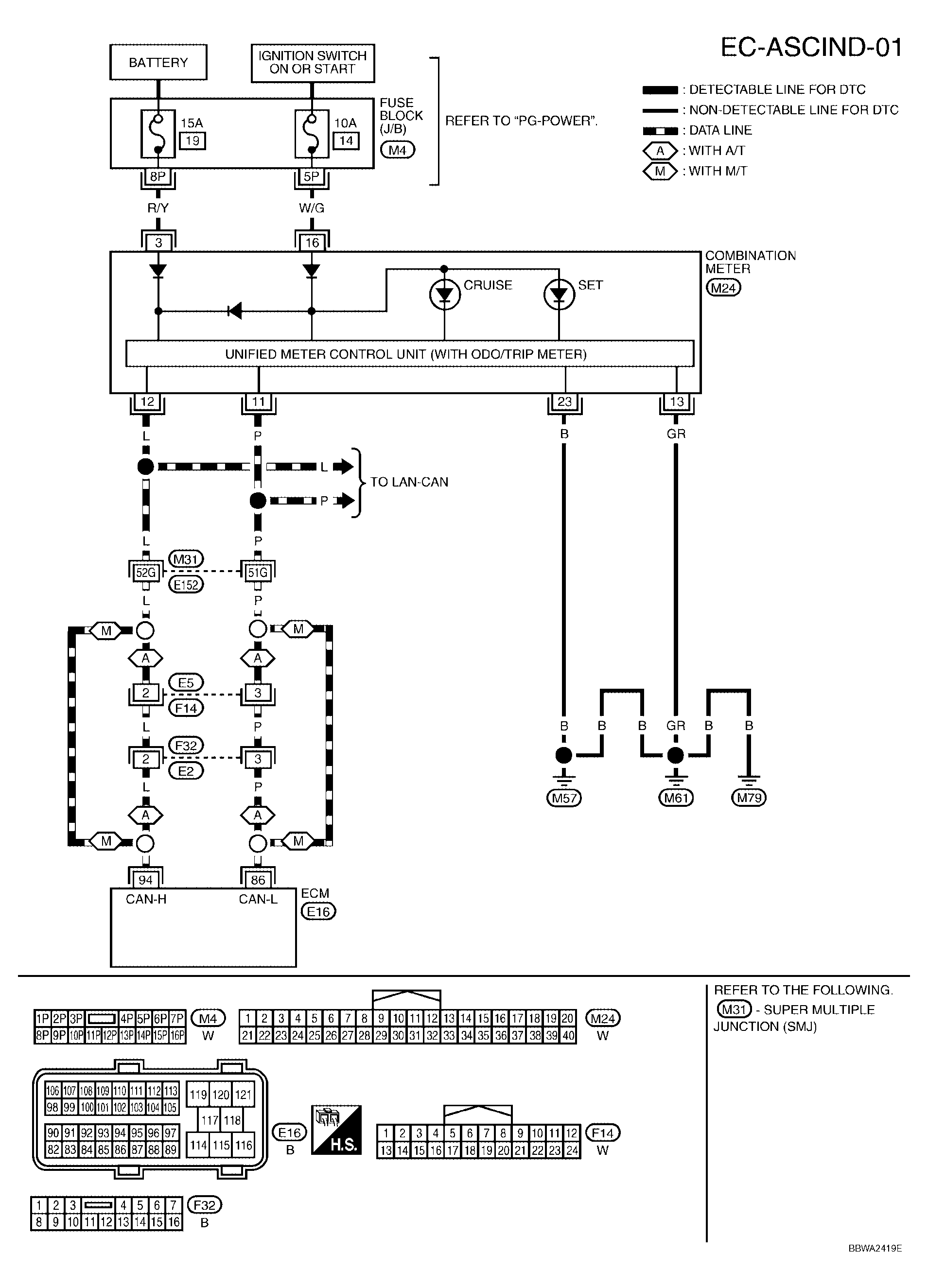

Fig 1: EC-ASCIND-01 - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
