Inspection After Disassembly: Clutch

Check the drive plate facings and driven plate for damage, cracks or other abnormality. If any abnormalities are found, replace with a new one.
Check the thickness of the drive plate facings and driven plate. Refer to "CLUTCH ".
CAUTION:
- Measure facing thickness at 3 points to take an average.
- Check all drive and driven plates.
- Check return spring for damage or deformation.
- Do not remove spring from plate.

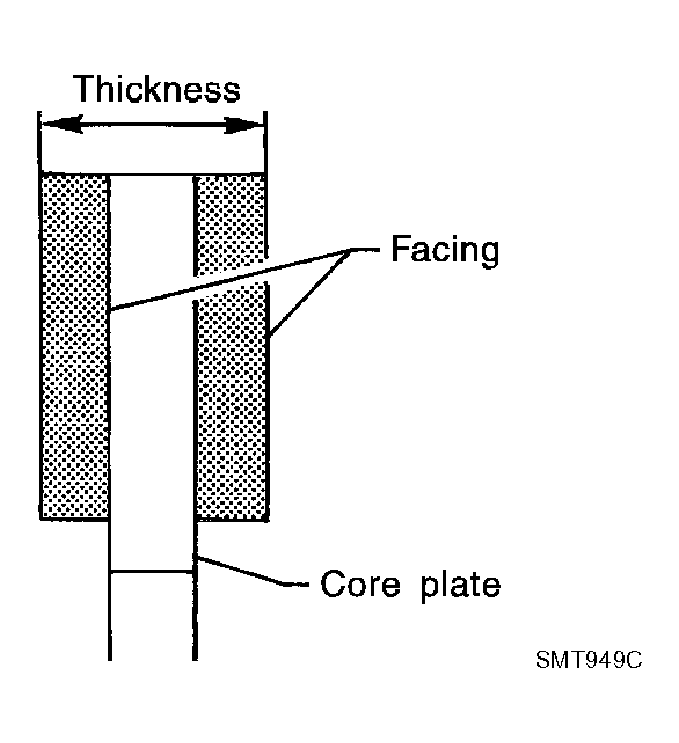

Fig 1: Checking Drive And Driven Plates
Courtesy of NISSAN MOTOR CO., U.S.A.
