Cross-section View
Cross-section View

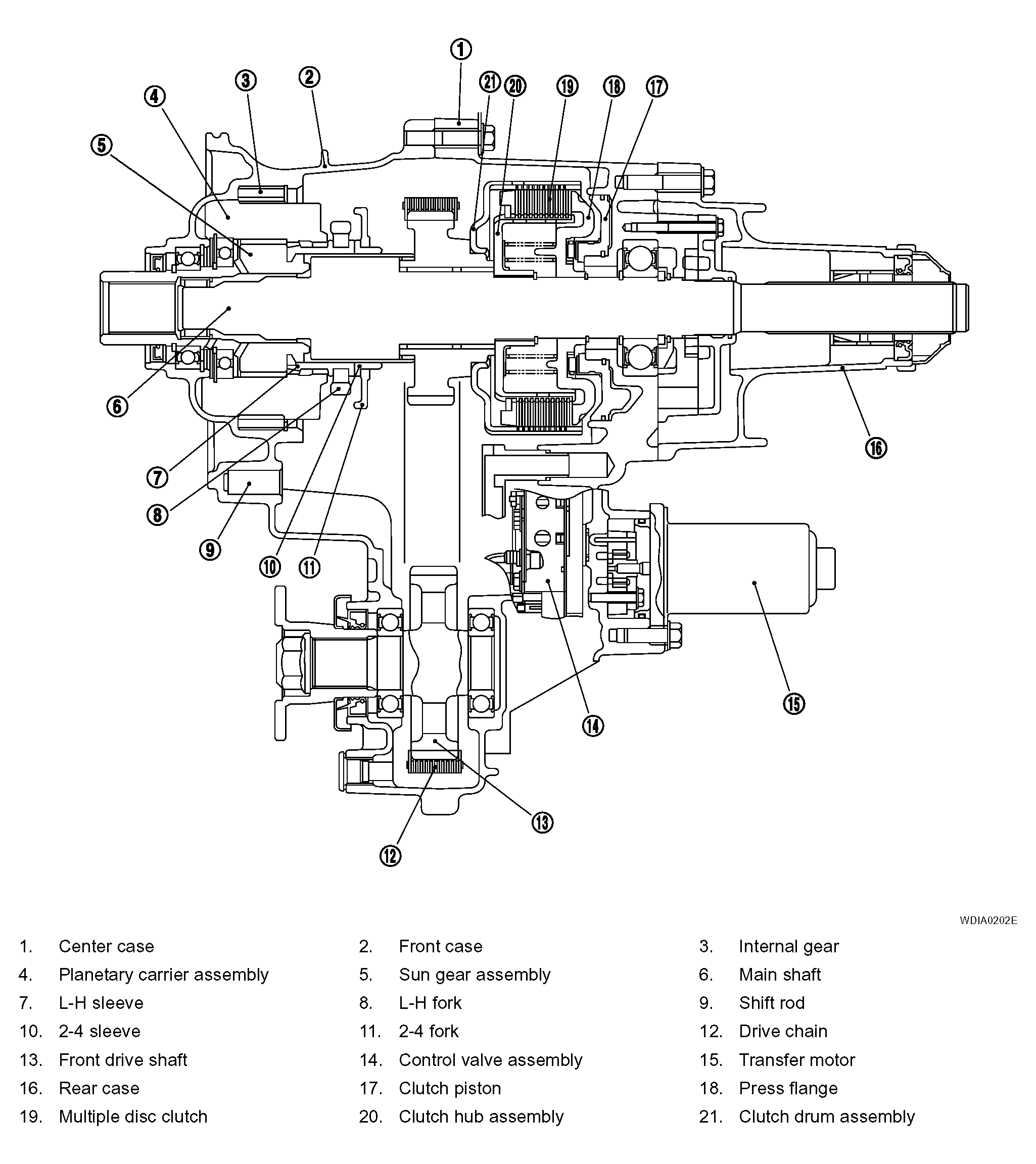

Fig 1: Cross-Section View Of All-Mode 4Wd System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
