Home
>>
Nissan-Datsun
>>
2006
>>
Altima SE-R, Standard
>>
Repair and Diagnosis
>>
Transmission
>>
Clutch
>>
Clutch Pedal
>>
Components
Clutch Pedal: Components

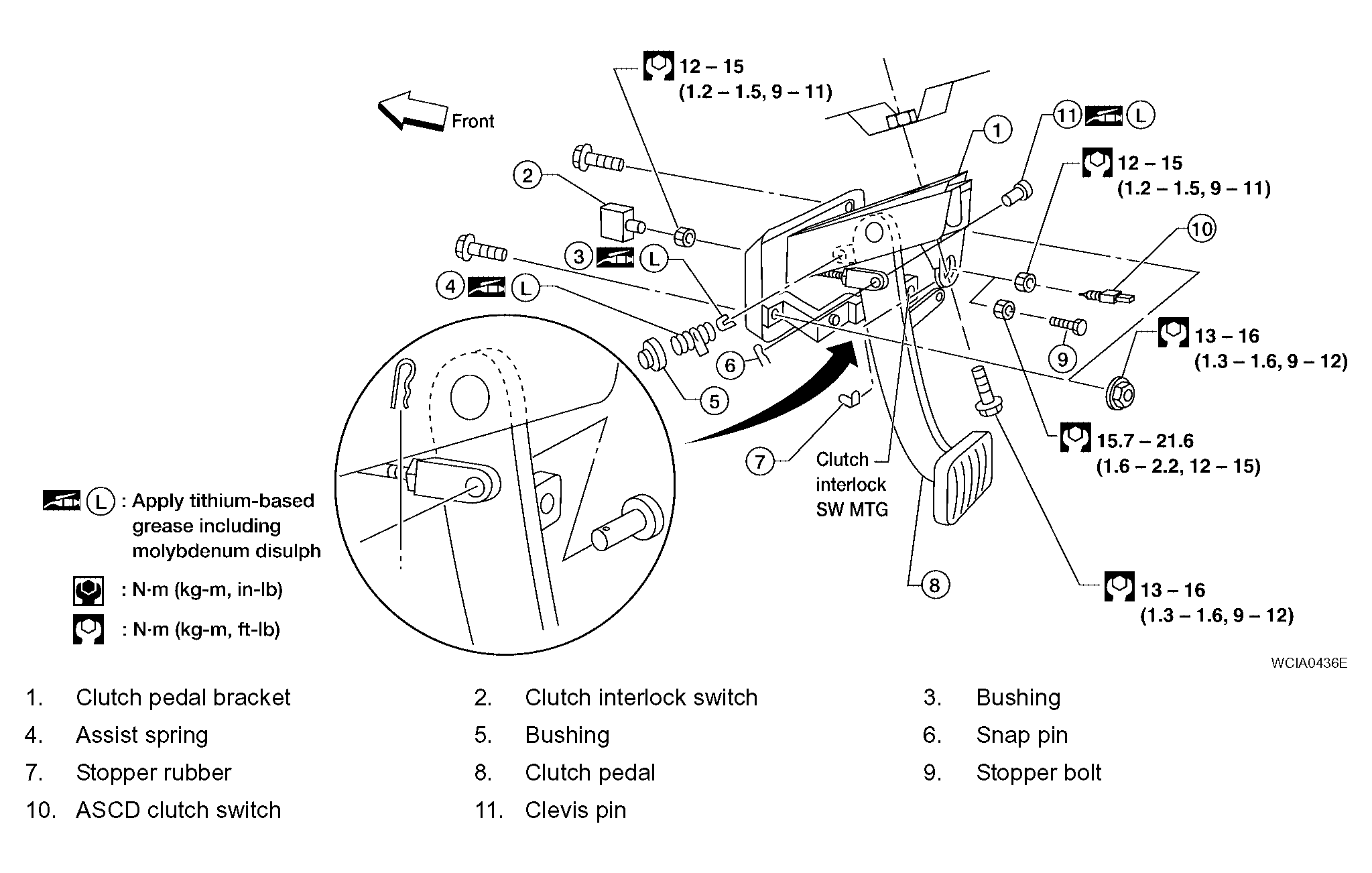

Fig 1: Removal And Installation Of Clutch Pedal (With Specifications)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
