Drive Shaft
DRIVE SHAFT SERVICE DATA SPECIFICATIONS
| Applied model | QR25DE | VQ35DE | ||
|---|---|---|---|---|
| Grease | Quality | NISSAN Genuine Grease or equivalent | ||
| Capacity g (oz) | Wheel side (BJ type) | 115 - 135 (4.06 - 4.76) | ||
| Wheel side (SFJ type) | 180 - 200 (6.35 - 7.05) | |||
| Wheel side | 115 - 135 (4.06 - 4.76) | 145 - 165 (5.11 - 5.82) | ||

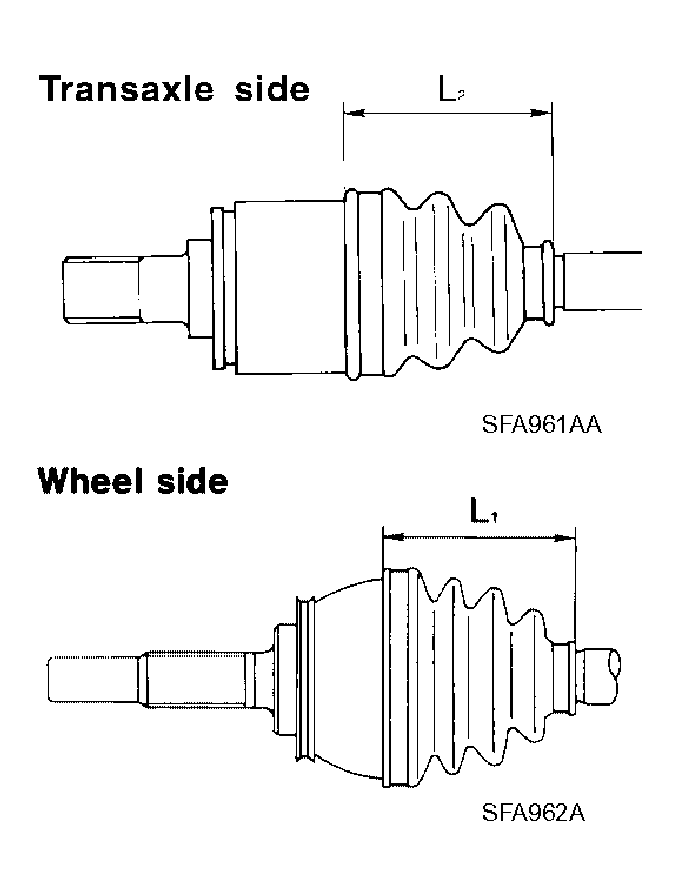

| Boot length mm (in) | Transaxle side "L2" | 96.9 - 99.7 (3.81 - 3.93) | 95.1 - 97.9 mm (3.74 - 3.85 in) | |
| Wheel side "L1" | 114.3 - 117.1 (4.50 - 4.61) | 126.7 - 129.9 (4.99 - 5.11) | ||
