Special Service Tools

The actual shapes of Kent-Moore tools may differ from those of special service tools shown in SPECIAL SERVICE TOOLS  .

Tool number (Kent-Moore No.) Tool name		Description
HT72520000 (J-25730-A) Ball joint remover :	Courtesy of NISSAN MOTOR CO., U.S.A.	Removing tie-rod outer end and lower ball joint

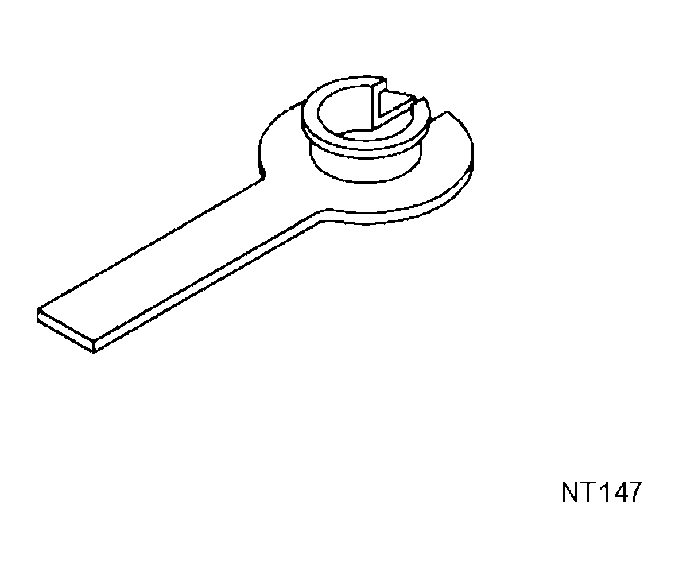

KV38106700 (J-34296) KV38106800 (J-34297) Differential side oil seal protector :	Courtesy of NISSAN MOTOR CO., U.S.A.	Installing drive shaft LH: KV38106700 (J34296) RH: KV38106800 (J34297)
KV40107300 (-) Boot Band crimping tool :	Courtesy of NISSAN MOTOR CO., U.S.A.	Installing boot bands

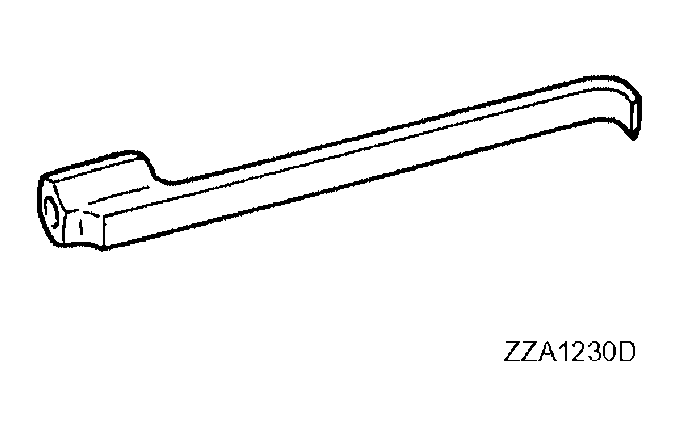

KV40107500 (-) Drive shaft attachment :	Courtesy of NISSAN MOTOR CO., U.S.A.	Removing drive shaft (VQ35DE)
